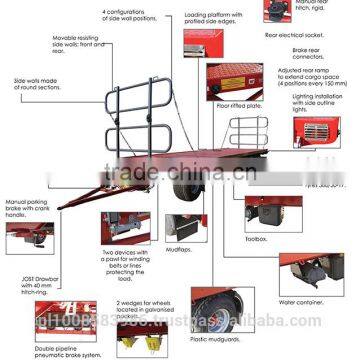

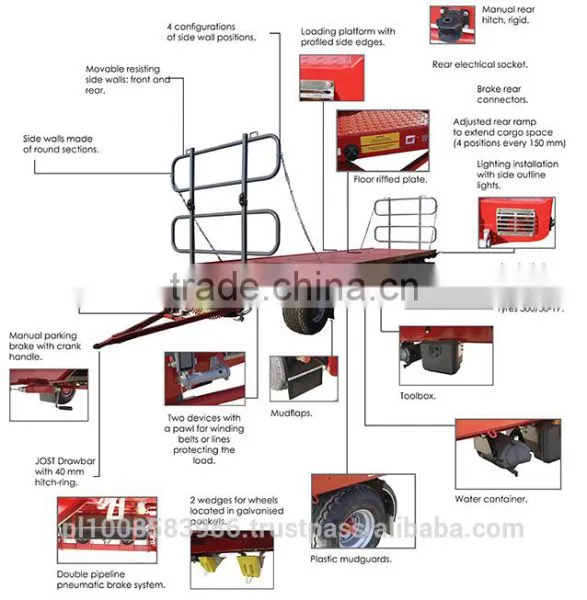

The largest of the Metal-Fach bale trailers. The maximum load capacity is 18 tonnes, which is 36 bales in 2 rows. The rear frame can be extended by 4 positions in 150 mm steps to increase the load capacity. The platform has two movable side walls made of pipe sections that can be set up in 4 different configurations. The trailer loading floor has profiled side rims. The loading floor panels is made of durable riffled sheets. The trailer features a rear rotary hitch, and a tail electrical system plug and brake port cluster. The ride and operation are superb thanks to the parabolic spring suspension system. The T020 platform is a 3-axle trailer with a turntable. It comes complete with a JOST tow bar with a 40 mm hitch ring. The trailer has all the required systems for safe transport, loading and unloading. It comes with a hand-operated parking brake based on a crank, a pneumatic dual-line braking system, 2 wheel chocks, stowed in zinc-plated holders, and two ratchets for cargo straps/ropes. Note the other feature-rich accessories: the toolbox, the water tank, the mudguards, and the plastic wheel wings.
- THE LARGEST: This is Metal-Fach’s largest bale trailer. The maximum load capacity is 18 tonnes, which is 36 bales in 2 rows.
- AS REQUESTED: The platform has two movable side walls made of pipe sections that can be set up in 4 different configurations
- MAKE IT EVEN BIGGER: The rear frame can be extended by 4 positions in 150 mm steps to increase the load capacity.
- PRECISELY BUILT: The trailer featured profiled side rims for securing the bales, and the loading space floor is made of durable riffled sheets
- CONVENIENT: The ride and operation are superb thanks to the parabolic spring suspension system.
- SAFE: The vehicle comes with a hand-operated parking brake based on a crank, a pneumatic dual-line braking system, 2 wheel chocks, stowed in zinc-plated holders, and two ratchets for cargo straps/ropes.
- FEATURE-RICH ACCESSORIES: The trailer comes with a toolbox, a water tank, mudguards, and plastic wheel wings
| Item | Type | T020 |
| 1 | Load capacity [kg] | 17750 |
| 2 | Gross combined weight [kg] | 21500 |
| 3 | Weight [kg] | 3750 |
| 4 | Total length /width / height [mm] | 11 945-12 545/2500/3180 |
| 5 | Cargo space length/width/height [mm] | 9810-10 410/ 2340 /2030 |
| 6 | Cargo space height from ground [mm] | 1150 |
| 7 | Body capacity [bale number] | 36 |
| 8 | Body extension range [mm] | 600 |
| 10 | Support Side walls | V |
| 11 | Parking brake | V |
| 12 | Hydraulic brake | optional |
| 13 | Wheel track [mm] | 1900 |
| 14 | 2 wedges for wheels located in galvanised pockets | V |
| 15 | Tyres | 500/50-17 |
| 16 | Drawbar eye [mm] | 40/50 |
| 17 | Electrical systems with outlets for second trailer | V |
| 18 | Two pipeline brake system with outlets for second trailer | V |
| 19 | Side wall supporting chains | V |
| 20 | Two-component chemo-hardenable painting materials of high durability and UV resistance | V |
| 21 | Cataphoretic protection of metal surfaces | V |
| 22 | Spare wheel carrier | optional |
| Legend: V standard | ||
