Help CenterDouble Axle Trailers T711
Related Products
Specifications

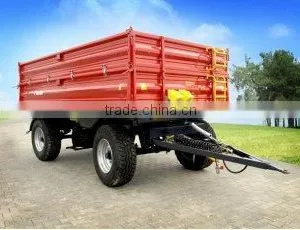

Double axle trailers T711 (1/2/3), loading capacity of 8, 10, 12 T have a light and tough construction based on closed profiles.The top and bottom frames are made of S355 (18G2A) steel which guarantees reliability and long life of the equipment. It is characterized by having the flooring low down to the ground which facilitates loading. The walls of the loading box are made with Fuhrmann profiles. They ensure stiffness and tightness or the box. The loading box is based on a system of hinges which allow it to tip in three different ways. Additionally in the back wall there is a damper and a pipe, intended for the unloading of pourable materials. Every trailer comes with wheel stops.
By request the trailer can be equipped with a spare tire mounted under the frame, a rear coupler and a top frame with cover. The trailer may also serve as a platform after removal of walls and posts. It is excellent for moving small amounts of straw bales, boxes or pallets. The floor of the T711 is made out of 4mm S355 steel painted with a high quality enamel, which guarantees both resistance to deforming and corrosion. The trailer is made to EU directives and has a CE certificate. The pneumatic one-hose brake is standard on this model. In order to make the everyday use easier the trailer has a centrally operated system of locking the walls near the flooring. The installed ladder makes the everyday use easier. In order to stiffen the construction after loading there is a stabilizing cable which is released by a lever mounted on the sidewall. As a safety precaution to protect the technician during servicing the support of the loading box is installed.
| Type | Unit of Measure | T711/1 | T711/2 | T711/3 |
| Loading capacity | kg | 8000 | 10000 | 12000 |
| Trailer weight | kg | 3800 | 3900 | 4000 |
| Inside length of loading box | mm | 4510 | 4510 | 4510 |
| Inside width of loading box | mm | 2410 | 2410 | 2410 |
| Height of box walls | mm | 500+500 | 600+500 | 600+800 |
| Height of box walls with addition | mm | 1000 | 1100 | 1400 |
Distance of flooring from ground |
mm | 1360 | 1360 | 1360 |
| Loading volume with addition | m3 | 5,4/10,8 | 6,5/12 | 6,5/15,2 |
| Length | mm | 6480 | 6480 | 6480 |
| Width | mm | 2550 | 2550 | 2550 |
| Height | mm | 1785(2285) | 1885(2385) | 1885(2685) |
| Tires | - | 14,5/80-1812PR | 385/65R22,5 | 385/65R22,5 |
| Suspension frame | - | ladder, closed profile | ladder, closed profile | ladder, closed profile |
| Hitch | - | triangular with height adjustment | triangular with height adjustment | triangular with height adjustment |
| Hitch tie | - | Ø40 | Ø40 | Ø40 |
| Maximum speed | km/hr | 40 | 40 | 40 |
| Tipping | - | three ways | three ways | three ways |
| Brake system | - | 1 hose/2 hose | 1 hose/2 hose | 1 hose/2 hose |
| Lights | - | yes | yes | yes |
| Hand brake | - | yes | yes | yes |
| Wheel chocks with pocket | - | yes | yes | yes |
Please visit .pl for more information.
