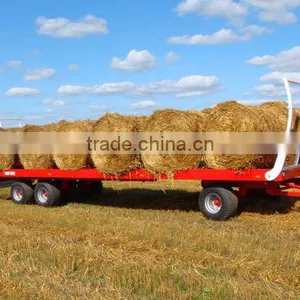

Trailer for the transport of bales.The T 009 trailer with the capacity of 11.3 T is intended for the transport of straw, hay and silage bales. The frame construction is made out of very durable profiles made out of S355 (18G2A) steel. The flooring is made out of standard 3 mm sheet metal, type S255, which ensures a long life without deforming. The platform is secured by a front and back wall which is oval, matching the shape of bales. This makes it more difficult to damage the load. On the sides there are side guards made out of closed steel posts which do not tear the film on bales. The ability of adjusting the back side of the frame allows for the increase of loading space by 10%. The suspension has 3 axles with leaf springs and wide tires which allows movement along marshy ground. The entire construction is painted with a high quality enamel which ensures a long, rust free life of the trailer.
| Type | Unit of Measure | T009 |
| Capacity | kg | 11300 |
| Weight of trailer | kg | 3700 |
| Allowable Total weight | kg | 15000 |
Maximum number of bales per level: |
||
| Without extending the back frame | pcs. | 16 |
| With the back frame extended | pcs. | 18 |
| Equipment Dimensions: | ||
| Length of trailer | mm | 9700 |
| Length of loading space without extending the back frame | mm | 10250 |
| Length of loading space with the back frame extended | mm | 11050 |
| Height of frame | mm | 840 |
| Total height | mm | 2820 |
| Maximum height of front wall | mm | 1700 |
| Maximum height of back wall |
mm | 1700 |
| Total width | mm | 2500 |
| Tires | - | 400/60-15.5 14 PR |
| Wheel stops | - | 2 |
| Brake system | - | pneumatic one hose |
| Crank operated had brake | - | back axles |
| Circumference of the hitch | Ø | 40 |
| Range of adjustment of hitch | mm | 200-1200 |
| Suspension | - | 3 axles |
| Springs | - | 7 leafed |
| Mounting of front axle | - | on a swivel |
| Back axle | - | double wheel system |
