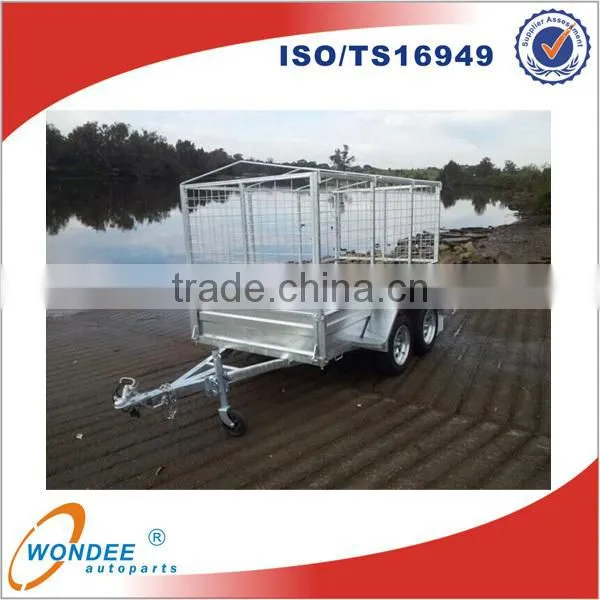

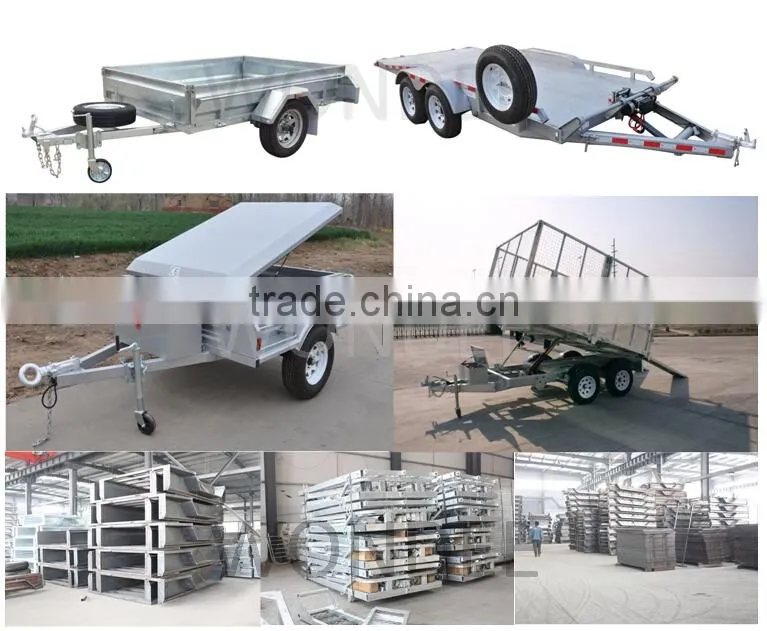

Hot Dipped Galvanized 8'x5' Tandem Axle Cage Box Tipping Trailer

8'x5' Tandem Axle Trailer Main Information

1. The form of trailer circuitry path: Connected with 7 core spiral cable swift connector

2. Postpositive tailight, auto-circuitry of the whole trailer.

3. Form of tipping: back tipping,three way tipping. Provide with fuel tank.

4. Form of air path connection: connected with spiral tube

5. Form of trailer oil pipe: nipple.

6. Surface treatment: Pickling phosphating

7. Surface spray coating: antirusting paint, finishing paint .

8. The process of trailer welding: carbon dioxide MIG welding.

9. The form of trailer transportation: parts and components, flexible packing with the box plate

8'x5' Tandem Axle Trailer Specification

Model Size

Overall Dimension
(mm)

Capacity

Specification

Surface Treatment

6*4

1800x1200x300,cage 600mm

600kgs

Single axle/ Led tail light/With jack/
Without braker/Australian type conector

Hot dip galvanized

7*4

2100x1200x300,cage 600mm

750kgs

Single axle/ Led tail light/With jack/
Without braker/Australian type conector

8*4

2400x1200x300,cage 600mm

750kgs

Single axle/ Led tail light/With jack/
Without braker/Australian type conector

8*5

2400x1500x300,cage 600mm

1500kgs

Double axle/ Led tail light/With jack/
With mechanical  braker/Australian type conector

7*5

2100x1500x300,cage 1000mm

750kgs

Single axle/ Led tail light/With jack/
Australian type conector

7*4

2150x1240x300

750kgs

Single axle/ Led tail light/With jack/Australian type conector

8*4

2460x1240x300

750kgs

Single axle/ Led tail light/Australian type conector

8*5

2460x 1540x300

1500kgs

Doubel axle/ Led tail light/Australian type conector

8*5

3000*1500*400

2000kgs

Doubel axle/ Led tail light/Australian type conector
