Top Quality Mini Excavator With CE

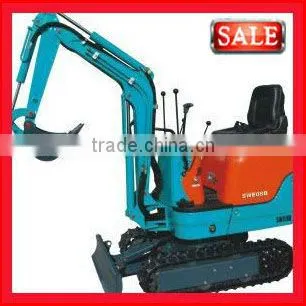

Name: Top Quality Mini Excavator With CE
Brand: Sunward
SKU: 139059705
Availability: InStock

US$ 15,000 - 15,900 MOQ: 1 Set

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

Sunward

Model Number:

SWE08B

Henan Dexing Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Changsha or Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name Sunward

Model Number SWE08B

Condition New

Moving Type Crawler Excavator

Operating Weight 910kg

Bucket capacity 0.02m3

Maximum Digging Height 2690mm

Maximum Digging Depth 1510mm

Machine Weight 910kg

Max Digging Radius 2800mm

Certification CE certificate

Specifications

Mini Excavator with CE
Yanmar or Perkins engine
EU Stage 2
Super performance
One year warranty

Top quality Mini Excavator with CE

Features

Mini, flexible machine, with super performance

ENGINE
The YANMAR 2TNV70 disel engine deliverys superior horsepower and performance.

FAST AND EASY MAINTENANCE
A full-open bonnet makes daily makes daily inspection and maintenance of essential components a snap.

SPACIOUS OPERATOR'S AREA
You will find it more comfortable after the operating.

TWO-SPEED TRAVEL
Travel in high or low speed.

EXTENDABLE CHASSIS
To enable passage through narrow spaces such as doorways and gates.

Main Parameters
Overall dimension:L x W x H	2740 x 700 x 1650 (mm)
Operating weight:rubber track	910kg
Standard bucket capacity	0.022m3
Bucket digging force	8.5kN
Dipper digging force	5.8kN
Max. traction force	9.4kN
Swing angle	53° / 73°
Travelling speed	3.6 / 1.8 (km/h)
Max. gradeability	30°
Grounding pressure	24.5kPa
Swing speed	9.9rpm
Engine brand	YANMAR 2TNV70
Engine type	2-cycle, water-cooled, direct injection
Engine displacement	0.57L
Max. power/rpm	7.2kW / 2400rpm
Fuel tank capacity	10L
Main pump
Type	2 Gear Pumps
Displacement	2 × 11 L/min
Main overflow valve pressure	16MPa
Hydraulic oil tank capacity	9.5L
WORKING RANGE
A) Max. digging height	2690mm
B) Max. dumping height	1965mm
C) Max. digging depth	1510mm
D) Max. vertical digging depth	1108mm
E) Max. digging radius	2800mm
F) Max. reaching level at ground	2684mm
G) Max. llifting height of blade	190mm
H) Max. digging depth of blade	190mm
R) Min. swing radius	1179mm
Length & Width of blade	700 x 180 (mm)
TRANSPORTATION DIMENSION
A) Track base	900mm
B) Crawler length	1224mm
C) Ground clearance of platform	417mm
D) Tail swing radius	790mm
E) Chassis width	700 / 900 (mm)
F) Standard width of crawler	180mm
G) Min. ground clearance	141mm
H) Crawler heigh	330mm
I) Overall length	2740mm
J) Overall heigh	1650mm
K) Overall width	700mm
