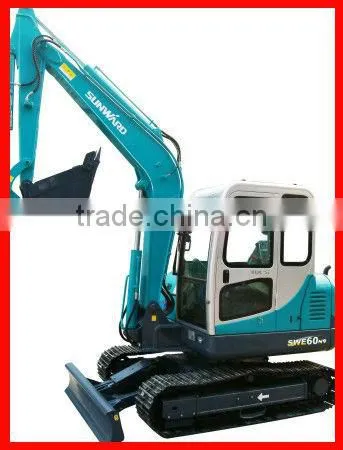

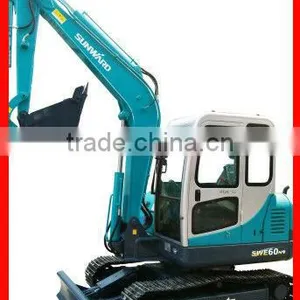

6T Small Compact Excavator SWE60

Name: 6T Small Compact Excavator SWE60
Brand: Sunward
SKU: 139059709
Availability: InStock

US$ 26,500 - 45,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

Sunward

Model Number:

SWE60

Henan Dexing Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Changsha or Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name Sunward

Model Number SWE60

Condition New

Moving Type Crawler Excavator

Operating Weight 5950kg

Bucket capacity 0.20m3

Maximum Digging Height 5600mm

Maximum Digging Depth 3705mm

Machine Weight 5950kg

Max Digging Radius 6140mm

Certification CE

After-sales Service Provided Overseas service center available

Specifications

small compact excavator
Yanmar engine
Tier 3/Stage III emissions regulation
European sales and service center
good price

Hot selling 6.0T small compact excavator SWE60

• Powerful And Highly Reliable

—Powered with best in class engine and hydraulic system.

• Wide Work Range

—Swing Boom ensures flexible operation and wide work range.

• Safe To Operate

—Equipped with ROPS & FOPS Cab.

• Confortable Cab

—Deluxe suspension seat reduces operator's fatiuge.

Main Parameters
Overall dimension:L x W x H	5985×1900×2618 (mm)
Operating weight:steel track	5.95 T
Standard bucket capacity	0.2m3
Bucket digging force	39.8kN
Dipper digging force	27.2kN
Max. traction force	42.3kN
Travelling speed(Max. / Min.)	3.93 / 2.75 (km/h)
Max. gradeability	35°
Grounding pressure	34.5kPa
Swing speed	10.2rpm
Engine brand	YANMAR 4TNV94L-SFN
Engine type	4-cylinder, 4 stroke, water-cooled
Engine displacement	3.054L
Max. power/rpm	35.5kW / 2200rpm
Fuel tank	110L
Main Pump
Type	2 Variable pumps, 1 Gear pump
Max. pump flow	2×59+2 L/min
Main overflow valve pressure	24.5 / 20 (MPa)
Hydraulic oil tank	95L
WORKING RANGE
A. Max. digging height	5600mm
B. Max. dumping height	3990mm
C. Max. digging depth	3705mm
D. Max. vertical digging depth	3035mm
E. Max. digging radius	6140mm
F. Max. reaching level at ground	6005mm
G. Max. llifting height of blade	330mm
H. Max. digging depth of blade	330mm
R. Min. swing radius	2520mm
Length & Width of blade	1900mm×340mm
TRANSPORTATION DIMENSION
A. Roller base	1965mm
B. Crawler length	2495mm
C. Ground clearance of platform	700mm
D. Tail swing radius	1560mm
E. Chassis width	1880mm
F. Standard width of crawler	400mm
G. Min. ground clearance	318mm
H. Max. ground clearance of crawler	594mm
I. Overall length	5985mm
J. Overall height	2618mm
K. Overall width	1900mm
