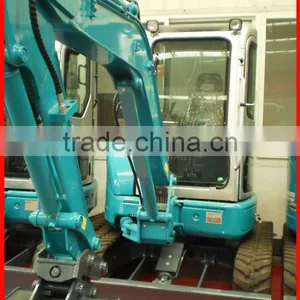

Hot selling 4.0T small compact excavator SWE40
USD $26,500 - $33,500
/ Set
1 Set(Min.Order)
- 2000 Set / Sets per Month
- Changsha or Qingdao
- T/T
You May Like
Product Details
Place of Origin: | Hunan, China | Brand Name: | Sunward | Model Number: | SWE40 |
Condition: | New | Moving Type: | Crawler Excavator | Operating Weight: | 4130kg |
Bucket capacity: | 0.11m3 | Maximum Digging Height: | 5002mm | Maximum Digging Depth: | 2850mm |
Machine Weight: | 4130kg | Max Digging Radius: | 5441mm | Certification: | CE |
After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
small compact excavatorKubota engine
Tier 3/Stage III emissions regulation
European sales and service center
good price
Hot selling 4.0T small compact excavator SWE40
Mini, flexible machine with exellent performance
• Powerful And Highly Reliable —Powered with best in class engine and hydraulic system. • Zero Tail Swing • Highly Efficient —With lager capacity bucket, and far reaching & deep digging arm and boom. • Able To Operate In Confined Area —Mini size allows to work in small and confined area —Extendable chassis allows to work in narrow space. • Easy To Maintain —Easy to access to engine components for regular maintenance. |
Main Parameters | |
Overall dimension:L x W x H | 4950 x 1745 x 2540 (mm) |
Operating weight:rubber track / steel track | 4130 / 4140 (kg) |
Standard bucket capacity | 0.11m3 |
Bucket digging force | 26.4kN |
Dipper digging force | 20.9kN |
Max. traction force | 33.5kN |
Swing angle(Right / Left) | 52° / 74° |
Travelling speed(Max. / Min.) | 5 / 2.9 (km/h) |
Max. gradeability | 30° |
Grounding pressure | 36kPa |
Swing speed | 10.5rpm |
Engine brand | KUBOTA D1803-M-DI-E3B-SWD-1 |
Engine type | 3-cylinder, 4 stroke, water-cooled |
Engine displacement | 1.826L |
Max. power/rpm | 23.8kw / 2300rpm |
Fuel tank | 40L |
Main Pump | |
Type | 2 Variable pumps, 1 Gear pump |
Max. pump flow | 2 x 37 + 26 (L/min) |
Main overflow valve pressure | 23.5 / 20 (Mpa) |
Hydraulic oil tank | 43L |
WORKING RANGE | |
A. Max. digging height | 5002mm |
B. Max. dumping height | 3502mm |
C. Max. digging depth | 2850mm |
D. Max. vertical digging depth | 2593mm |
E. Max. digging radius | 5441mm |
F. Max. reaching level at ground | 5302mm |
G. Max. llifting height of blade | 345mm |
H. Max. digging depth of blade | 370mm |
R. Min. swing radius | 2302mm |
Length & Width of blade | 1740 x 349 (mm) |
TRANSPORTATION DIMENSION | |
A. Roller base | 1650mm |
B. Crawler length | 2143mm |
C. Ground clearance of platform | 567mm |
D. Tail swing radius | 860mm |
E. Chassis width | 1740mm |
F. Standard width of crawler | 300mm |
G. Min. ground clearance | 262mm |
H. Max. ground clearance of crawler | 522mm |
I. Overall length | 4950mm |
I. Overall length | 2540mm |
K. Overall width | 1745mm |
