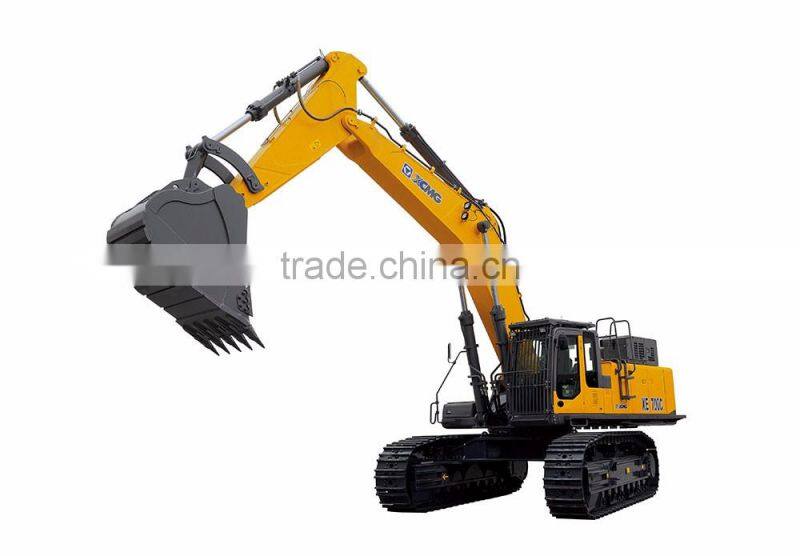

Supplying Competitive Price XCMG XE700C Excavator
Save Your Money here.
This machine has adopted an energy-efficient engine with the emissions in accordance with the Tier 3 standard and the engine fuel and intake systems use the three-stage and four-stage filtration respectively.
Its key hydraulic components are all imported and its hydraulic system is a mature and reliable negative flow control system; an independently researched and developed electric control system is applied to realize perfect matching of the engine and the main pump and simultaneously reduce the complete fuel consumption. Its GPS remote monitoring system equipped can achieve real-time control of the complete running state and fault information. The reinforced chassis adopts a modular design, able to improve the working stability. Its slewing platform adopts a large-sized H-beam structure, able to effectively improve the capacity of the excavator to withstand the positive and negative bending moments. The key stress parts of the swing arm bucket rod adopt a casting structure with a large-capacity rock-oriented bucket used to improve the bucket strength and productivity. A reinforced cab in accordance with the FOPS certification as well as an embedded 7-inch LCD screen is used to offer drivers safe and high-quality driving enjoyment. The complete machine features low vibration, low noise and comfortable operation by virtue of the in-depth research on the vibration of the complete XE700C and the optimization design of the structural members. In general, XE700C boasts high-end configurations, high efficiency, low fuel consumption, low noise and high reliability, able to serve mine construction as ideal operation equipment.
| Model | Unit | XE700C | |
|---|---|---|---|
| Operating weight | kg | 68000 | |
| Standard bucket capacity | m³ | 3.1~3.5 | |
| Engine | Engine Model | / | Cummins QSX15 |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo charged | / | √ | |
| Air to air intercooler | / | √ | |
| No. of cylinders | / | 6 | |
| Rated power/speed | kw/rpm | 336/1800 | |
| Max. torque/speed | N.m | 2102/1400 | |
| Displacement | L | 15 | |
| The main performance | Travel speed | km/h | 4.2/3.0 |
| Swing speed | r/min | 7 | |
| Max. gradeability | / | ≥30 | |
| Ground pressure | kPa | 99.1 | |
| Max.Bucket digging force | kN | 370 | |
| Max.arm crowd force | kN | 354 | |
| Max.traction force | kN | 450 | |
| Hydraulic system | Main pump | / | 2 Plunger pump |
| Rate flow of main pump | L/min | 2×450 | |
| Max pressure of prime relief valve | MPa | 31.4/34.3 | |
| Max pressure of travel system | MPa | 34.3 | |
| Max pressure of swing system | MPa | 25.5 | |
| Max pressure of pilot system | MPa | 3.9 | |
| Oil capacity | Fuel tank capacity | L | 980 |
| Hydraulic tank capacity | L | 455 | |
| Engine lubrication | L | 48 | |
| Overall dimensions | A Overall length | mm | 11940 |
| B Overall width | mm | 4280 | |
| C Overall height | mm | 4700 | |
| D Overall width of upperstructure | mm | 3260 | |
| E Track length | mm | 5955 | |
| F Overall width of undercarriage | mm | 4260 | |
| G Crawer width | mm | 650 | |
| H Track length on ground | mm | 4680 | |
| I Crawer gauge | mm | 2800/3350 | |
| J Clearance under counter weight | mm | 1552 | |
| K Ground clearance | mm | 853 | |
| L Min.tail swing radius | mm | 3900 | |
| Working range | A Max. digging height | mm | 11350 |
| B Max. dumping height | mm | 7370 | |
| C Max. digging depth | mm | 6900 | |
| D 8inch horizonal digging depth | mm | 6750 | |
| E Max. vertical wall digging depth | mm | 5500 | |
| F Max. digging reach | mm | 11580 | |
| G Min. swing radius | mm | 4750 | |
| Angle of arm deflection | Degree | ||
All the package jobs are made by professional workers
Reference Photo
Spare Parts Warehouse
1. Engaged in selling Wheel loaders, Excavators, Road rollers, Heavy duty trucks, Motor graders and Tractors,etc . According to your needs, recommend the right products with competitve price.
2. Handling exporting entire project from begining to end, from production to shipment. Sending you the documents all in full, like Bill of Loading, Invoice, Packing List etc after shipment.
3. Fast and efficient after-sales service are available.
HENAN DEXING MACHINERY EQUIPMENT CO., LTD was founded in 2010 year,engaged in exporting Wheel loaders, Excavators, Road rollers, Heavy duty trucks, Motor graders and Tractors,etc. In the business, our company insists getting reputation by " Quality" "Innovation" "Value" and "Responsiblity"
Closely cooperating with China Famous professional factories like XCMG, Foton SANY SDLG and so on, we have accumulated rich exprience in international trades with more than 30 countries, like Mexico, Chile, Brizil, Argentina Philippines Thailand ,Australia, USA, Canada, Sweden Uganda, Botswana etc.
Company's aim is to sell China qualified products to all the world with competitive price and excellent after-sale service. Welcome to China. Welcome to our company. Hope you can find the satisfied products here with us.
Our Sales Team Available
1. WHY YOU CHOOSE US?
Attitude: Nice /Work: Professional/Price:Competitive / Delivery :on time / Quality: Guarantee
Communication: in time/ Documents: Full in set /After-sales service: Fast and Efficient
2. WHICH PAYMENT TERMS CAN WE ACCEPT?
We normally work on T/T term, sometimes we work on L/C term.
a. On T/T term, 30% down payment is required in advance, and 70% balance payment shall be settled before shipment.
b. On L/C term, a 100% irrevocable L/C at sight without “soft clauses” can be accepted. (For some particular countries like Algeria, Bengal etc.)
3. HOW LONG THE EQUIPMENTS CAN BE DELIVERY?
If machine in the stock, we will arrange delivery within 7 days ;
If machine out of stock, we need 10-25 days to arrange production.
4. WHAT LOGISTICS WAY WE CAN WORK FOR SHIPMENT?
a. For 90% , we can ship by sea, to all main continents such as Africa, Middle east, Southeast Asia, South America, Oceania and Eurpe etc, eigher by container or RORO/Bulk shipment.
b. For neighborhood countries of China, such as Russia, Mongolia,Kazakhstan,Uzbekistan etc, we can do by road or railway.
c. For light spare parts in urgent demand, we can deliver it by international courier service, such as DHL,TNT,UPS, or Fedex etc.
