Specifications
Side shift boom backhoe attachments for tractors3 point backhoe loader
Hydraulic system operation
PTO pump and reservoir

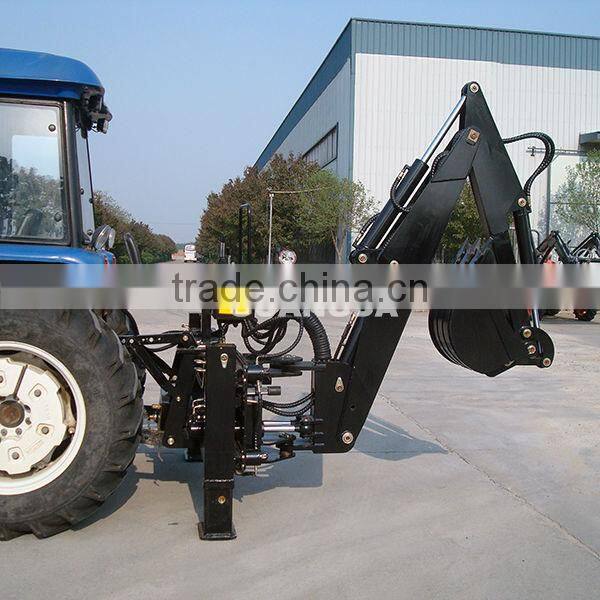

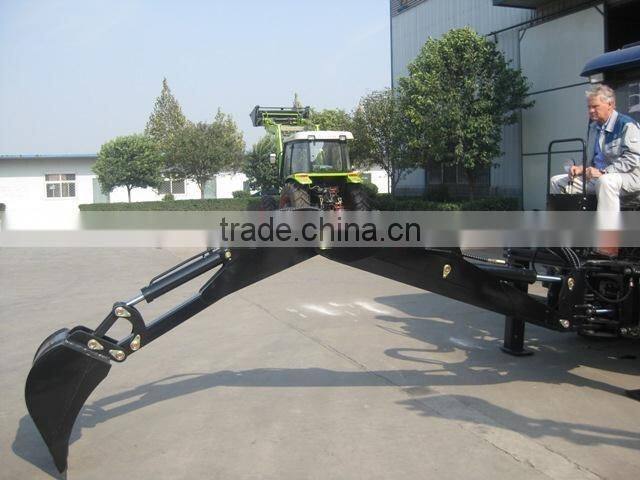

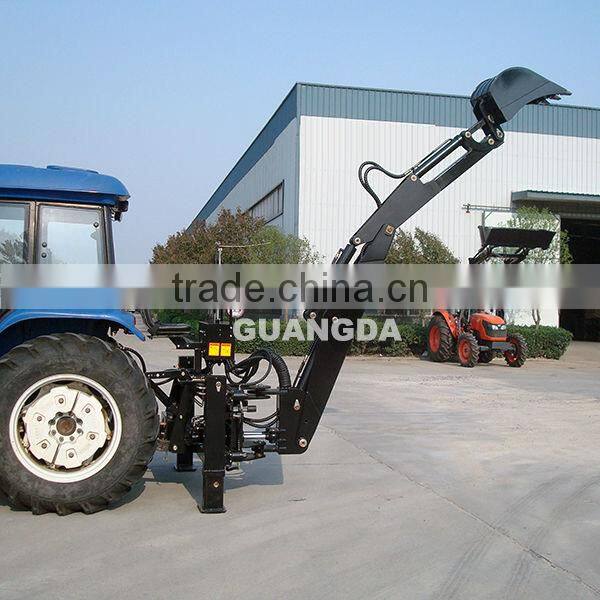

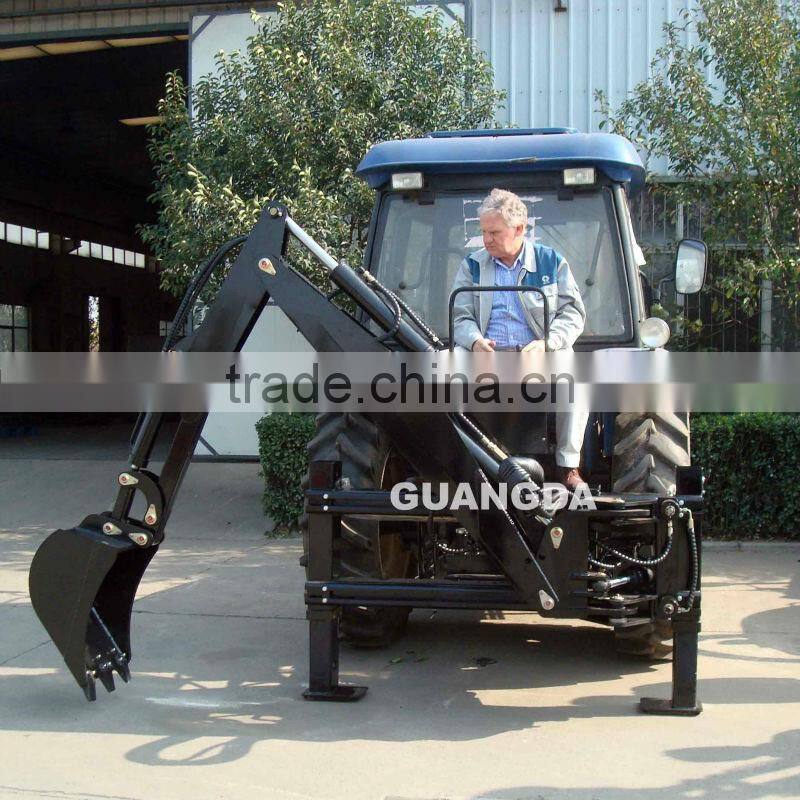

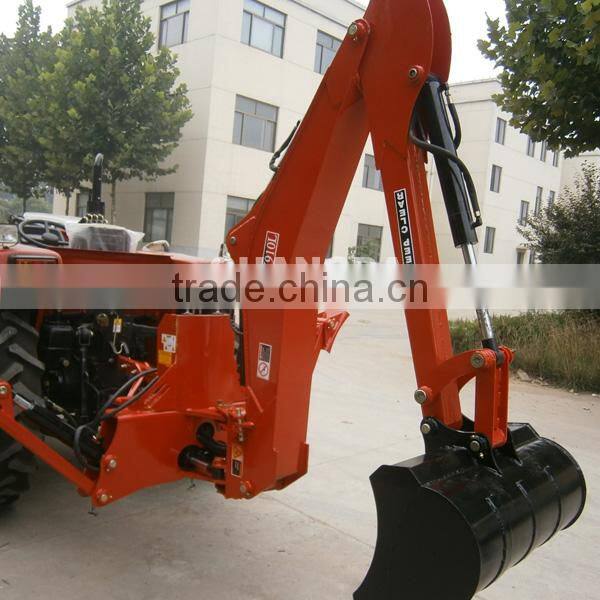

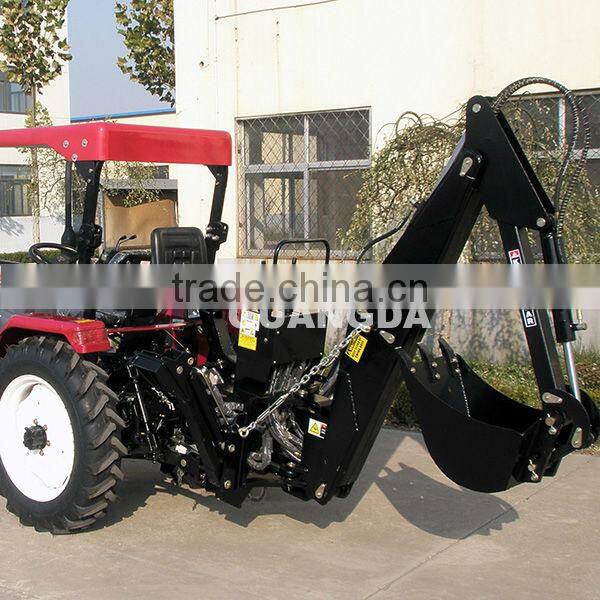

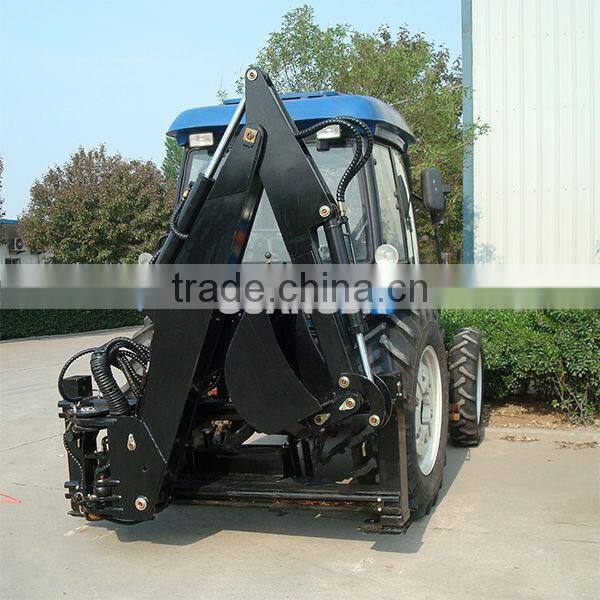

Side shift boom backhoe attachments for tractors

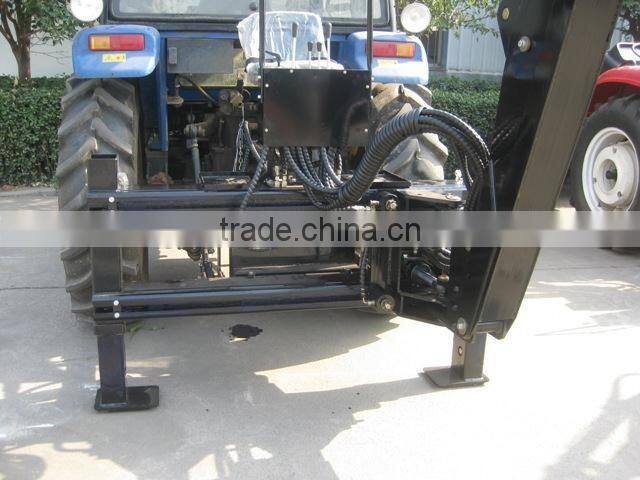

Full Side Shift with Independent Hydraulic Supports
Hydraulic Carriage Locking
• Independent hydraulic pump and reservoir
• Side-shift boom
• Cat 1 & 2, 3-point linkage
• Suits most 20 – 120 HP tractors
• Narrow boom for better viewing
• 180° rotation and compact design
• Padded seat & safety belt
• Boom lockout pins for transport
• Joy-stick style control console
• Simple for one person to attach
• Individually controlled support legs
• Flexibility on uneven surfaces
• Buckets & attachments available
Model |
LW-6E |
LW-7E |
LW-8E |
LW-10E |
Matched power(hp) |
20-35 |
30-55 |
50-90 |
70-120 |
Max. digging depth (mm) |
2000 |
2400 |
2800 |
3200 |
Max. unloading height (mm) |
1860 |
2050 |
2380 |
2650 |
Max. digging height (mm) |
2970 |
3210 |
3460 |
3770 |
Working radius (mm) |
2700 |
3140 |
3600 |
3920 |
Ground clearance (mm) |
450 |
450 |
500 |
500 |
Side shift distance (mm) |
770 |
770 |
1000 |
1200 |
Min. transporting width (mm) |
1470 |
1470 |
1700 |
2000 |
Max. width of supporting legs(mm) |
1470 |
1470 |
1700 |
2000 |
Bucket width (inch) |
14 |
16 |
18 |
20 |
Bucket capacity (m³) |
0.04 |
0.05 |
0.06 |
0.07 |
Weight (kg) |
600 |
620 |
700 |
1000 |
PTO hydraulic system |
6/8/21 splines for options |
|||
Thumb Grab |
Options |
|||
Features: The LW-E shide shift backhoe is suited to 20-120HP tractor.The side shift boom brings a new level of performance to the small acreage farmer, as it enables the main boom to be hydraulically shifted to either edge of the tractor. This allows digging closer to fence lines and buildings and can be used for many task around properties and farms including digging trenches, breaking up rocky soil, piping preparation, channelling rainfall runoffs, planting and relocating trees.
Pre-sales |
Service online for 24hours to wait for your inquiry |
Sale tracking |
Provide specification, photos, and delivery cost for you. Answer your questions and solve your problems at any time. |
After-sale service |
12months warranty for the machine without wearing parts. We will deliver damaged parts (except wearing parts) for free based on quality problem within warranty period. Wearing parts are also sold to match your machine if needed. |
After-sale service process |
If some parts damaged, please take photos and shoot video firstly, please send us in time. We will pass your problems to our after-sale department to deal with. Solution will be provided for you as soon as possible. |
Henan Guangda is a professional manufacturer and supplier of farm machinery, has been engaging in the international trading for 14 years. 12-180hp wheel tractor, agricultural implements and forest machinery are our main production, one-stop service is our main feature. Products are widely exported to North America, Europe, Africa, South America and Southeast Asia. Featuring high quality standards, rigorous management measures and advanced technology, we have built up very fine reputation among both domestic and overseas customers.
1. Delivery time: 30 days after the down payment
2. Payment term: By T/T (30% deposit in advance, 70% balance before delivery).
3. Free accessories: Easy damage parts and toolbox provided for free
4. Technical documents: Technical files, manual, documents and certificates are provided together
5. Warranty: 12 months after the goods delivery your port
6. Tractor color: As per request
7. Logo: Can stick your logos for free if needed
Related Products

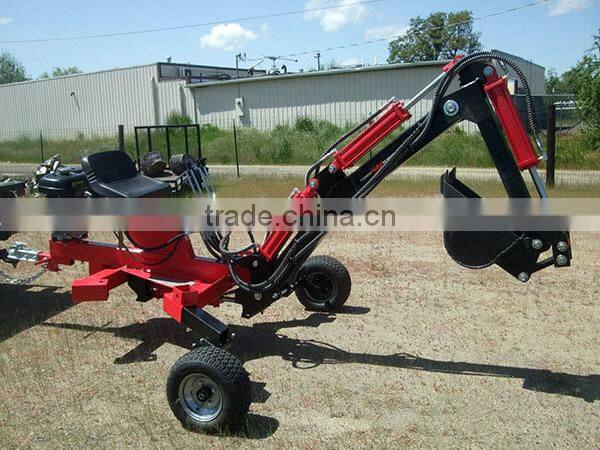

| LW backhoe attachment, please click here | GX backhoe loader, please click here | Towable backhoe, please click here |
|
|
|
