Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > Hydraulic 3 Point Hitch LW Backhoe for Tractor

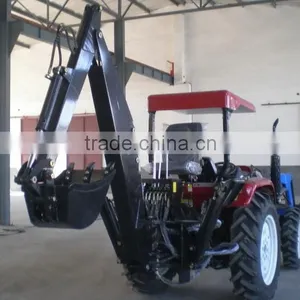

Hydraulic 3 Point Hitch LW Backhoe for Tractor

Name: Hydraulic 3 Point Hitch LW Backhoe for Tractor
Brand: GUANGDA
SKU: 139048113
Availability: InStock

Hydraulic 3 Point Hitch LW Backhoe for Tractor thumbnail-1

Hydraulic 3 Point Hitch LW Backhoe for Tractor photo-1

US$ 3,000 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Farm,garden,lawn

Brand Name:

GUANGDA

Contact Supplier Request Quote Chat Now

Henan Guangda Textiles Imp & Exp Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Farm,garden,lawn

Brand Name GUANGDA

Model Number LW-series

Dimension(L*W*H) 2150X1300X2755

Weight 800kg

Features towable backhoe

Certification CE

Warranty 12 months

After-sales Service Provided No overseas service provided

Hydraulic 3 point hitch LW backhoe for tractor

trailed by car or tractor

3 point linkage backhoe attachment

diesel and gasoline engine for choose

full side shift with independent hydraulic supports

Specification:

• PTO Pump and gear box.

• 3 Point fits most tractors with a Category 1 Hitch.

• Color's are Black or Red, paint is powder coated
• Optionable Bucket sizes 10"-22" are all interchangeable for backhoe loader.
• Reservoir Tank with Filter is optional for LW tractor backhoe loader.

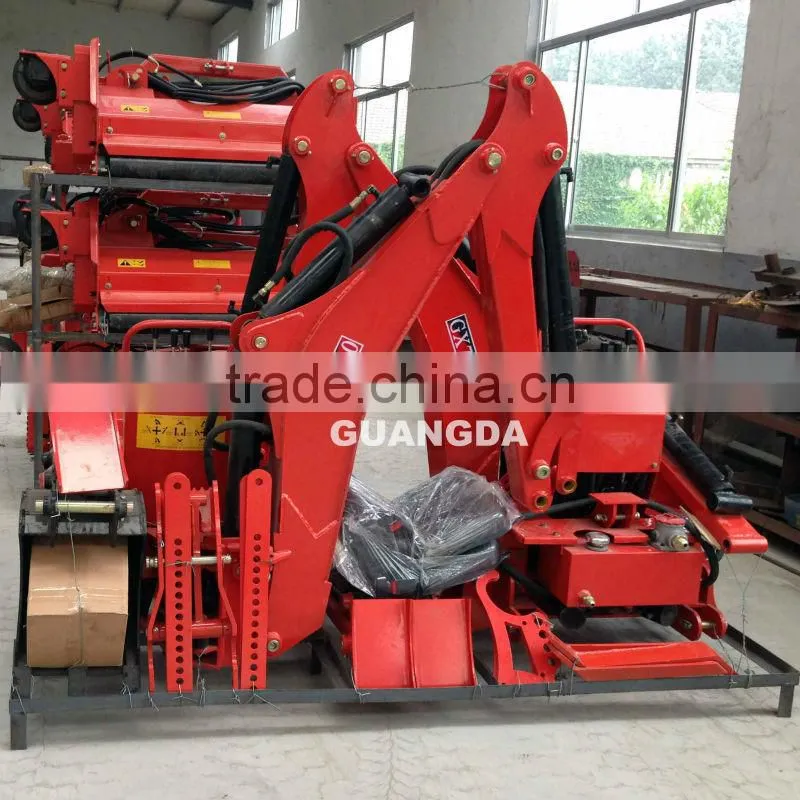

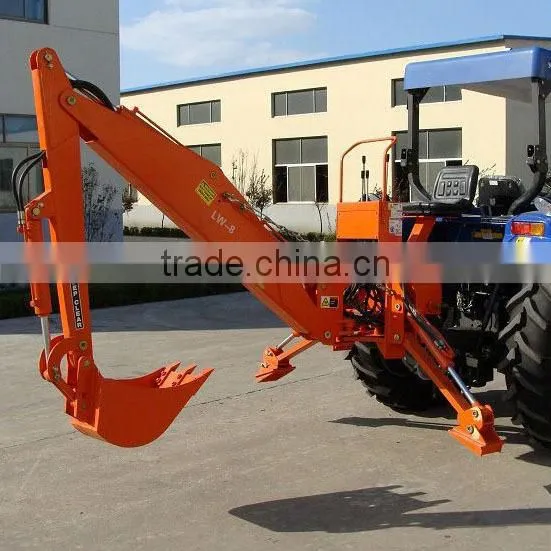

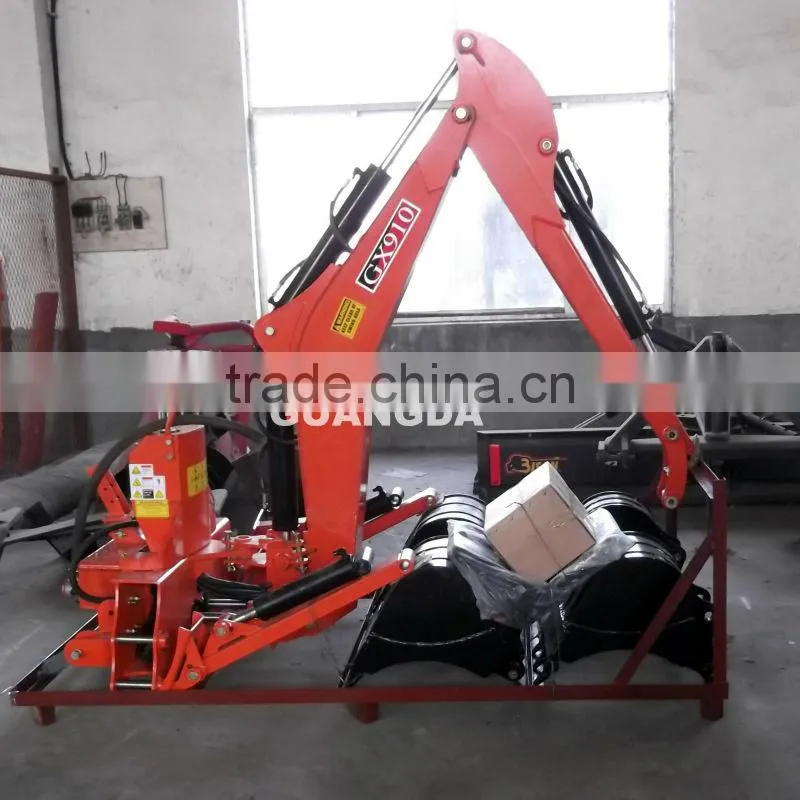

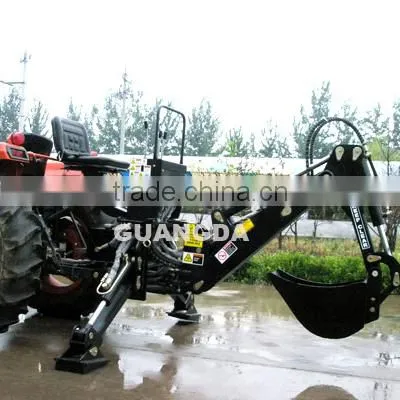

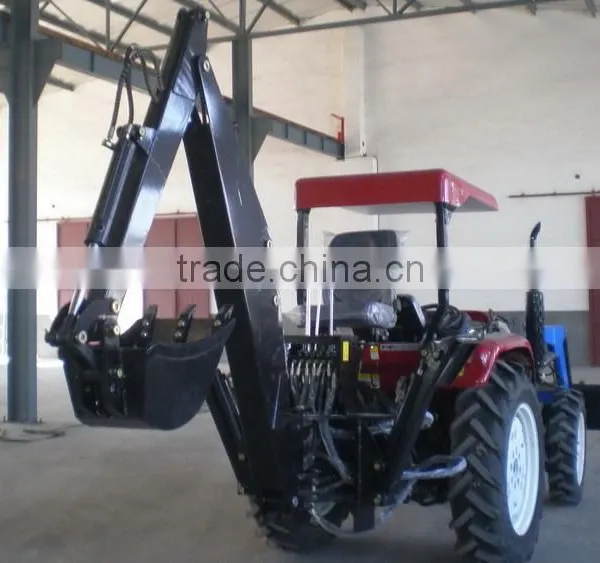

Photos of the Backhoe:

Technical Specification:

Model	LW-5	LW-6	LW-7	LW-8	LW-9
Horsepower Range	16-25	20-35	25-45	60-100	65-125
Overall size	1550×1480×2130	1550×1480×2130	2000×1860×2500	2140×1860×2800	2300×1750×2800
Max. digging depth(mm)	1720	1850	2150	2640	2900
Max. digging radius(mm)	2560	2800	3360	3930	3977
Max. digging height(mm)	2200	2500	3400	3510	3900
Discharging height(mm)	1300	1400	1760	2000	2362
Max. digging depth(2ft) Flat bottom(mm)	1600	1600	2000	2500	2760
Swing Angle(^.)	140	140	140	140	160
Bucket Rotation(^.)	160	160	160	160	150
Operating Digging Force(KG)	16mpa	16Mpa	16Mpa	16Mpa	16Mpa
Dipper stick Digging Force(KG)	520	790	950	1000	1270
Shipping Weight(approx)kg	410	470	540	600	820

Bucket size and Cap.
Size(mm/inch)	250/10	300/12	400/16	450/18	500/20	550/22
Cap.(m³)	0.03	0.036	0.048	0.054	0.06	0.066

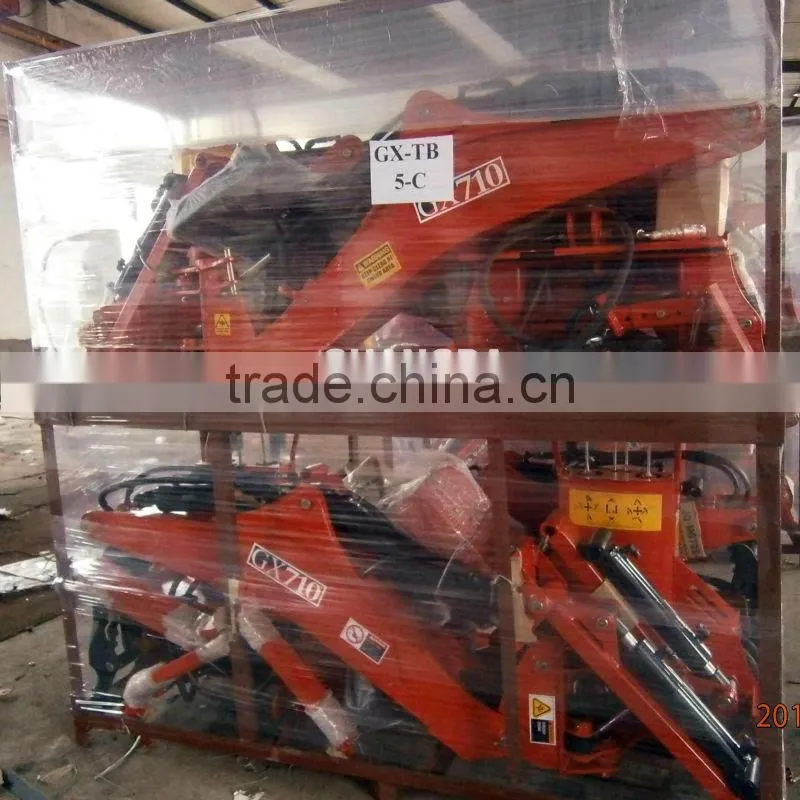

Packing & shipping

Our Services

Pre-sales	Service online for 24hours to wait for your inquiry
Sale tracking	Provide specification, photos, and delivery cost for you. Answer your questions and solve your problems at any time.
After-sale service	12months warranty for the machine without wearing parts. We will deliver damaged parts (except wearing parts) for free based on quality problem within warranty period. Wearing parts are also sold to match your machine if needed.
After-sale service process	If some parts damaged, please take photos and shoot video firstly, please send us in time. We will pass your problems to our after-sale department to deal with. Solution will be provided for you as soon as possible.
