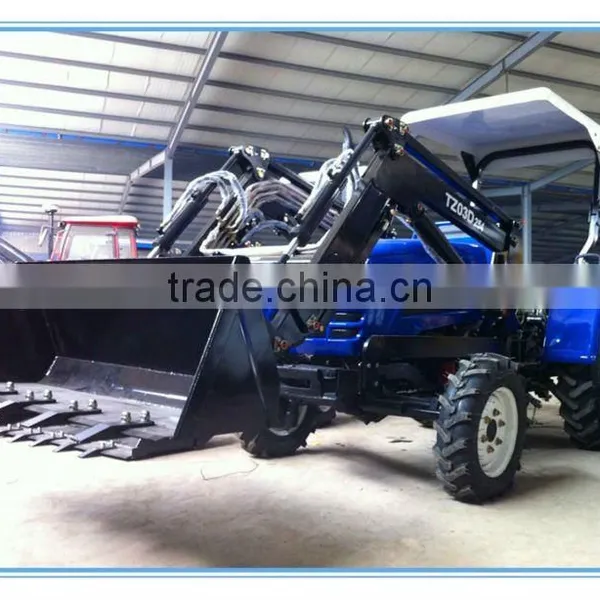

LZ254 25HP 4WD Mini/small Tractor With Front End Loader

LZ254 25HP 4WD Mini/small Tractor With Front End Loader thumbnail-1
LZ254 25HP 4WD Mini/small Tractor With Front End Loader photo-1
US$ 1,900 - 4,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Gooler International Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Certificate Other, ISO9001
Brand Name LZ brand
Model Number LZ304,TZ03D,LW-6
Place of Origin Shandong, China

Specifications

1.Fit 25-35HP tractor
2.all quick-link, flat rise and lower
3.triple link control
4.pallet fork,4in1 bucket,timber grab

Specifications

front end loader for tractor

-Matching power 20hp-140hp

-Hydraulic transmission

-4 in1 bucket optional

-3 linkage control



TZ series front end loader for tractor 20hp - 140hp



-Standard level lift.

-Perfect painting and finishing in details.

-Special requests on the the size of bucket are available

-Quick release bracket and it is very easy for installation.

-Quick release attachment which can work with others Extensive implements

-4 in 1 bucket, pallet fork and wood Grapple are available on it.



-Adopt Germany technical and with CE certificate



Front end loader Main Characters Summary



-Used in Shoveling, stacking or short-distance transportation of loose material like mud, sand, stone or garbage.

-Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It used hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.

-Different work devices are optional, such as combined buckets, grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfully.

 LZ254 25HP 4WD Mini/small tractor with front end loaderLZ254 25HP 4WD Mini/small tractor with front end loader

 LZ254 25HP 4WD Mini/small tractor with front end loaderLZ254 25HP 4WD Mini/small tractor with front end loader

Luzhong 254-304 Tractors Main Techical Specifications




Model

LZ254

LZ284

LZ304



Type

4WD    Wheeled Type



(mm)Dimensions of Tractor

Length (to front ballast)

3030



Width

1470



Height (to the exhaust vent)

1900



Tread

Front Wheel

1215 Fixed or 1150~1215 Adjusted




Rear Wheel

1300 Fixed or 1300~1350 Adjusted




Axle Base

1710



Min.Ground Clearance

347.5




Structure weight (kg)

1130



Ballast weight
(kg)

Front ballast

56



Rear ballast

112



Rated traction force (kg)

551

591

663



EPA Engine

Model

385

385

390/485



Type

Vertical,3-Cylinder,Water Cooled and 4-stroke



Rated Power(kw)

18.4

20.6

22




Rated speed (r/min)

2400




Fuel

Diesel



Tyre

Front Wheel

6.00-14



Rear Wheel

9.5-24



Clutch

Dual-stage clutch



Steering

power steering



Transmission Type

 8+8 with shuttle gearshift



Suspension Type

3-point links




PTO

Type and Rev

Semi-independent Type 540/1000




Spline Size

F35 Rectangle Spline with 6 teeth













Tractor Front end loader Specifications



Model

TZ02

TZ02D

TZ03

TZ03D

TZ04

TZ04D



Tractor model

254

284/304/354

404454/504/554

A

Height–measured at arm pivot point

2100

2360

2400

2700

2500

2800

C

Max. dump height (mm)

1700

1800

2000

2000

2100

2100

D

Dump distance (Max. dump height) (mm)

500

600

700

800

800

900

E

Dump angle (°) (Max. dump height) (mm)

42

45

42

45

42

45

F

Distance to the centre of front-wheel (mm)

1550

1800

1800

1900

1800

1900

G

Rollback angle on ground (°)

26

32

26

32

26

32

H

Max. digging depth (mm)

100

100

100

140

100

140



Bucket width (mm)

1250

1250

1400

1400

1500

1500



Bucket capacity (m3)

0.18

0.18

0.21

0.21

0.23

0.23



Rated lift capacity (Kg)

200

200

300

300

400

400
