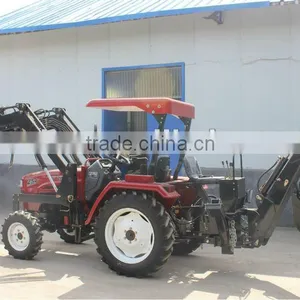

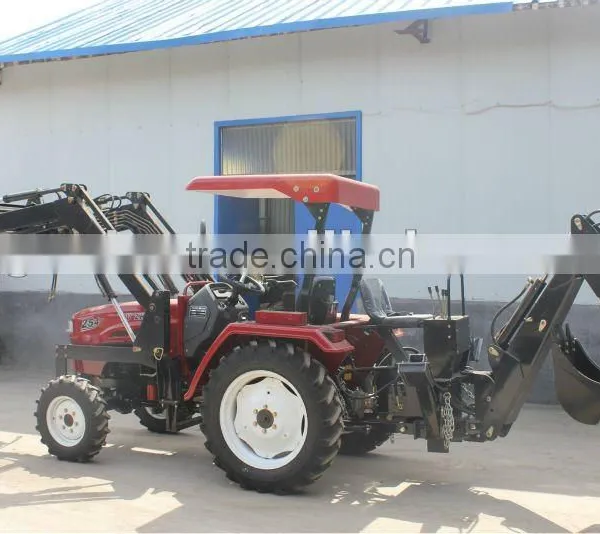

LZ254 25HP 4WD small tractor fit with 4in1 front end loader and backhoe

Specifications

1.4in1 bucket
2.Quick linkage system
3.Triple linkage control
4.Teeth and mesh on bucket
5.Pallet fork, timber grapple

                Front end loader specifications fit with 25HP to 160HP tractors





-Standard level lift.



-Perfect painting and finishing in details.



-Special requests on the the size of bucket are available



-Quick release bracket and it is very easy for installation.



-Quick release attachment which can work with others Extensive implements



-4 in 1 bucket, pallet fork and wood Grapple are available on it.





-Adopt Germany technical and with CE certificate





Front end loader Main Characters Summary





-Used in Shoveling, stacking or short-distance transportation of loose material like mud, sand, stone or garbage.



-Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It used hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.

-Different work devices are optional, such as combined buckets, grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfully.





Model	TZ03D	TZ04D	TZ06D	TZ08D
Tractor model	254/284/304/354	404/454/504/554	604/654/704	754/804/854/904
Height-measured at arm pivot point	2700mm	2800mm	3100mm	3080mm
Max. dump height (mm)	2000	2100	2300	2350
Dump distance (Max. dump height)	800mm	900mm	1100mm	1100mm
Dump angle (°) (Max. dump height)	45mm	45mm	45mm	43mm
Distance to the centre of front-wheel	1900mm	1900mm	2300mm	2400mm
Rollback angle on ground (°)	32	32	34	34
Max. digging depth (mm)	140	140	140	180
Bucket width (mm)	1400	1500	1600	1700
Bucket capacity (m3)	0.21	0.23	0.43	0.46
Rated lift capacity (Kg)	350	600	700	1000
