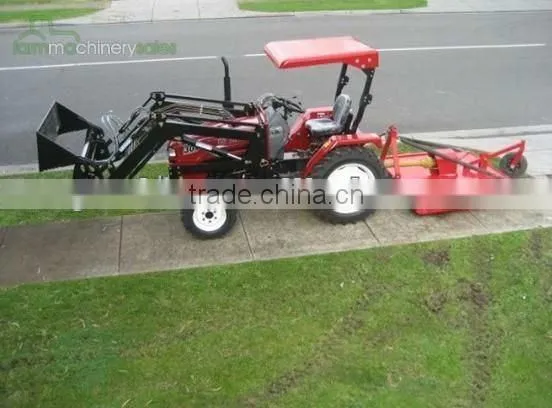

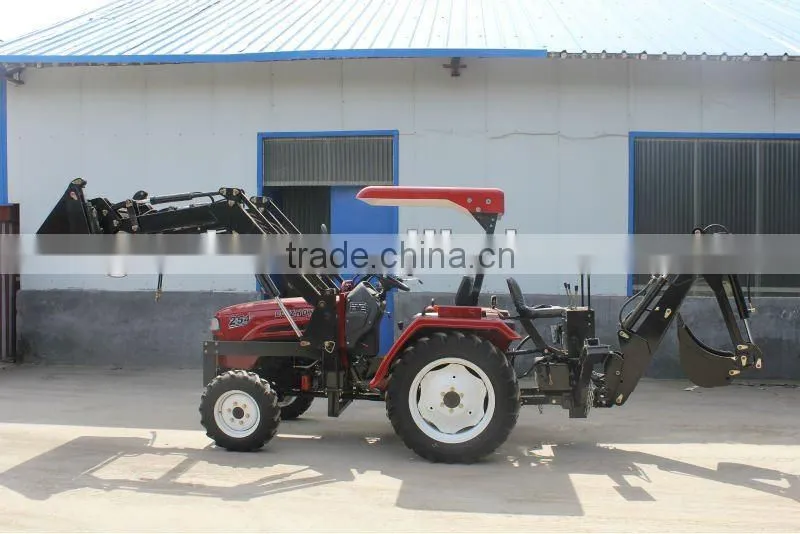

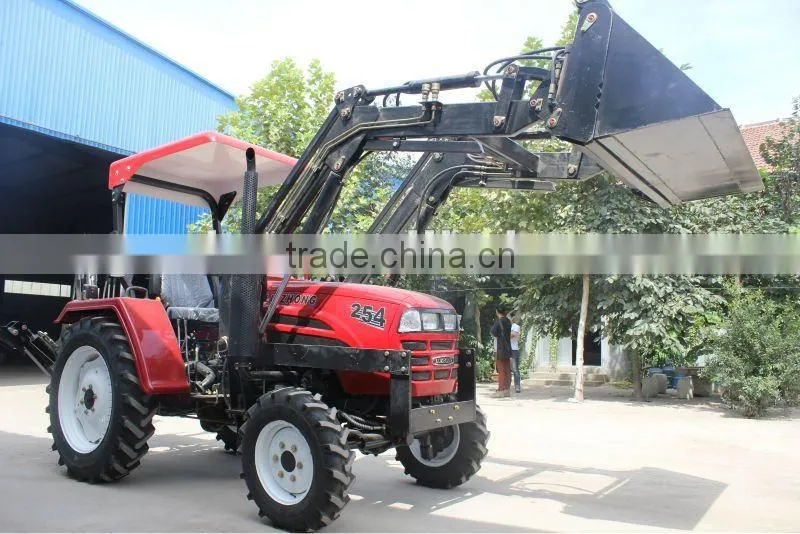

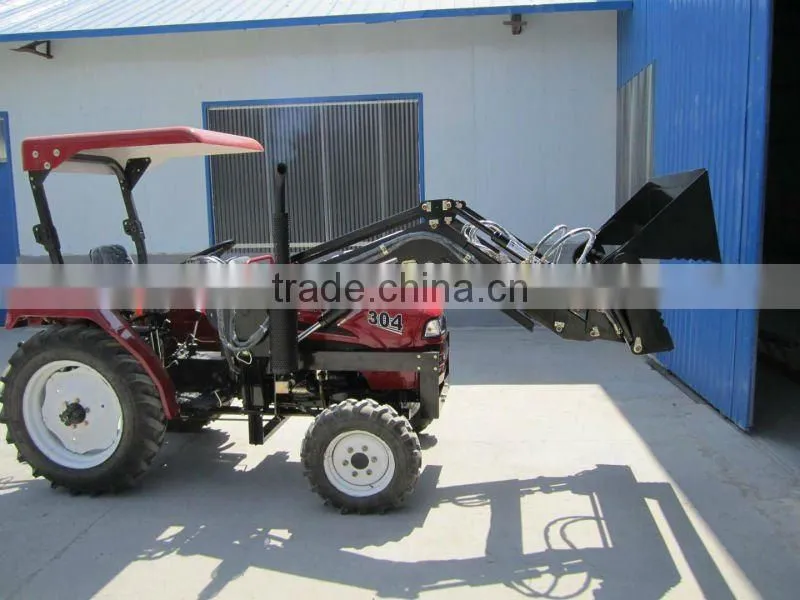

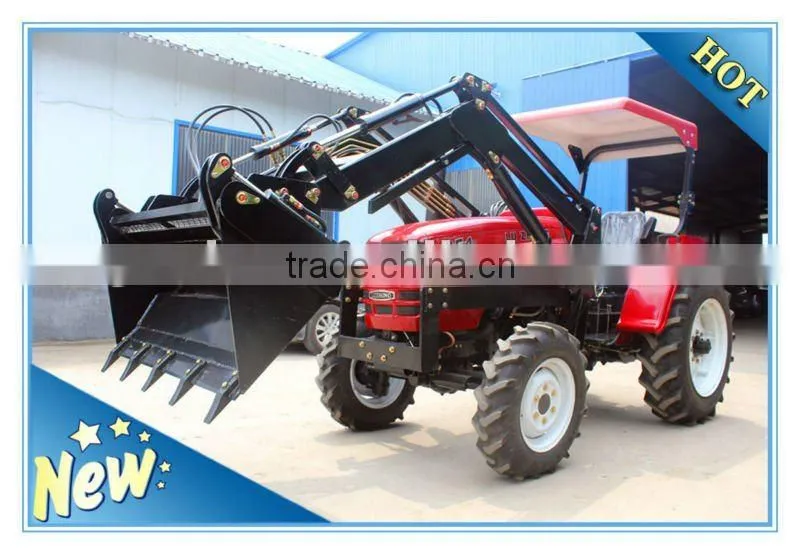

LZ304 30HP 4WD tractor fit with 4in1 front end loader

Luzhong 254-304 Tractors Main Techical Specifications

Model

LZ254

LZ284

LZ304

Type

4WD    Wheeled Type

(mm)Dimensions of Tractor

Length (to front ballast)

3030

Width

1470

Height (to the exhaust vent)

1900

Tread

Front Wheel

1215 Fixed or 1150~1215 Adjusted

Rear Wheel

1300 Fixed or 1300~1350 Adjusted

Axle Base

1710

Min.Ground Clearance

347.5

Structure weight (kg)

1130

Ballast weight
(kg)

Front ballast

56

Rear ballast

112

Rated traction force (kg)

551

591

663

EPA Engine

Model

385

385

390/485

Type

Vertical,3-Cylinder,Water Cooled and 4-stroke

Rated Power(kw)

18.4

20.6

22

Rated speed (r/min)

2400

Fuel

Diesel

Tyre

Front Wheel

6.00-14

Rear Wheel

9.5-24

Clutch

Dual-stage clutch

Steering

power steering

Transmission Type

 8+8 with shuttle gearshift

Suspension Type

3-point links

PTO

Type and Rev

Semi-independent Type 540/1000

Spline Size

F35 Rectangle Spline with 6 teeth

Model

TZ02

TZ02D

TZ03

TZ03D

TZ04

TZ04D

Tractor model

254

284/304/354

404454/504/554

A

Height–measured at arm pivot point

2100

2360

2400

2700

2500

2800

C

Max. dump height (mm)

1700

1800

2000

2000

2100

2100

D

Dump distance (Max. dump height) (mm)

500

600

700

800

800

900

E

Dump angle (°) (Max. dump height) (mm)

42

45

42

45

42

45

F

Distance to the centre of front-wheel (mm)

1550

1800

1800

1900

1800

1900

G

Rollback angle on ground (°)

26

32

26

32

26

32

H

Max. digging depth (mm)

100

100

100

140

100

140

Bucket width (mm)

1250

1250

1400

1400

1500

1500

Bucket capacity (m³)

0.18

0.18

0.21

0.21

0.23

0.23

Rated lift capacity (Kg)

200

200

300

300

400

400
