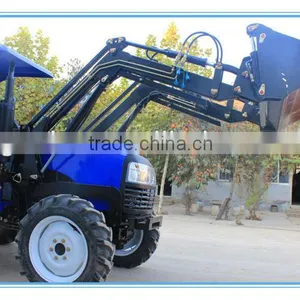

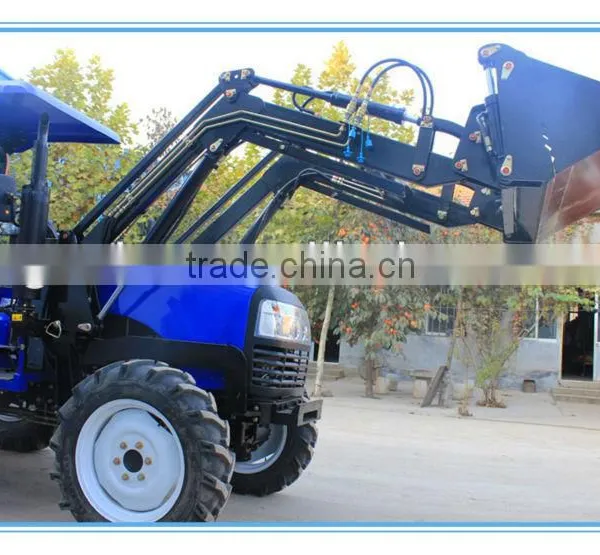

DQ404 40HP 4x4 tractor with 4in1 front end loader
- 6 Unit / Units per Month
- Qingdao / Shanghai port
- T/T D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 29-45KW |
Certificate: | EPA | Brand Name: | Farm Rover | Model Number: | TZ04D |
Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.40/50/55/60HP 4WD2.Dual stage cluth,Shuttle gear,luxury chair
3.4in1 loader, quick linkage
4.Pallet fork, timber grapple
Technical of Farm Tractor DQ404/DQ554 with front end loader & backhoe
Model | DQ404 | DQ554 |
Drive type | 4x4 | 4x4 |
Engine | ||
Type of engine | Xinchai 4-Cylinder | |
Capacity of fuel tank(L) | 38L | |
Engine power at rated speed | 29.4KW | 40.5KW |
Rated speed (r/min) | 2400 | |
Transmission | ||
Clutch | dry,dual-stage type | |
PTO speed | Double PTO 540/760rpm | |
Gear shift | 8F+4R/8F+8R(Optional) | |
Hydraulic system | ||
Hydraulic output valve | 2-Way (optional) | |
Three point linkage | ||
Category of 3-point link | rear, category I | |
Lifting force(at point of 610mm)KN | 11 | 12 |
Technical parameter | ||
Overal size(LxWxH)mm | 3513x1750x2130 | |
Wheel base(mm) | 1924 | 2040 |
The smallest clearance(mm) | 325 | 325 |
Front tire | 8.3-20 | 8.3-20 |
Rear tire | 12.4-28/14.9-24(optional) |
Tractor Front end loader Specifications
Model | TZ03D | TZ04D | TZ06D | TZ08D |
Tractor model | 254/284/304/354 | 404/454/504/554 | 604/654/704 | 754/804/854/904 |
Height-measured at arm pivot point (mm) | 2700 | 2800 | 3100 | 3080 |
Max. dump height (mm) | 2000 | 2100 | 2300 | 2350 |
Dump distance (Max. dump height) (mm) | 800 | 900 | 1100 | 1100 |
Dump angle (°) (Max. dump height) (mm) | 45 | 45 | 45 | 43 |
Distance to the centre of front-wheel (mm) | 1900 | 1900 | 2300 | 2400 |
Rollback angle on ground (°) | 32 | 32 | 34 | 34 |
Max. digging depth (mm) | 140 | 140 | 140 | 180 |
Bucket width (mm) | 1400 | 1500 | 1600 | 1700 |
Bucket capacity (m3) | 0.21 | 0.23 | 0.43 | 0.46 |
Rated lift capacity (Kg) | 350 | 600 | 700 | 1000 |
Front end loader specifications
-Standard level lift.
-Perfect painting and finishing in details.
-Special requests on the the size of bucket are available
-Quick release bracket and it is very easy for installation.
-Quick release attachment which can work with others Extensive implements
-4 in 1 bucket, pallet fork and wood Grapple are available on it.
-Adopt Germany technical and with CE certificate
Front end loader Main Characters Summary
-Used in Shoveling, stacking or short-distance transportation of loose material like mud, sand, stone or garbage.
-Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It used hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.
-Different work devices are optional, such as combined buckets, grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfully.
