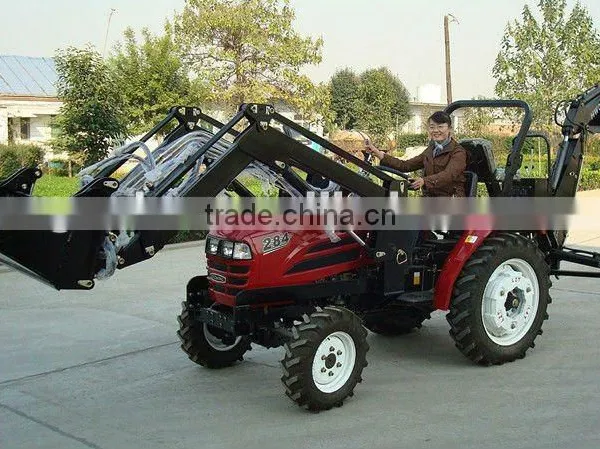

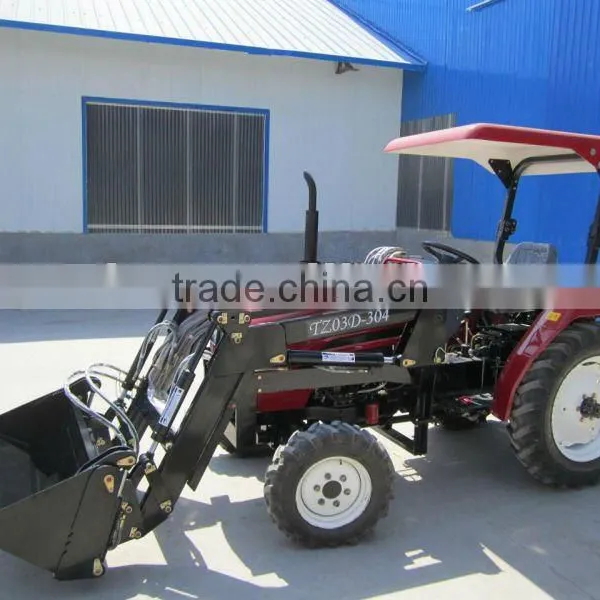

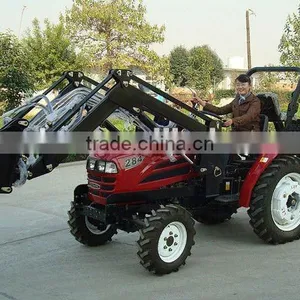

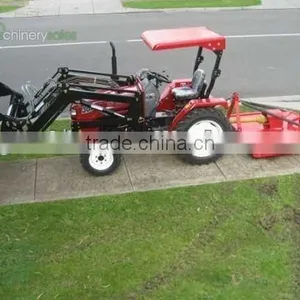

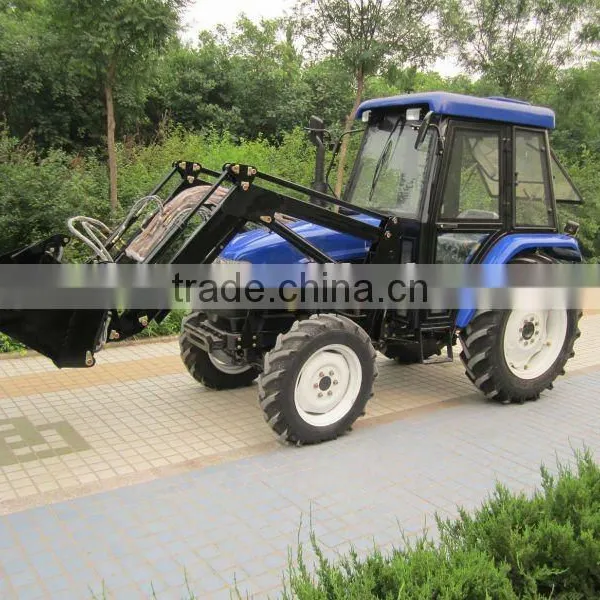

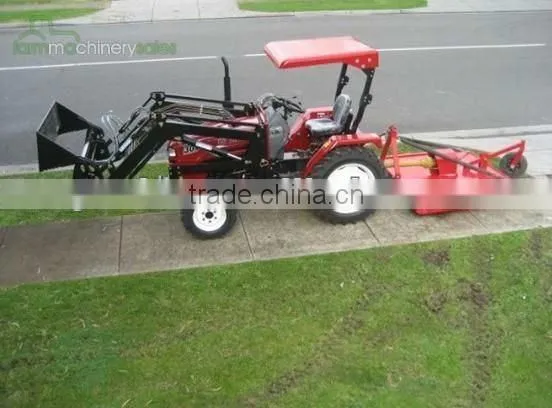

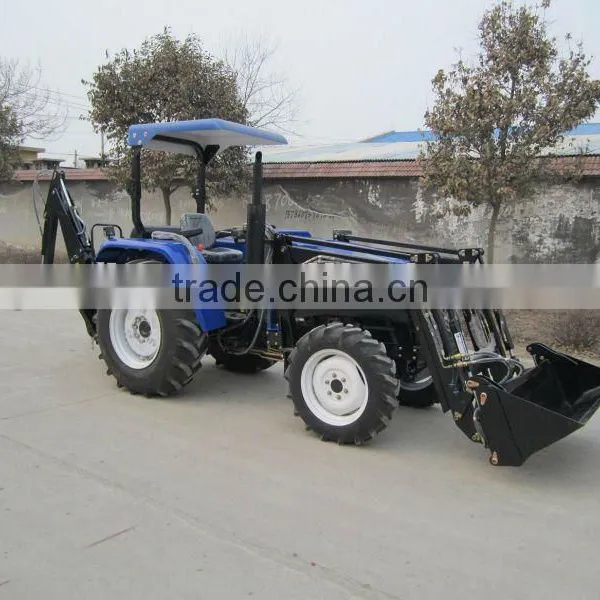

Help CenterLZ284 28HP 4WD Tractor Fit With 4in1 Bucket Front End Loader
Related Products
-
CE/EEC Tractor, DF Front End LoaderUS$ 1,700 - 3,000MOQ: 1 Unit -
LZ404 Tractor Fit With Front End Loader, Backhoe LoaderUS$ 1,850 - 2,550MOQ: 1 Unit
-
Tractor Fit With Front End Loader, Loading Tractor Fit With ImplementsUS$ 1,850 - 2,550MOQ: 1 Unit
-
40-55HP Farm Tractor Fit for TZ04D Front End LoaderUS$ 1,600 - 2,400MOQ: 1 Unit
-
Front Loader With CE TractorUS$ 1,500 - 3,000MOQ: 1 Unit
Specifications
1.4in1 bucket2.Quick linkage system
3.Triple linkage control
4.Teeth and mesh on bucket
5.Pallet fork, timber grapple
Front end loader specifications fit with 25HP to 160HP tractors
-Standard level lift.
-Perfect painting and finishing in details.
-Special requests on the the size of bucket are available
-Quick release bracket and it is very easy for installation.
-Quick release attachment which can work with others Extensive implements
-4 in 1 bucket, pallet fork and wood Grapple are available on it.
-Adopt Germany technical and with CE certificate
Front end loader Main Characters Summary
-Used in Shoveling, stacking or short-distance transportation of loose material like mud, sand, stone or garbage.
-Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It used hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.
-Different work devices are optional, such as combined buckets, grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfully.
Model |
TZ03D |
TZ04D |
TZ06D |
TZ08D |
Tractor model |
254/284/304/354 |
404/454/504/554 |
604/654/704 |
754/804/854/904 |
Height-measured at arm pivot point |
2700mm |
2800mm |
3100mm |
3080mm |
Max. dump height (mm) |
2000 |
2100 |
2300 |
2350 |
Dump distance (Max. dump height) |
800mm |
900mm |
1100mm |
1100mm |
Dump angle (°) (Max. dump height) |
45mm |
45mm |
45mm |
43mm |
Distance to the centre of front-wheel |
1900mm |
1900mm |
2300mm |
2400mm |
Rollback angle on ground (°) |
32 |
32 |
34 |
34 |
Max. digging depth (mm) |
140 |
140 |
140 |
180 |
Bucket width (mm) |
1400 |
1500 |
1600 |
1700 |
Bucket capacity (m3) |
0.21 |
0.23 |
0.43 |
0.46 |
Rated lift capacity (Kg) |
350 |
600 |
700 |
1000 |
