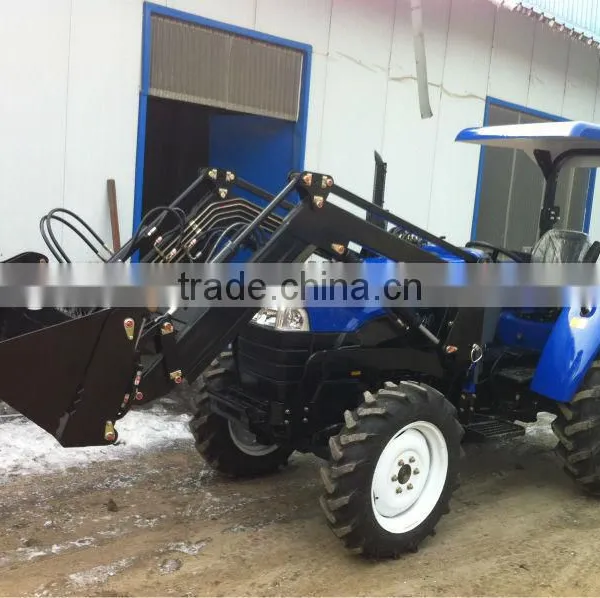

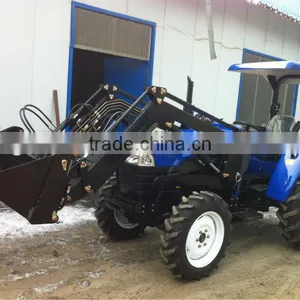

LZ404 40HP 4x4, fit with 4in1 front end loader, teech and mesh on the bucket

Specifications

1.40/50/55/60HP 4WD
2.Dual stage cluth,Shuttle gear,luxury chair
3.4in1 loader, quick linkage
4.Pallet fork, timber grapple

                                                      Tractor Front end loader Specifications



Model	TZ03D	TZ04D	TZ06D	TZ08D
Tractor model	254/284/304/354	404/454/504/554	604/654/704	754/804/854/904
Height-measured at arm pivot point (mm)	2700	2800	3100	3080
Max. dump height (mm)	2000	2100	2300	2350
Dump distance (Max. dump height) (mm)	800	900	1100	1100
Dump angle (°) (Max. dump height) (mm)	45	45	45	43
Distance to the centre of front-wheel (mm)	1900	1900	2300	2400
Rollback angle on ground (°)	32	32	34	34
Max. digging depth (mm)	140	140	140	180
Bucket width (mm)	1400	1500	1600	1700
Bucket capacity (m3)	0.21	0.23	0.43	0.46
Rated lift capacity (Kg)	350	600	700	1000



















































Front end loader specifications



-Standard level lift.



-Perfect painting and finishing in details.



-Special requests on the the size of bucket are available



-Quick release bracket and it is very easy for installation.



-Quick release attachment which can work with others Extensive implements



-4 in 1 bucket, pallet fork and wood Grapple are available on it.



-Adopt Germany technical and with CE certificate





Front end loader Main Characters Summary





-Used in Shoveling, stacking or short-distance transportation of loose material like mud, sand, stone or garbage.



-Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It used hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.

-Different work devices are optional, such as combined buckets, grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfully.
