Home > Products > Marine pump & Valves > CLZ Vertical self suction water pump

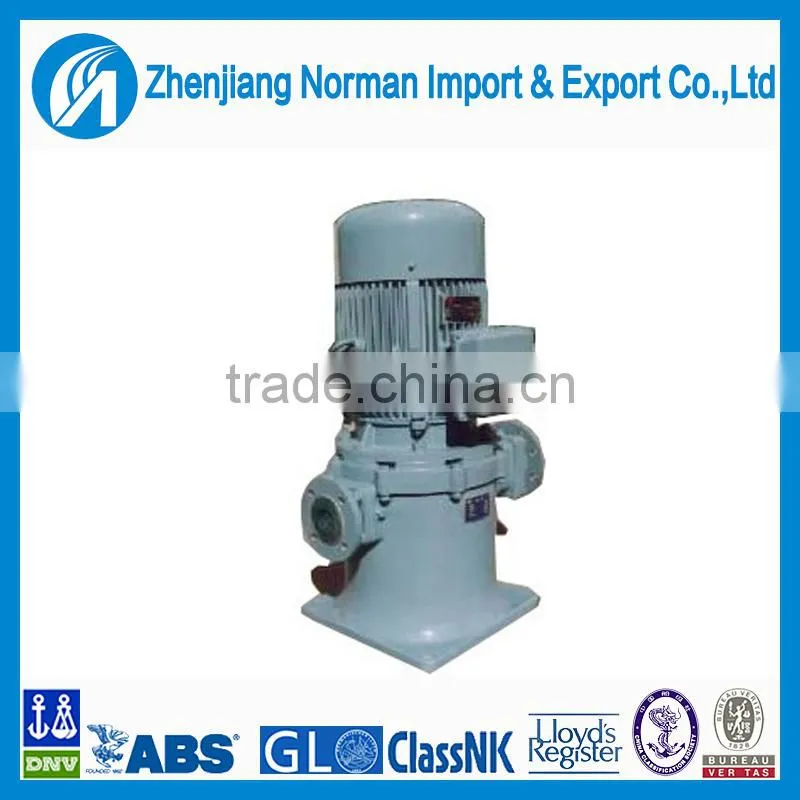

CLZ Vertical self suction water pump
- 150 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | ZJNM | |
| Model Number | CLZ | Theory | Centrifugal Pump | |
| Structure | Other, horizontal pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, electric | Pressure | Other | |
| Application | Other, suction pump |
Product Description
CLZ Vertical self suction water pump
General:
CLZ series of new products with vertical suction pump system. The product has the advantages of small volume, good self-priming performance (no external self-priming device), light weight etc.. Installation, use and maintenance.
The bilge pump is used, ballast, fire pump and sea water cooling and sanitary pump. This series of specifications of the pump can be used as anti smuggling guns, artillery fire water pump supporting work.
Main technical parameter:
Type | capacity m3/h | Head m | speed r/min | motor power Kw | NPSH m | WEIGHT kg |
40CLZ—2 | 5 | 60 | 2950 | 5.5 | 4.0 | 173 |
50CLZ—9 | 27 | 14.5 | 3 | 4.0 | 152 | |
50CLZ—7 | 12.5 | 20 | 2.2 | 4.0 | 146 | |
50CLZ—6 | 21 | 30 | 4.0 | 4.0 | 164 | |
50CLZ—4 | 12.5 | 32 | 3 | 4.0 | 152 | |
50CLZ—3 | 12.5 | 50 | 5.5 | 4.0 | 190 | |
65CLZ—9 | 25 | 20 | 3.0 | 4.0 | 151 | |
65CLZ—6 | 25 | 32 | 5.5 | 4.0 | 192 | |
65CLZ—5 | 25 | 45 | 7.5 | 4.0 | 198 | |
65CLZ—5A | 30 | 35 | 7.5 | 4.0 | 199 | |
65CLZ—4.5 | 25 | 60 | 11 | 4.0 | 222 | |
65CLZ—3 | 25 | 80 | 15 | 4.0 | 242 | |
80CLZ—13 | 45 | 21 | 5.5 | 5.0 | 194 | |
80CLZ—11 | 50 | 25 | 7.5 | 4.0 | 199 | |
80CLZ—9 | 50 | 32 | 11 | 5.0 | 236 | |
80CLZ—9A | 60 | 25 | 11 | 5.0 | 385 | |
80CLZ—7.5 | 60 | 50 | 18.5 | 4.5 | 256 | |
80CLZ—7 | 45 | 48 | 15 | 4.0 | 255 | |
80CLZ—7A | 40 | 50 | 15 | 5.0 | 252 | |
80CLZ—6 | 50 | 50 | 15 | 5.0 | 256 | |
80CLZ—6A | 30 | 60 | 18.5 | 5.0 | 414 | |
80CLZ—5.5 | 45 | 62 | 18.5 | 4.5 | 268 | |
80CLZ—5 | 60 | 80 | 30 | 4.5 | 508 | |
80CLZ—5A | 54 | 60 | 18.5 | 4.0 | 415 | |
80CLZ—5B | 50 | 70 | 22 | 4.5 | 452 | |
80CLZ—4 | 50 | 80 | 30 | 5.0 | 646 |
