1/2"-2" Forged Brass Gate Valve
- NINGBO
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | High Pressure | Power | Manual | |
| Material | Brass | Temperature of Media | High Temperature | |
| Media | Water | Port Size | 1/2-2" | |
| Place of Origin | Zhejiang, China | Model Number | 5006 | |
| Brand Name | EVERGREEN | Application | General |
Product Description

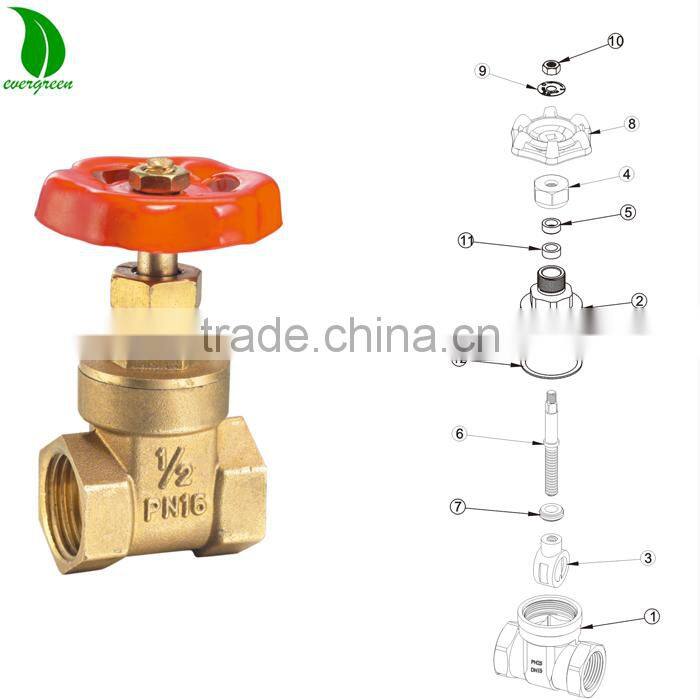

High quality brass gate valve
Parameter:
Material | Body:DZR BONNET: DZR WEDGE DISC:DZR PACKING NUT:BRASS WASHER:BRASS STEM:DZR FIXING NUT:BRASS HANDWHEEL:CAST IRON NAMEPLATE:ALUMINIUM NUT:BRASS SeaLING:P.T.F.E. Packing Ring:P.T.F.E |
Color | Metal colour |
Standard | ASTM D2846 |
Working temperature | 1.6-2.5MPA |
Connection | thread |
Size | 20mm,25mm,32mm,40mm,50mm, 1/2",3/4",1",1-1/4",1-1/2",2" |
Applications:
Brass gate valve is applied to construction, electrical conduit, agricultural irrigation, industrial sewage and other projects using .
1) Cold and hot water supply systems for civil and industrial constructions, e.g.in residential buildings, hospitals, hotels, school and office buildings, shipbuilding
2) Drinking water systems and food industry pipe works
3) Central air conditioning system
4) Irrigating system for gardens and green houses
5) Public and sport facilities such as swimming pools and stadiums
6) For rainwater utilization systems
Detail:
Packaging:
1. Normal packing
2. As per customer's request
Shipping:
Sea shipment
Air shipment
Courier shipment
Quick Response:
Mobile/WhatsApp/WeChat: +86-133 4596 9968
TradeManager: cn209737435
Skype: nbevergreen04
Services advantage:
1. Quick, efficient and professional response within 24 hours, 14 hours online services.
2. 10 years manufacturing experience in agriculture field.
3. Technical support and solution by chief engineer.
4. Strict quality control system & team, high reputation in the market.
5. Full range of irrigation products for choice.
6. OEM/ODM services.
7. Accept sample order before Mass Order.
8. Multilingual communication services (English, Spanish, French, Portuguese, Japanese. etc.)
