Home > Products > WATER PUMP > 2inch self-priming diesel water pump

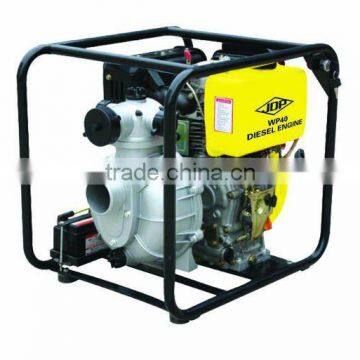

2inch self-priming diesel water pump
Negotiable
/ Set
20 Sets(Min.Order)
- 1000 Set / Sets per Month
- shanghai
You May Like
-
Diesel Engine Driven Water Pump (VDP50/VDP80/VDP100) Displacement 19m3/h
-
6.5HP Diesel Engine Driven Water Pump (Max.Flow Rate 22/32m3/h)
-
6.5HP Gasoline Engine Driven Water Pump (Max.Flow Rate 60m3/h)
-
6.5HP Gasoline Engine Driven Water Pump wp30 (Max.Flow Rate 60m3/h)
-
1.8HP Gasoline Engine mini Water Pump wp10 (Max.Flow Rate 7m3/h)
-
1.8kw/2.94kw/4.41kw Diesel Engine Driven Water Pump(Max.Flow Rate 19m3/h)
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JDP | |
| Model Number | WP20 | Theory | Centrifugal Pump | |
| Structure | Other | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Other | |
| Application | Other |
Product Description
Specifications
2inch self-priming diesel water pump1.JDP170F(E) engien
2.lift:25m
3.Suction:7m
4.recoil start
| Model | WP20D(E) | |
| Outlet Size(mm/inch) | 2/50 | |
| Inlet Size(mm/inch) | 2/50 | |
| Max.Flow Rate m3/h/GPM | 30/132 | |
| Lift(m/ft) | 25/82 | |
| Suction(m/ft) | 7/23 | |
| Engine Model | JDP170F(E) | |
| Type | Direct injection,Single-cylinder,Vertical, 4-stroke,Air-cooled,Diesel | |
| Displacement(cc) | 211 | |
| Bore×Stroke(mm/inch) | 70×55(2.76×2.11) | |
| Continuous Output(hp/rpm) | 3.4/3000 3.8/3600 | |
| Max.Output(hp/rpm) | 4.8/3000 4.2/3600 | |
| Starting System | Recoil and hand-operated | |
| Fuel Tank Capacity(L/gal.) | 2.5/0.7 | |
| Lub Oil Capacity(L/gal.) | 0.75/0.2 | |
| Dimensions(mm/inch) | 500×420×540 20×17×21 | |
| N.W/G.W(kg/lb) | 44/45/98/100 | |
