Home > Products > WATER PUMP > 12inch Diesel Water pump

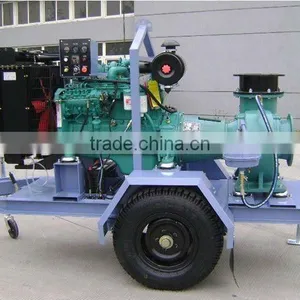

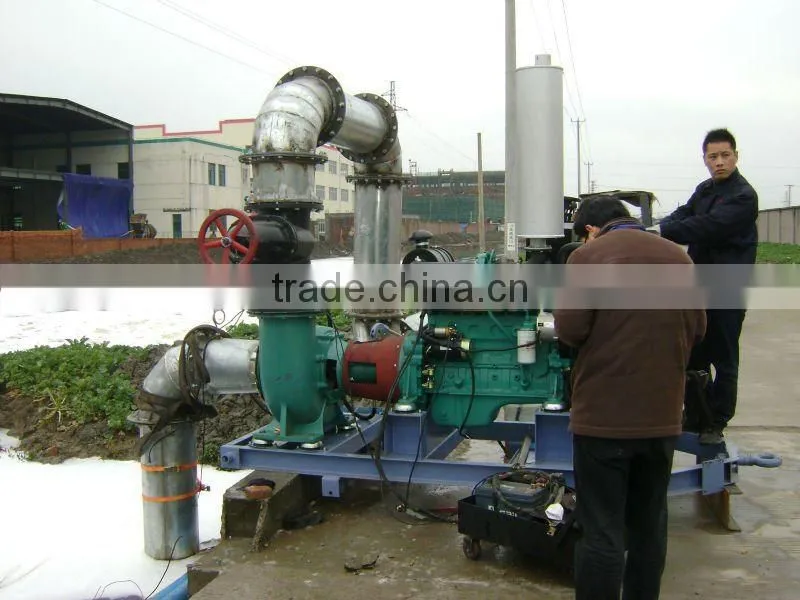

12inch Diesel Water pump
Negotiable
/ Set
2 Sets(Min.Order)
- 200 Set / Sets per Month
- Shanghai
You May Like
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | JDP | Model Number: | 300HW |
Theory: | Centrifugal Pump | Structure: | Other, Mixed flow pump | Usage: | Water |
Power: | Other, 100kw | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | Low Pressure | Application: | Other |
Product Description
Specifications
12inch Diesel Water pump1.Cummins engine
2.Mechanical Govern
3.Low Displacement
4.AD Injection Pump
WATER PUMP FOR irrigation,drain away water,fire-fighting . Flow:1600CBM, HEAD:17M,SUCTION:4M, POWER: 100KW, SPEED:1800RPM.
WATER PUMP POWERED BY CUMMINS ENGINE FOR irrigation,drain away water,fire-fighting .
MODEL:JDP-300HW.
Flow:1600CBM,
HEAD:17M,
SUCTION:4M,
POWER: 100KW,
SPEED:1800RPM.
CUMMINS DIESEL ENGINE SPECIFICATIONS | |
Model | 6BT5.9-G1 |
Engine Type | 6 Cylinders In-line,4 Cycle,Turbocharged |
Bore×Stroke | 102mm×120mm |
Displacement | 5.9 Liters |
Compression Ratio | 17.5/1 |
Rated Speed | 1800 rpm |
Prime Power | 100kW/ 115KW |
Fuel Injection Pump | AD Injection Pump |
Governor | Mechanical Governor |
Steady Speed Droop | ≤5% |
Lubricant Capacity | 16.4 Liters |
Coolant Capacity | 9.1 Liters |
Fuel consumption | ≤215 g/kw/h |
Net Weight | 420kg |
Overall Dimension(L×W×H) | 996×711×992mm |
Coolant Intake Size | Φ58mm |
Coolant Outlet Size | Φ45mm |
Cooling Way | Forced Water Cooling Cycle |
PUMP SPECIFICATIONS | ||||
Model: | 300HW | Flow Rate: | 0.45m³/s | |
Type: | 12 inch,mixed-flow pump | Lift: | 17m/ft |
