5HP / 6HP Gasoline Water Pump

Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

JDP

Model Number:

WP20

Suzhou Jinding Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JDP

Model Number WP20

Theory Other

Structure Other

Usage Water

Power Other

Standard or Nonstandard Standard

Fuel Gasoline

Pressure Other

Application Other

Specifications

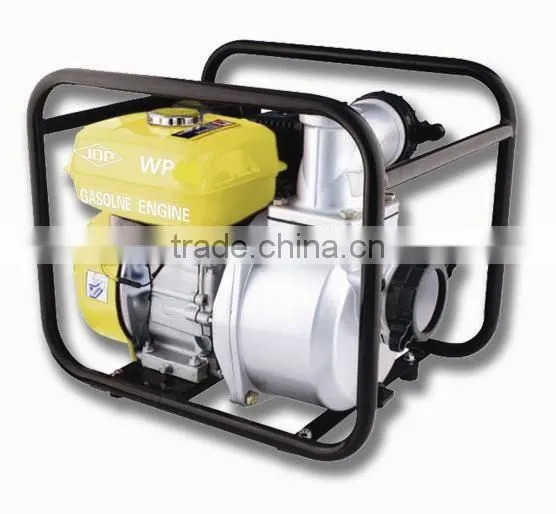

5HP / 6HP gasoline water pump
1.gasoline engine
2.aluminium pump
3.round pipe frame

Model	WP-20	WP-30	WP-40
Outlet Size(mm/inch)	50/2	80/3	100/4
Inlet Size(mm/inch)	50/2	80/3	100/4
Speed(rpm)_	3600	3600	3600
Max.Flow Rate m3/h/GPM	21/92.5	60/264	80/353
Lift(m/ft)	30/98	30/98	25/82
Suction(m/ft)	7/23	7/23	7/23
Engine Model	JDP168F(E)	JDP168FA(E)	JDP182F(E)
Max.Output(HP)	5.5	6.5	11
Engine Type	4-Stroke,25°inclined Single-Cylinder with Air-cooled
Bore×Stroke(mm/inch)	68×45/2.67×1.77	68×54/2.67×2.12	82×64/3.2×2.5
Displacement(ml)	163	196	338
Ompression Ratio	8.5:1	8.5:1	8:01
Max Torque(N.m/rpm)	10.8N.m/2500rpm	13.0N.m/2500rpm	23.5N.m/2500rpm
Starting System	Recoil and hand-operated/Electric start
Ignition System	Non-contact transistorized ignition(T.C.I)
Fuel Tank Capacity(L/gal.)	3.6/0.95		6.5/1.72
Fuel Consumption(g/hp.h)	290
Oil Capacity(L/gal.)	0.6/0.16		1.1/0.29
Package Dimensions(mm/inch)	480×370×405/19×15×16	510×395×405/20×16×16.5	650×460×530/26×18×21
N.W/G.W(kg/lb)	25/26/55/57	28.5/29.5/63/65	44/45/97/100
