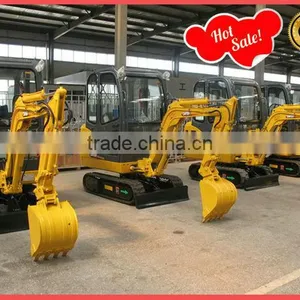

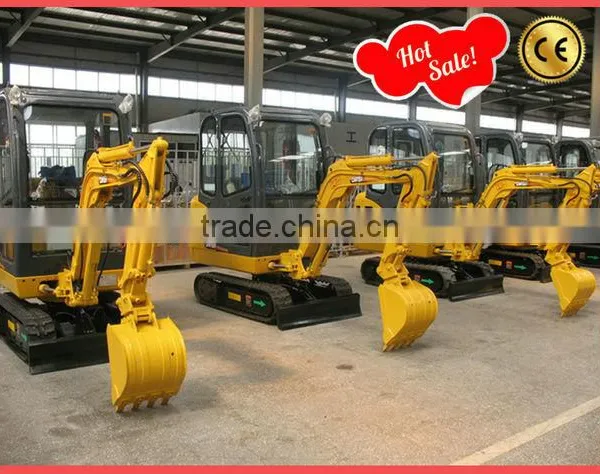

Hot Sale Crawler Excavator 18-7B With CE

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

GY18-7B

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name CT

Model Number GY18-7B

Condition New

Moving Type Crawler Excavator

Operating Weight 1800KG

Bucket capacity 0.06-0.1CBM

Maximum Digging Height 3149mm

Maximum Digging Depth 2091mm

Max Digging Radius 3680MM

Rated Speed 2.15/3.83KM/H

Certification CE

After-sales Service Provided No overseas service provided

Specifications

1.crawler excavator GY18-7B

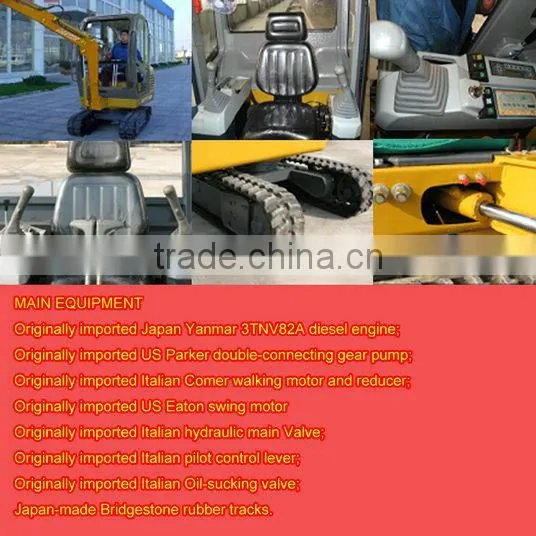

2.engine:Japan Yanmar 3TNV82A diesel engine
3.rated power:16KW
4.bucket capacity:0.06-0.1cbm

Specifications	Item	GY 18-7B
	Power/speed	16KW/2200rpm
	Operating weight	1.8t
	Bucket capacity	0.06-0.1m3 Standard
	Bucket digging force	11.44kn
	Arm digging force	8.04kn
	Pressure of Hydraulic system	16mpa
	Hydraulic pump	10+10 (ml/r)
	Swing Speed	10.6rpm
	Traveling speed	2.15/3.83km
	Tracking force	11.54kn
	Grade ability	30°
	Ground pressure	23 kpa
	Swing angle of arm	Left 65°/right 52°

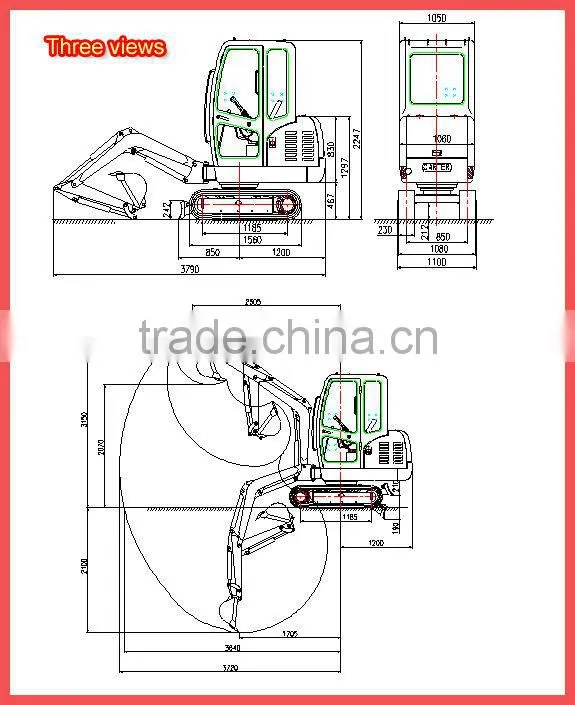

Dimensions	Undercarriage Width	1050 mm
	Center clearance between tracks	850 mm
	Undercarriage Width	1080 mm
	Length on the ground	1260 mm
	Dozer height	242 mm
	Dozer width	1100 mm
	Dozer lifting height	210 mm
	Dozer cutting depth	192 mm
	Rear swing radius	1200 mm
	overall length for transportation	3760 mm
	Overall height	2250 mm
	Clearance under upper structure	467 mm
	Clearance under engine cover	1297 mm
	Front swing radius	1612 mm
	Track width	230 mm
Working range	Max digging height	3149 mm
	Max. digging radius	3680 mm
	Max. digging depth	2091 mm
	Max. dumping height	2076 mm
	Max digging radius on the ground	3602 mm
