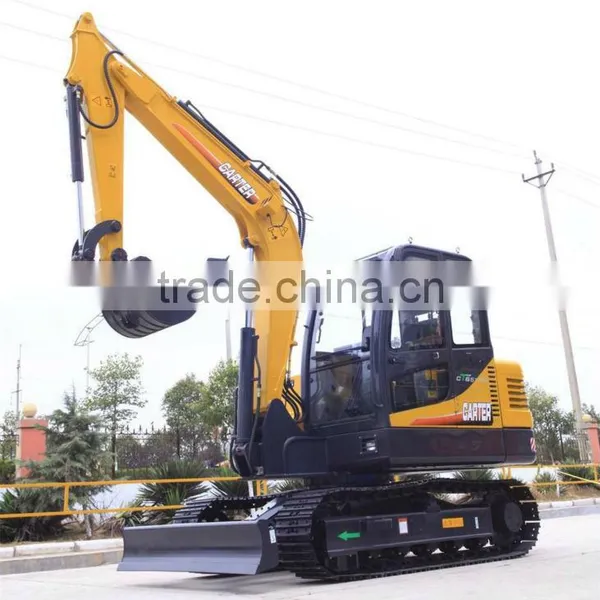

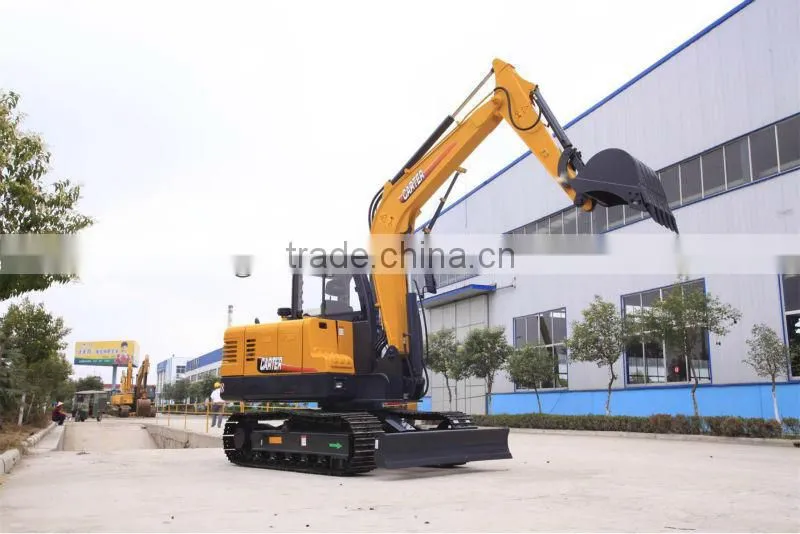

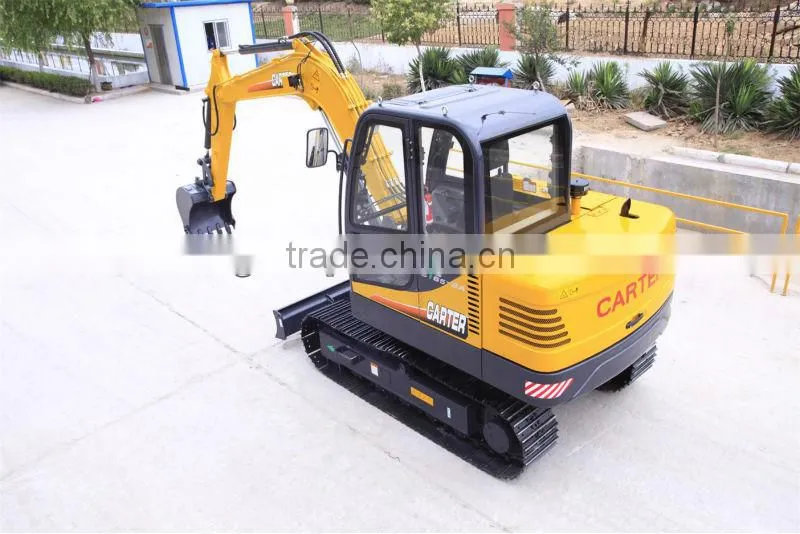

CE Certificate Catter Crawler Excavator 65-8A/8B

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

CT65-8A/8B

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name CT

Model Number CT65-8A/8B

Condition New

Moving Type Crawler Excavator

Operating Weight 6200KG

Bucket capacity 0.25CBM

Maximum Digging Height 5785mm

Maximum Digging Depth 3785mm

Machine Weight 6200KG

Max Digging Radius 6245mm

Rated Speed 4.0km/2.5h

Certification CE

After-sales Service Provided No overseas service provided

Specifications

1.crawler excavator 65-8A/8B
2.engine:Japan Yanmar 4TNV94L(35.5KW) or Cummins B3.3
(45KW)
3. bucket capacity:0.25M3

Specification of CT65-8A/CT65-8B with cabin
Operate weight kg		6200
Bucket capacity M3		0.25
CT65-8A	Engine model	Cummins B3.3 /2200rpm
	Engine power (kw)	45
CT65-8B	Engine model	YANMAR 4TNV94L @38kw
	Engine power (kw)	35.5
Swing spreed (rpm)		10
Ground pressure Kpa)		34
Travel speed (km/h)		4.0/2.5
Tracking force (kn)		49.3
Gradeability (°)		35
Main dimensions
Upperstrcuture witdth (mm)		1785
Undercarriage width (mm)		1880
Cabinet hight (mm)		2650
Rear swing radius (mm)		1700
Ground clearance (mm)		400
Working range
Max.digging radius (mm)		6245
Max.digging depth (mm)		3785
Max.digging height (mm)		5785
Max.dumping height (mm)		4095
Max.dozer cutting depth (mm)		595
Max.dozer lifting hight (mm)		300
Standard Equipment
Japanese KYB main pump
Japanese KYB valve,tracking motor
Korea Doosan Travel Motor
Italian valve ,pilot control lever
