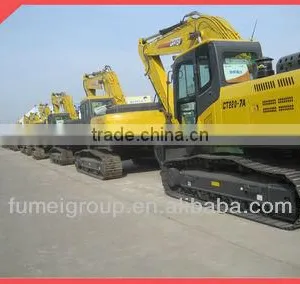

CT220-7A CE Certificate Crawler Excavator

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

CT220-7A

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name CT

Model Number CT220-7A

Condition New

Moving Type Crawler Excavator

Operating Weight 21800KG

Bucket capacity 0.92CBM

Maximum Digging Height 9960mm

Maximum Digging Depth 6600mm

Rated Speed 4.8KM/H

Certification CE

After-sales Service Provided No overseas service provided

Specifications

1.crawler excavator CT220-7A
2.engine:Cummins 6B5.9-C
3.rated power:112KW
4.bucket capacity:0.92cbm


Specification of CT220-7A/CT220-8c with cabin
Operate weight kg		21800
Bucket capacity M3		0.92
CT220-7A	Engine model	Cummins 6B5.9-C
	Engine power(kw)	112kw/1950rpm
Ground pressure (Kpa)		45
Travel speed (km/h)		4.8/3.3
Gradeability (°)		35
Arm digging force (KN)		115
Fuel tank capacity(L)		410
Hydraulic tank capacity(L)		230
Main dimensions
Upperstrcuture witdth (mm)		2700
Undercarriage width (mm)		2810
Cabinet hight (mm)		3010
Rear swing radius (mm)		2940
Track gauge (mm)		2210
Ground clearance (mm)		465
Working range
Max.digging reach (mm)		9940
Max.digging depth (mm)		6600
Max.digging height (mm)		9960
Max.dumping height (mm)		7135
Max.vertical wall digging depth (mm)		6100
Min,swing radius (mm)		3203
Standard Equipment
Japanese Kawasaki main pump
Japanese KYB valve,tracking motor
Italian valve ,pilot control lever

Warranty,Payment and Delivery
1.Warranty Term: 1200 working hours or 1 year, whichever come first
2.Payment Term: T/T 30% deposit
3.Time of delivery: 30 days for models with standard equipment, after receipt of 30% T/T down payment.
