Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > Crawler Excavator CT45-7B CE Certificate

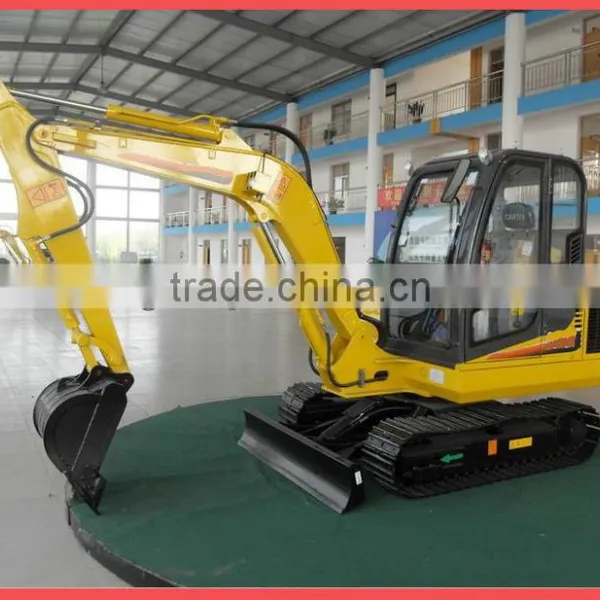

Crawler Excavator CT45-7B CE Certificate

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

CT45-7B

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name CT

Model Number CT45-7B

Condition New

Moving Type Crawler Excavator

Bucket capacity 0.17CBM

Maximum Digging Height 5030mm

Maximum Digging Depth 3405mm

Machine Weight 4200KG

Max Digging Radius 5530MM

Rated Speed 4.4/2.7KM/H

Certification CE

After-sales Service Provided No overseas service provided

Specifications

1.crawler excavator CT45-7B

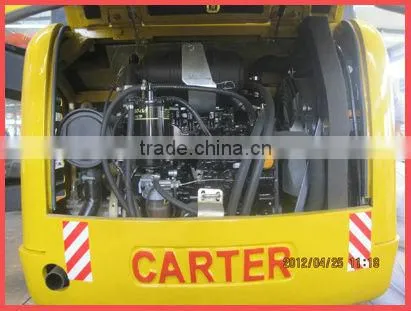

2.engine:YANMAR 4TNV88
3.rated power:27KW
4.bucket capacity:0.17CBM

Engine Model	YANMAR 4TNV88
Engine power	27KW
WEIGHT:
Operating weight:	4200KG
CAPACITY:

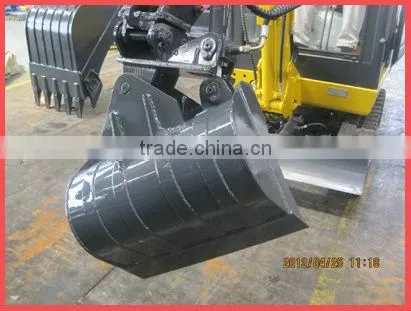

Bucket capacity:	0.17m3
DIMENSIONS:
Upperstructure width (mm)	1600
Undercarriage width (mm)	1750
Cabinet height (mm)	2455
Rear swing radius (mm)	1600
Ground clearance (mm)	350
Clearance under counter weight(mm)	585
Tumbler distance(mm)	1710
Overall length for transportation(mm)	5500
Max. digging radius at ground level(mm)	5420
Max vertical digging depth(mm)	2900
Max. digging radius (mm)	5530
Max. digging depth (mm)	3405
Max. digging height (mm)	5030
Max. dumping height (mm)	3410

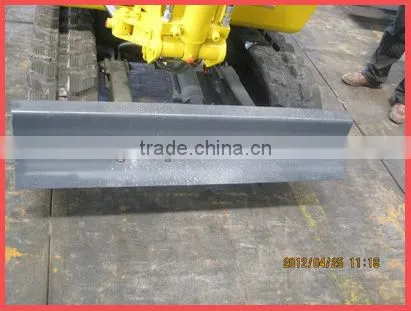

Max. dozer cutting depth (mm)	380
Max. dozer lifting height (mm)	255
HYDRAULIC SYSTEM:
Main pump	Japan made KYB main pump
Flow /pressure:	10.8L/min 2200RPM/4.9MPA
Working attachments:	Boom/Arm/Bucket
Overload pressure:	24.5MPa
PARAMETERS:
Swing speed:	11RPM
Travel speed:	4.4/2.7km/h
Tracking force:	34.1KN
Gradeability:	30(58%)
Bucket digging force:	23.7KN
Arm digging force:	20.4KN
