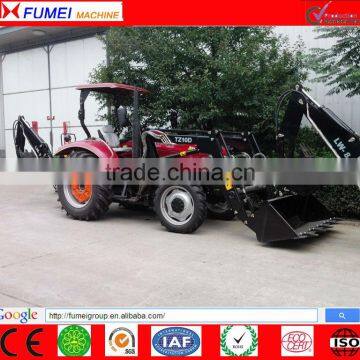

mini tractor loader with backhoe
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Brand Name | FM | |
| Model Number | LW-6E, LW-7E, LW-8E, LW-10E | Place of Origin | Shandong, China | |
| Type | Backhoe Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 3200*3770*3920 mm | Rated Load | 350-1050 kg | |
| Certification | CE Certificate | Warranty | 12 months | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications
1) Durable Hydraulic Components2) Self-owned Hydraulic System (PTO Pump)
3) 6-way Hydraulic Control Platform
Main Specifications of Backhoe Series | ||||
Model of Backhoe |
| LW-6 (HW-03) | LW-7 (HW-05) | |
Matching Tractor | Kw (hp) | 14.7~22.1(20~30) | 22.1~36.8 (30~50) | |
Max. Digging Depth | mm | 1700 | 2100 | |
Max. Unloading Height | mm | 1700 | 2300 | |
Max. Digging Height | mm | 2700 | 3300 | |
Max. Digging Depth Flat Bottom | mm | 1600 | 2000 | |
Max. Swing Angle | (° ) | 180° | 180° | |
Bucket Rotation Angle | (° ) | 160° | 160° | |
Bucket Capacity | m3 | 0.03 | 0.048 | |
Weight | kg | 450 | 500 | |
Main Specifications of Backhoe Series | ||||
Model of Backhoe |
| LW-8 (HW-06) | LW-12 (HW-12) | |
Matching Tractor | Kw (hp) | 36.8~58.8 (50~80) | 88.2~102.9 (120~140) | |
Max. Digging Depth | mm | 2600 | 3600 | |
Max. Unloading Height | mm | 2500 | 3200 | |
Max. Digging Height | mm | 3400 | 4500 | |
Max. Digging Depth Flat Bottom | mm | 2500 | 3500 | |
Max. Swing Angle | (° ) | 180° | 180° | |
Bucket Rotation Angle | (° ) | 160° | 174° | |
Bucket Capacity | m3 | 0.06 | 0.2 | |
Weight | kg | 540 | 1050 | |
BACKHOE SERIES
PERFORMANCE
1.It’s used for ditching in farms and grazing land,digging pool ,cleaning waterways as well as assistant excavating work in construction and building roads.
2.Hydraulic transmission is used, featured with compact structure,flexibility,convenient operation and quick mounting and dismounting It uses hydraulic oil
commonly with tractor.The hydraulic elements are standardized,convenient for operation and service.
3.To better accomplish different kinds of work,buckets of different sizes can be selected and mounted on it
Features:
1 Different sizes Buckets are optional
2 CE Certificate
3 Compact structure with high quality materials
4 Flexibility and convenient operation;
5 Quick mounting and dismounting
Application:
LW Series Backhoe Excavator for tractor is widely used in farm, grazing land, construction etc, mainly in ditching, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
