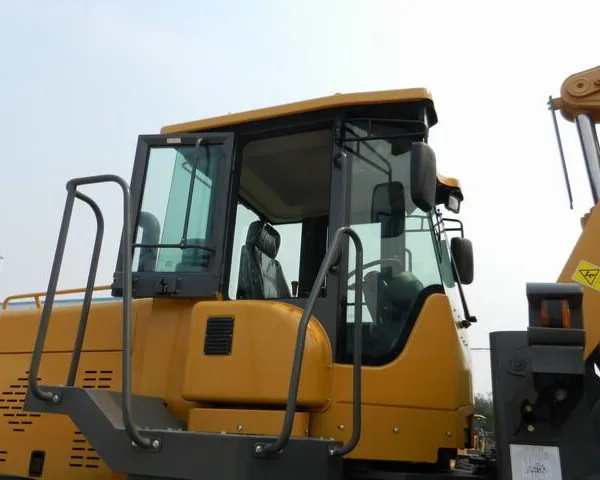

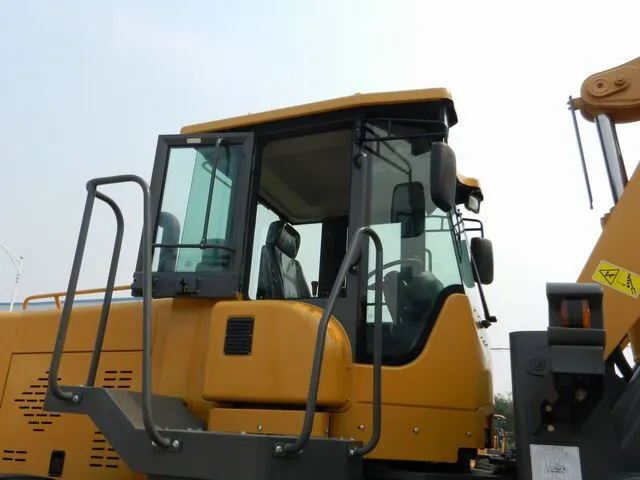

5 ton capacity compact wheel loader with heavy-duty bucket with bolt on teeth, enclosed cabin with adjustable suspension seat and digital radio & MP3 player, and top beacon

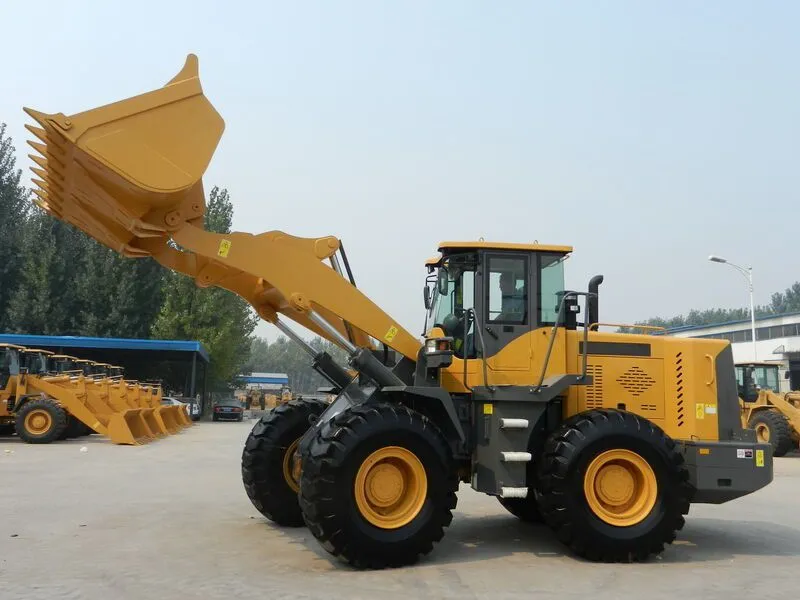

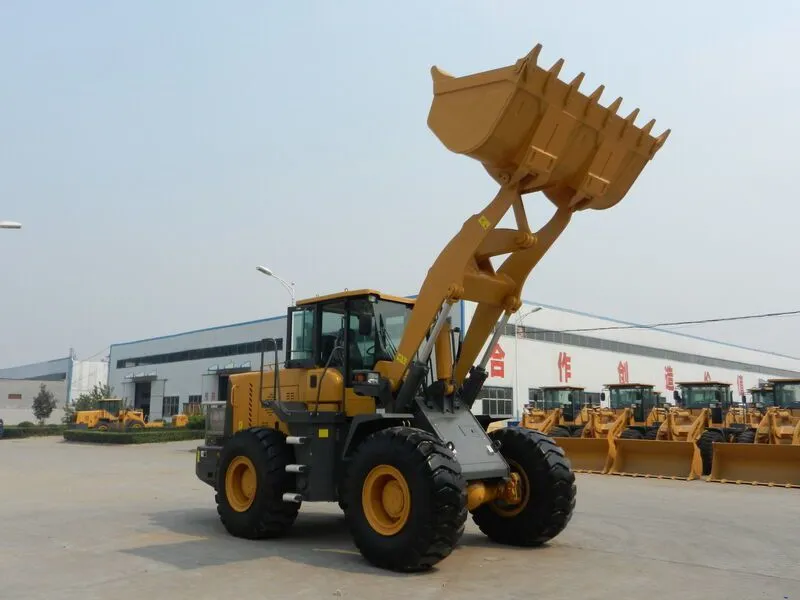

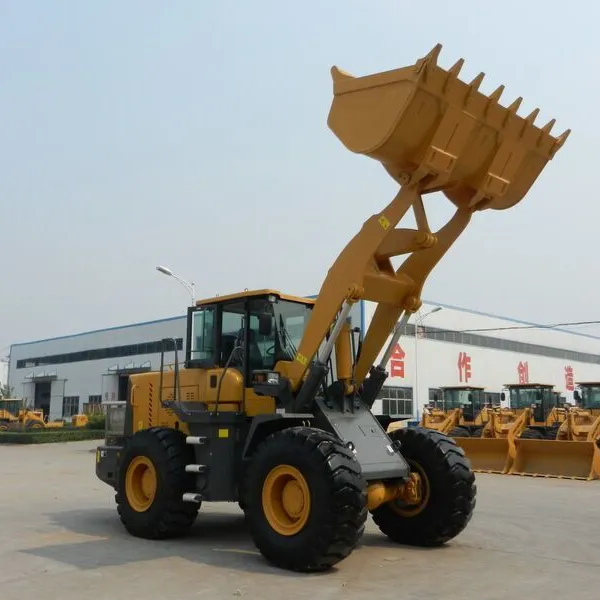

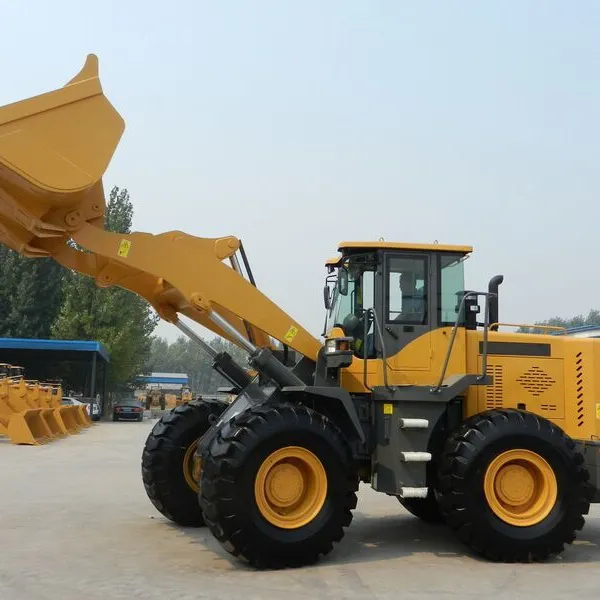

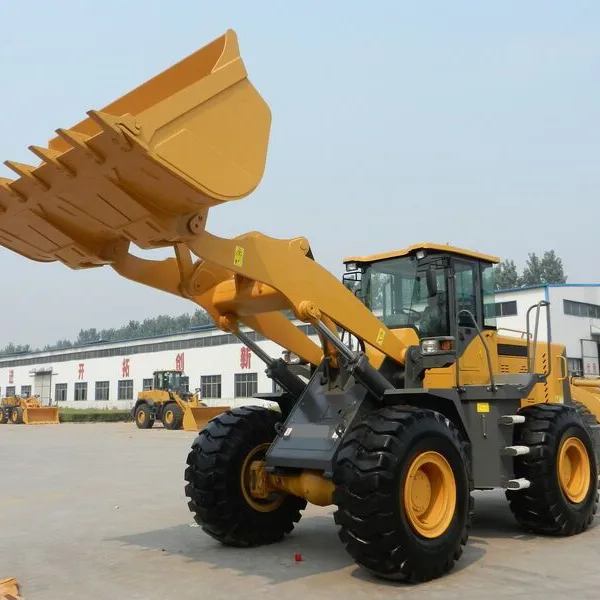

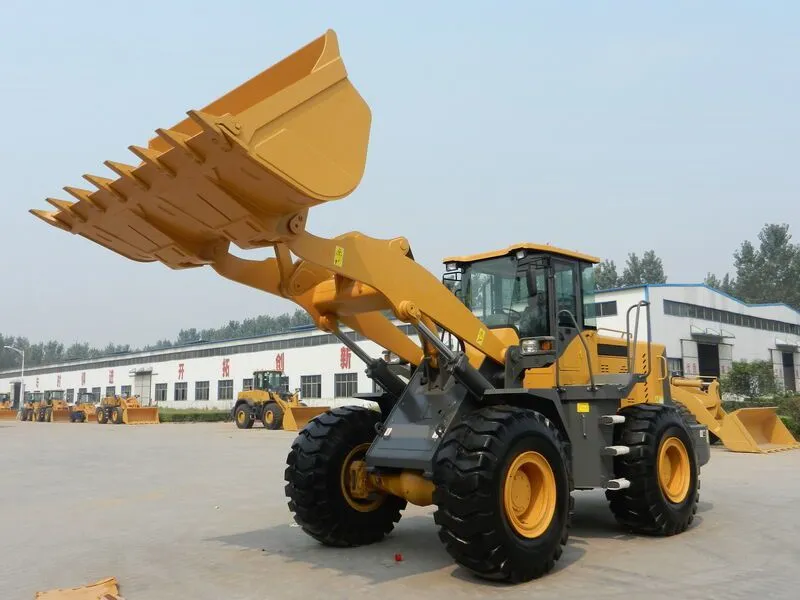

5.0T Font Wheel Loader ZL50F
Technical Specifications
1. Rated Load: 5000kg
2. Operating Weight: 17100kg
3. Rated Bucket Capacity: 3.0CBM
4. Max. Tractive Force: ≥ 152KN
5. Max. Breakout Force: ≥170KN
6. Max Gradeability: 30Degree
7. Max. Dumping Height: 3150mm
8. Max. Dumping Reach: 1250mm
9. Raising Time: ≤6.0s
10. Total Cycle Time: ≤11s
11. Overall Dimensions (L x W x H): 7920x3050x3400mm
12. Min. Turning Radius: 7760mm
13. Engine Model: WEICHAI STEYR WD10G220E11
14. Engine Type: In-line, Water Cooling, Dry Cylinder Fuel Injection Diesel Engine
15. Rated Engine Power: 162kW
16. Rated Engine Speed: 2200rpm
17. Transmission Mode: YJ375-X Hydraulic Torque Converter
18. Gearbox Mode: Countershaft Constant-Mesh Power Shift
19. Gear Shift: 4 Forward Shift, 2 Reverse Shift
20. Max. Speed: 41km/h
21. Main Reducing Mode of Drive Axle: Bevel Gear Grade 1 Reduction
22. Hub Reduction Mode of Drive Axle: Planetary Reduction Grade 1
23. Wheel Tread: 2250mm
24. Wheel Base: 3200mm
25. Min. Ground Clearance: 450mm
26. Drive Mode: 4-wheel Drive
27. Hydraulic System Working Pressure: 18Mpa
28. Fuel Tank Capacity: 300L
29. Service Brake: Foot Pedal Vacuum Booster, Air over Hydraulic Caliper Discc Brake on 4 Wheels
30. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
31. Tyre Type Specification: 23.5-25-16PR
32. Front Tyre Pressure: 0.40Mpa
33. Rear Tyre Pressure: 0.35Mpa
Optional Parts and Functions:
Canopy, Open Cabin, FOPS/ROPS, Air Conditioner, Reversing Camera, Hydraulic Quick Hitch, Extra Hydraulic Lines, LED Lights, and Floating Function, etc.
Note:
1. The technical specifications are for standard models only.
2. Other optional accessories and requirements are available upon request.
3. All photos are for reference only. Machines shown may include optional parts.
4. All specifications and design characteristics are subject to change without prior notice.
5. For all available loader attachments, please refer to our Loader Attachments Catalogue.
6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
