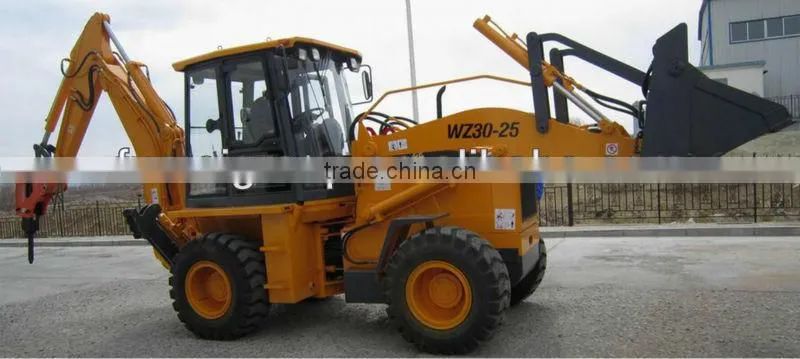

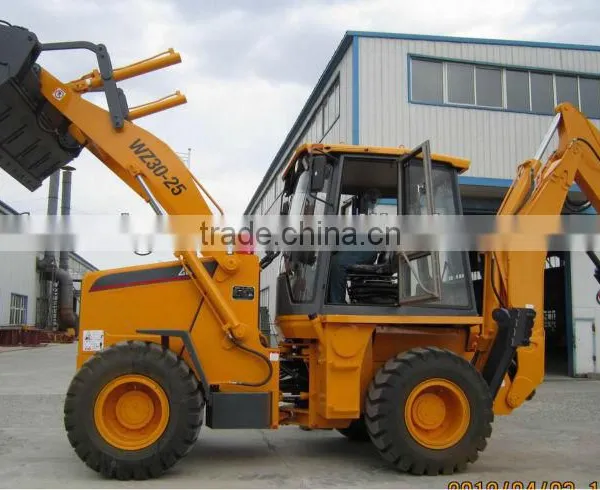

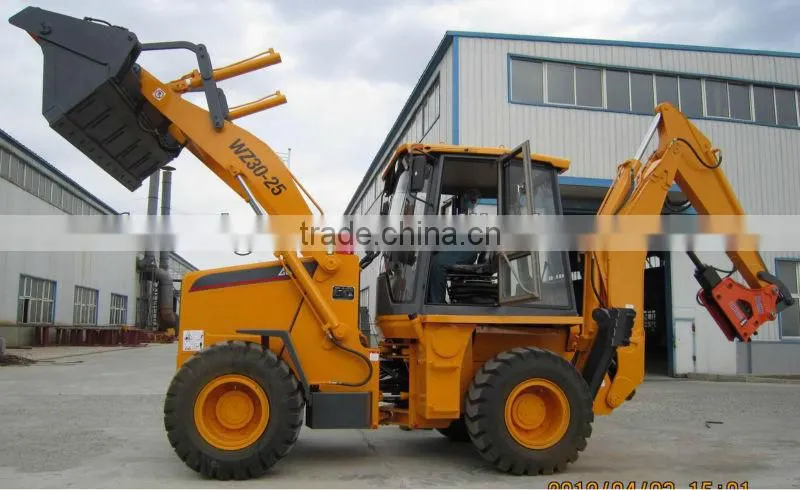

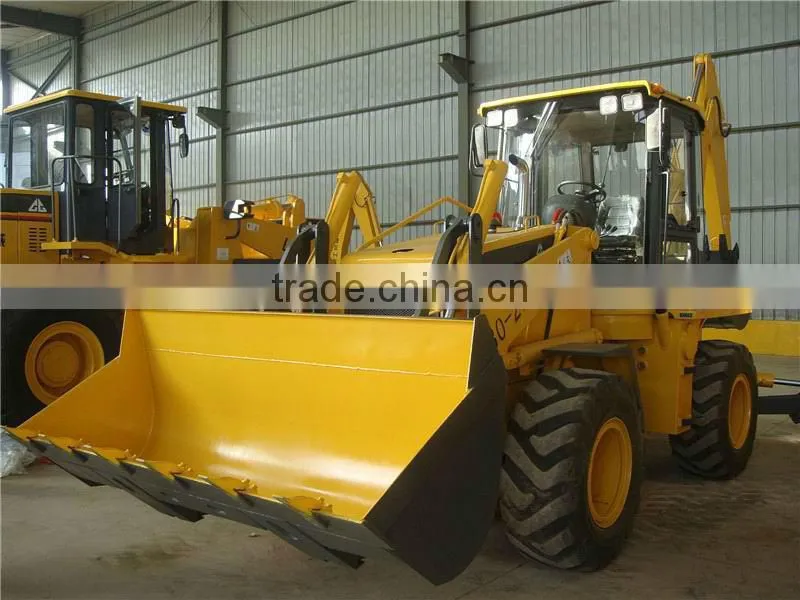

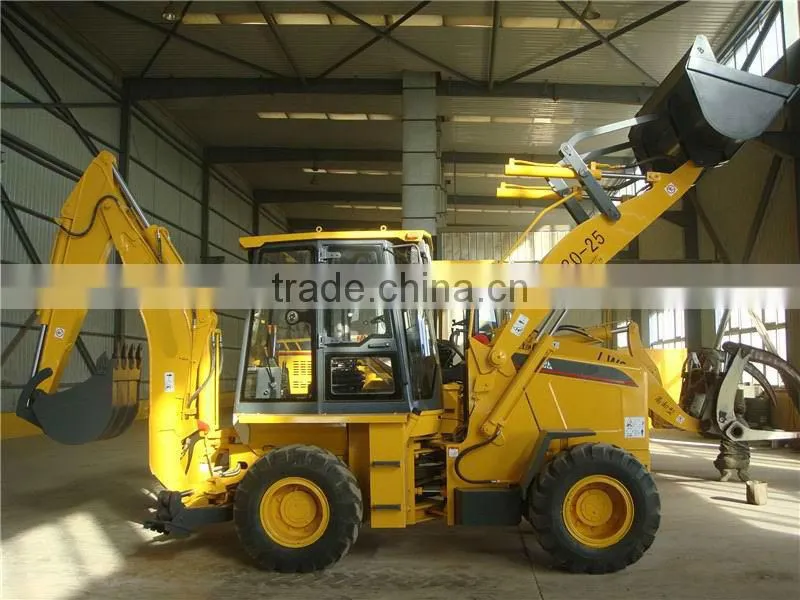

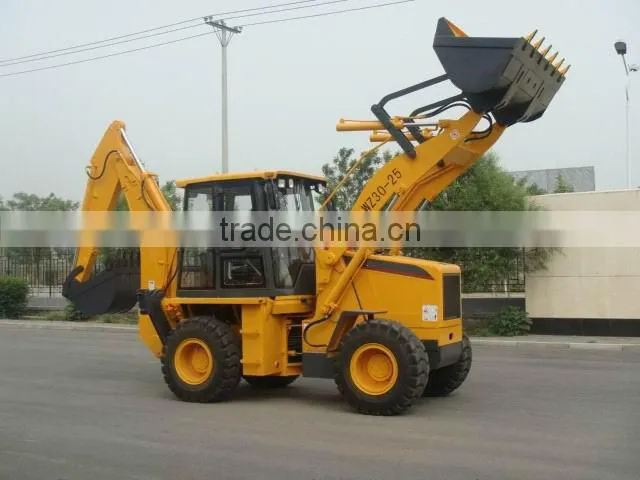

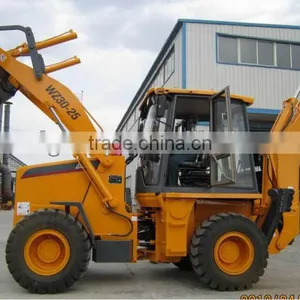

CE Approve Small Backhoe Loader Wz30-25 With ce Approve Cummins Engine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Model Number:

WZ30-25

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name WM

Model Number WZ30-25

Place of Origin Shandong, China

Type Backhoe Loader

Moving Type Other, Backhoe loader

Dimension(Long * Breadth * High) 7130 x 2200 x 3850mm

Rated Load 7600 KG

Certification CE approve

Warranty 2 year

Specifications

1)Engine: CUMMINS 4BT3.9-C100,74KW
2)weight:7600kgs
3)bucket:1.0M3
4)certificate: CE approve

Wheelbase		2380mm
Tread		1590mm
Tyre	Specification	16/70-20 10PR with tube
Tyre	Air Pressure	Front 0.32Mpa Rear 0.28Mpa
Operation Weight		7600 KGS
Figure Dimension	L x W x H	7130 x 2200 x 3850mm
Brake System	Air Pressure of Brake System	0.6 - 0.8 Mpa
Brake System	Service Brake	Air-hydraulic Combination
Transmission System		Type of Torque Converter: YJ280 three elements/single stage/single phase
		Torque Ratio: 3.1
		Oil Pressure of Torque Converter Inlet : 0.25 - 0.3 Mpa
		Type of Gearbox: Planetary Gear, power shift
Diesel Engine		Model: CUMMINS 4BT3.9-C100
		Rated Power: 74 kw
		Rating Rev. : 2400r/min
Axles		Type of Main Transmission : spur gear, single stage
		Transmission Ratio : 26
		Type of Final Reducer : Planetary gear shift, single stage
Oil Capacity		Fuel Tank : 90L
		Hydraulic System : 130L
		Engine Oil : 11.5L
		Gearbox: 20 L
		Axle and Final Reducer : 30 L
		Brake System : 3.5 L
