Pellet Production Line / CE , ISO 0.2-4T/H Wood Pellet Production Line Price

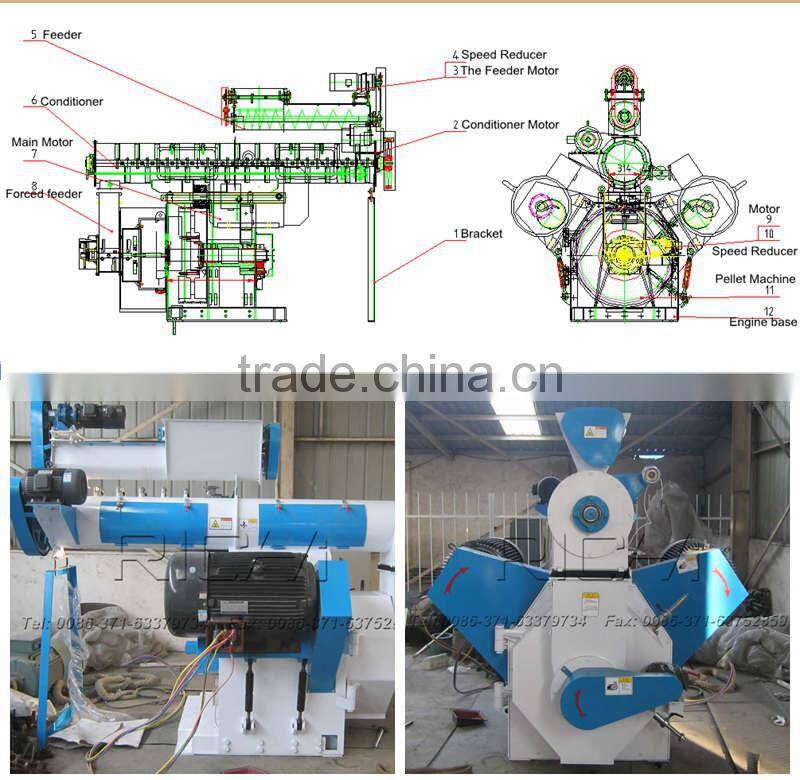

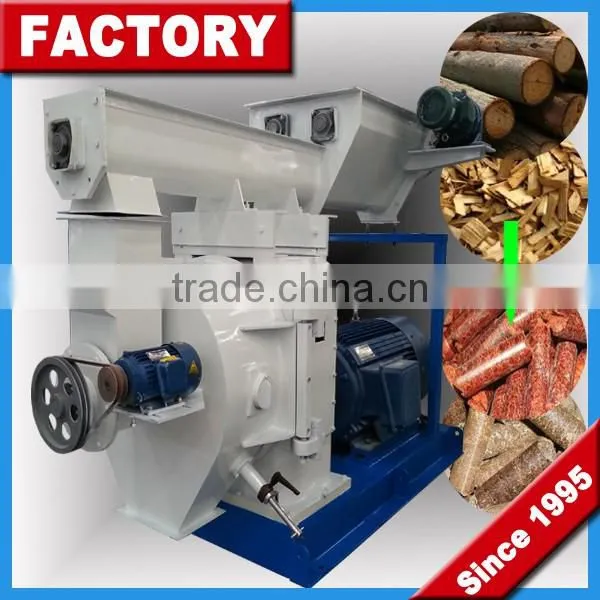

The Main Machine--Wood Pellet Mill
Features of Complete Wood Pellet Production Line :
Technical Parameters of Complete Wood Pellet Production Line:
Name |
Wood pellet production line |
Capacity |
1-4 ton/hour |
Color |
blue and white |
Main Motor Power |
55kw |
Pellet feed size |
6~12mm |
Form rate |
≥98% |
Water content of the product |
≤10% |
Steam pressure |
0.4~0.6Mpa |
Staffing |
2-3 people |
Production Section of Wood Pellet Production Line
Chipper → Grinder →Dry Machine → Pellet Mill → Counterflow Cooler → Automatic Weighing and Packing Machine

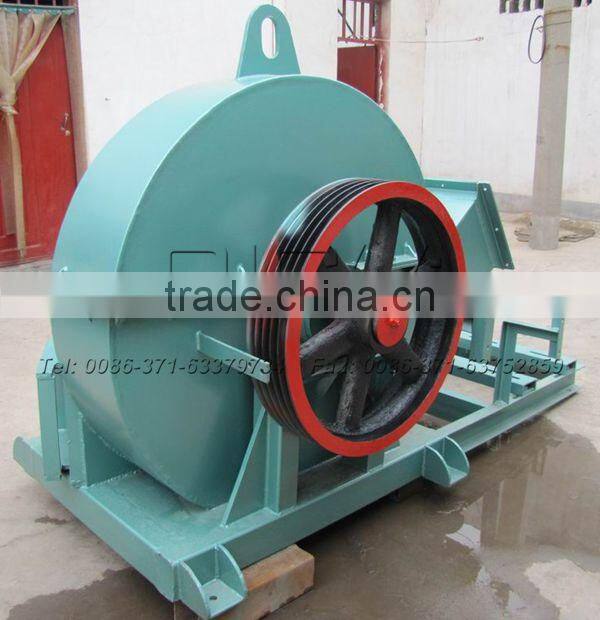

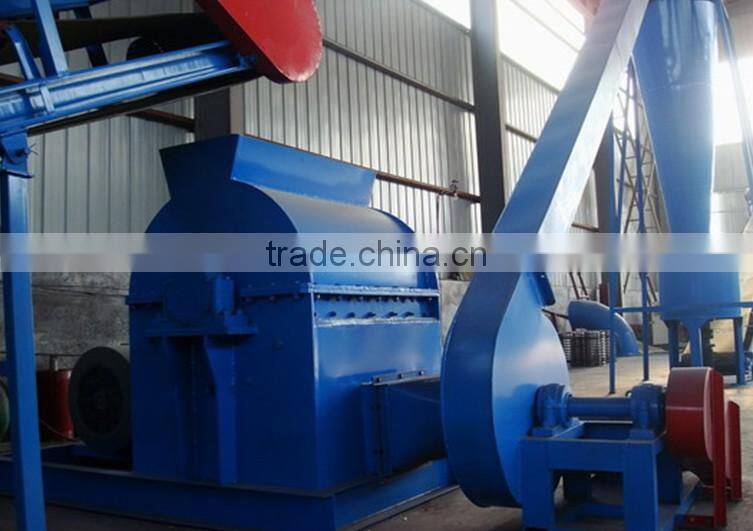

1. Raw material receiving, chipping and crushing
The equipments of this section are belt conveyor,crusher, fan,discharger,airlock and the,pulse dust collector.
The process of this section is :
Belt conveyor take the 1-20cm raw wood to the crusher, Adjust the feeding speed of the
belt conveyor according to the crusher’s load current, can ensure the full load working of the crusher.
The crusher is capable for cutting the raw wood into chips and then crush the chips into powder.
The fineness of the powder can be adjusted by using different Screen hole. Powders are then
conveyed to the next section by the wind convey system of combined fan, discharger and airlocks.
2. Grinding Section
The equipments of this section are belt conveyor, hammer mill.

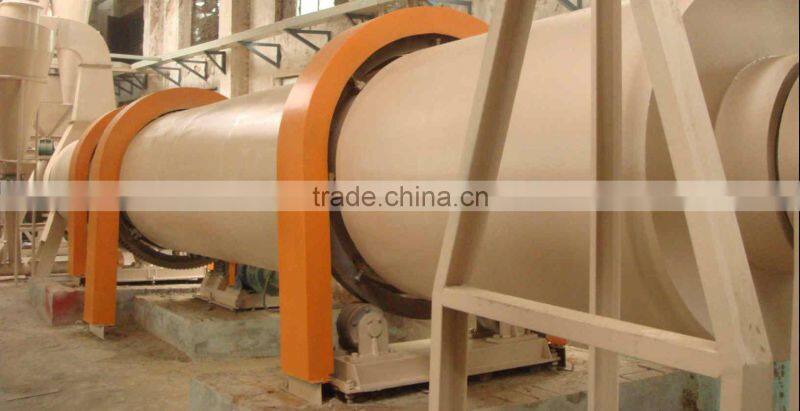

3. Drying Section
The equipments of this section are bin for dryer, screw feeder, hot air stove, drum dryer, fan,
discharger, airlock and belt conveyor. The raw material moisture greater than 12% .
The process of this section is: materials go through the screw feeder into the drum dryer,speed controlled as
above. Hot wind from the stove blow across the materials, materials are carried and threw up in the drum,
realizing intense heat exchange. So the materials are dried for the next section.

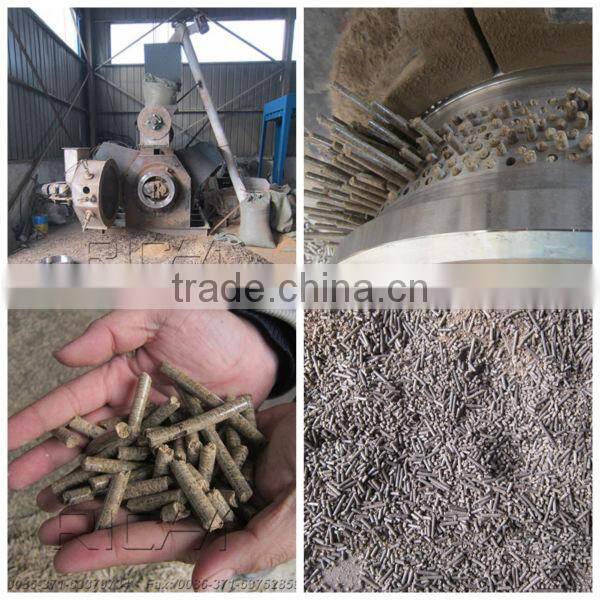

4. Pelletizing Section
The equipment of this section is permanent magnetic tube, bin for pellet mill, pellet mill,belt conveyor.
The process is:material for pelletized go through the permanent magnetic tube(deironing ) into the bin for
pellet mill. Wood powder go through the feeders into the pellet mill to be pressed into pellet, size of the pellet can be
changed by different ring die. Pellets (80°C) go into the counterflow cooler to be cooled by air counterflow.

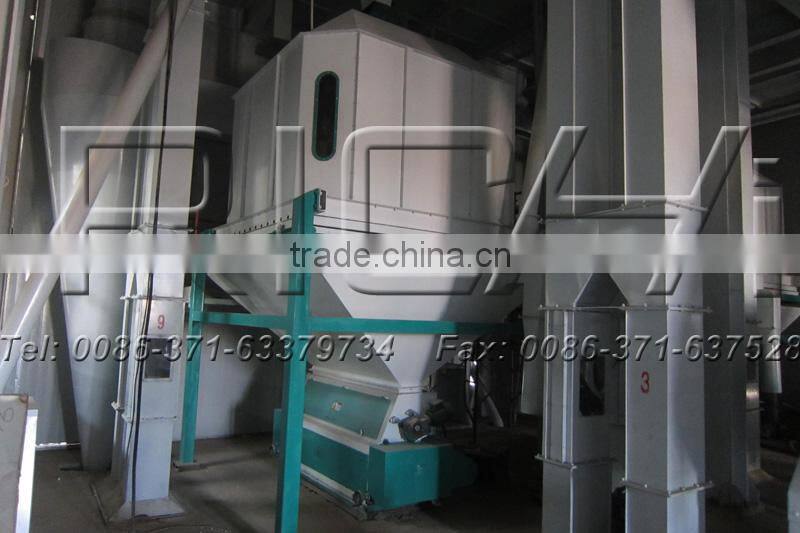

5. Cooling and Screening Section
The main equipments of this section is Counter-flow Cooler and Viberating screen.
The cooler is used to reduce the temperature and moisture of the pellets, thus to acquire better hardness and
strength. Also it can enhance the transport ability and storage ability.

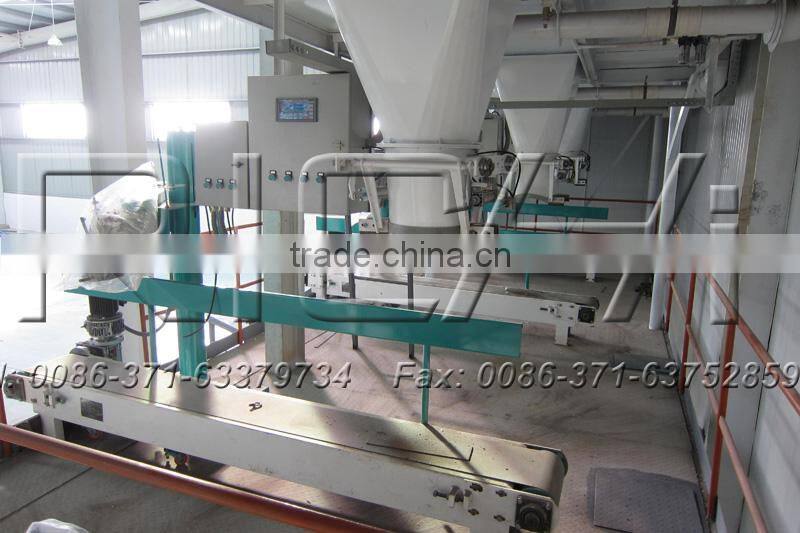

6. Packing Section
After cooling, wood pellet would be packed into bags in order to avoid affected with damp. Packed pellet would
be transferred by truck and sold.

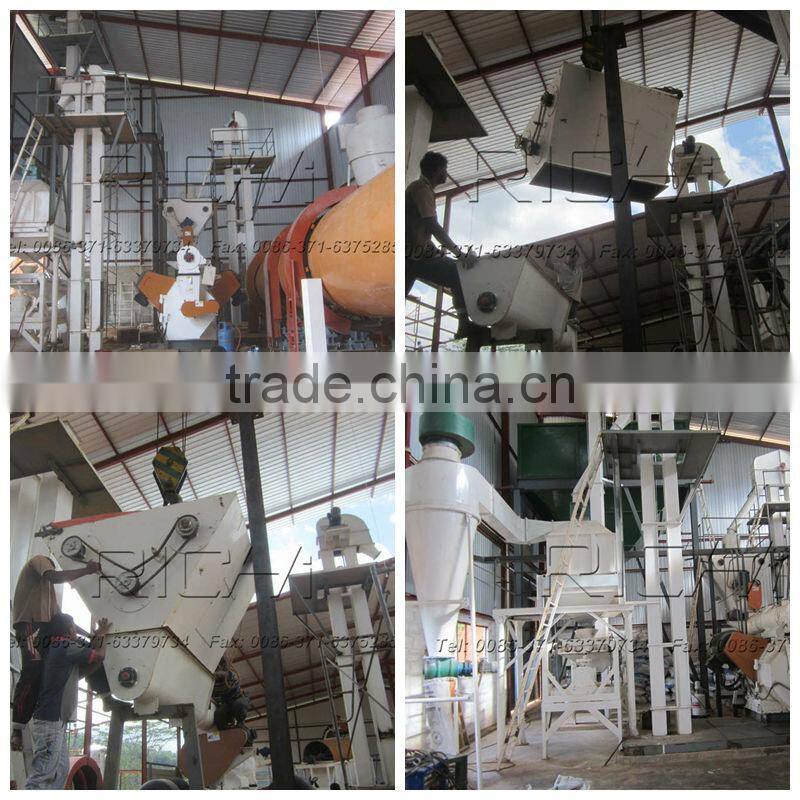

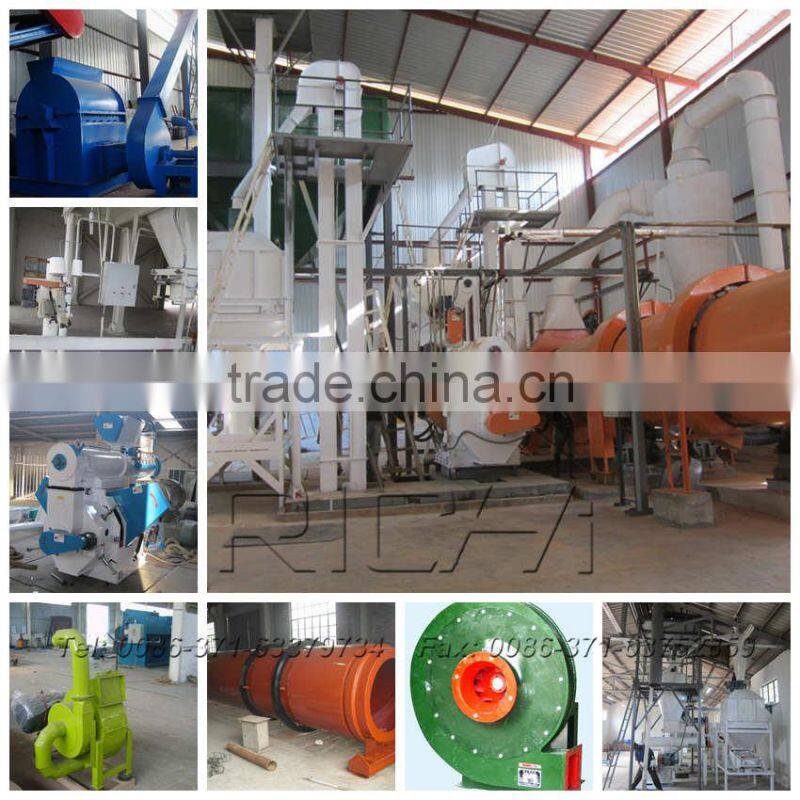

Picture of Complete Wood Pellet Production Line:
We are manufacturing complete wood pellet production line , biomass pellet production line, rice husk pellet production line and so on, and our all products have got CE and ISO9001:2000 Certificate.
Project Case:
About Us:
Henan Richi Machinery Co., Ltd was established in 1990.
After 23 years’ development and innovation since our factory established, we are becoming more and more professional
in manufacture and installation. During those years, our factory have obtained over 20 Product Patents in the pellet series
machines,such as in the crusher, curing machine, water feeder, and the precleaners. The detailed patent numbers can be
found in our patent column.
About our Service:
1.We insist on "Quality is the soul of company", we own outstanding R&D team with the sense of innovation
and cooperation.
2.Our professional service includes: Free training, Guidance Installation and Debugging.
3.Guaranteed Time: One Year (Calculated from the goods arrived the destination port.
4.If you have any question, please contact us freely. Our after-sales service team on line ,we will do the
best to accomplish your sincere requirement on time.
