20 year experience manufacturer offer 1-1.5 ton complete wood pellet production line for sale
Dear friend, if this model is not suitable for you, don't worry,
Leave a message at the buttom, tell me your detail requirement, I will show our other model to you.
Believe me, you must could get the right one from us.

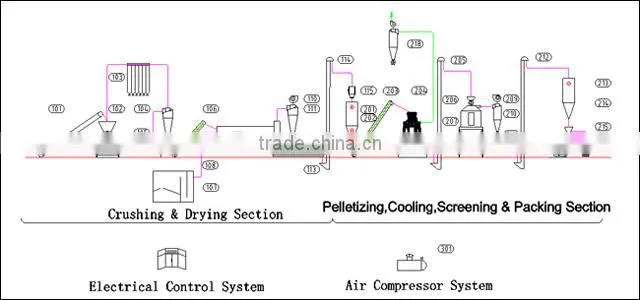

| 1-1.5 t/h wood pellet production drawing map | |
|---|---|
| |
| Main Equipment | Main Specification |
|
1) Wood chipper: BXG216 (55kw) 2) Wood crusher: QPJ600 (55 kw) 3) Wood pellet Mill: SZLH-M420 (111 kw)
|
Total power: 275 kw
|
|
For further detail information about the 1-1.5 t/h wood pellet plant, or if you need the bigger capacity wood pellet production line, please leave a message to us at the bottom to tell your detail requirement. we will send all the detail within 4 hours.
For targeted help, please tell us: 1) What are your main raw material? 2) what about the capacity you want to get? (how many ton per hour or day or year? 3) are you the final user or you will sell the machine to others? 4) If you are the final user, how about the final wood pellet size you want?
| |
| Small Wood pellet machine | |
|---|---|
|
Model: 350, 420, 508 Remarks: 1) the Model number means the diameter of the ring die of the feed pellet machine
2) the diameter of the final product pellet is Φ6-10 mm. |
|
Model: 350 Capacity : 0.5-0.8 t/h Power : 55 Kw | |
|
Model: 420 Capacity : 1-1.5 t/h Power : 110 Kw | |
|
Model: 508 Capacity : 1.6-2.5 t/h Power : 160 Kw | |
|
♦ For bigger model of wood pellet production , please click.
| |
| The function of each part of wood pellet production | |
|---|---|
|
1) Feeder: feeding raw material into the pellet making chamber. the feeder is made of stainless steel.
2) Forced feeding unit: since the raw material is fluffy, and the bulking value is higher, we equip the force feeding device.

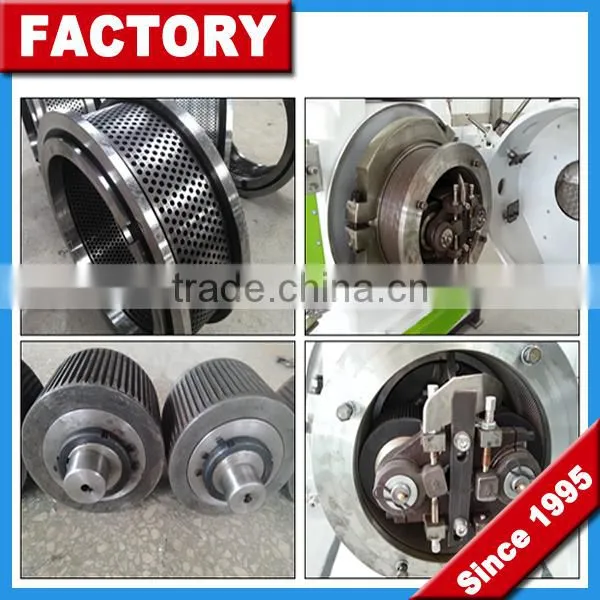

3) Pellet making unit: ring die and press roller inside work together to make the biomass wood raw material into wood pellet.
4) Main motor: driving the pellet making system.
We adopt the super quality Siemens brand motor in our machine. |
|
| Pelleting process working principle | |
|---|---|
|
|
|
♦ The main motor drive the ring die mould rotated. the press roller that were placed inside of the roller does not revolution, but will rotate because the friction of the ring die mould and wood powder raw material.
♦ The wood sawdust powder raw material was spread evenly into the space between the ring die and roller, and was press into the mould hole, formed column shape pellet, the pellet will rotate along with the rotating ring die mould and will be cutted when the length of the column pellet reach to a certain value.
| |
♦ The raw material could be branches, wood chipper, coconut sheel, nut sheel, rice or wheet straw, bean stem, wood sawdust, etc.
♦ If we use the raw material hay, forage grass, alfalfa, alfalfa, moringa oleifera, etc. we will get the final product silage fodder.
♦ We could produce wood pellet with different diameter by using different size of ring die mould. the range could be ø 6mm-10mm.
♦ The length of the wood pellet could be adjusted. there is a regulating device on the wood pellet machine.
1) How did you define your wood pellet machine model as 250 / 320 / 350 /420 / 508, etc. ?
The model is defined based on the diameter of the ring die mould.
For example, mould 250 means that the diameter of the ring die is 250 mm.
2) what kind of raw material that the ring die mould is made of?
There are two kinds of ring die mould in the market. one is made of carbon steel, the other is made of stainless steel. the former is cheaper than the latter.
We adopt stainless steel ring die and press roller sheel in our machine.
3) what about the size of the final wood pellet product?
the size is adjustable accroding to your requirement.
the diameter range of the wood pellet is ø6-10 mm by using different ring die mould.
the length of the wood pellet could be adjusted on the machine.
5) What is the suitable moisture (water content) of the raw material that easy to make pellet?
the ideal moisture range is from 15% to 18% .
6) What brand of motors you used in the machine?
We use Siemens brand motor in our machine. please rest assured about the quality.
7) what about the power, capacity, size and weight of the wood pellet machine?
Please refer to the above technical parameter table to get the detail.
If you want the details of bigger size of wood pellet making machine, please click here.
8) will you dispatch engineer to install the wood pellet machine (production line)?
Yes. we will dispatch engineer to do the service just based on the requirement of customers.
9) where is your factory located? how could I get there?
Our factory is located in Zhengzhou, Henan, China. It's 30 km far from the airport. we will pick you up at the airport.
10) what is your wood pellet machine price?
Please leave us a message at the bottom, and tell your detail requirement, will will reply you at first time.
Definitely, we could offer you the best machine with best price.
1) What's your raw material?
2) What about the maximum size and major size of the raw material?
3) What about your expecting size of the final product wood pellet?
3) what about the capacity? (how many ton per hour or day or year?
4) are you the final user or you will sell the machine to others?
| Related Machine | |
|---|---|
|
|
|
♦ Wood chipper machine cut and chip the wood raw material into chipps.
♦ There are two main type of wood chipper machine, one is drum wood chipper machine (same as the above picture); the other is disk wood chipper machine.
♦ See more detail of our wood chipper machine, Please Click.
|
♦ The function of wood crusher machine is to crush and grind the smaller size of wood chips into wood sawdust powder. the next process is pellet making.
♦ we have one kind of wood crusher machine that integrated the function of wood chipper and wood crusher. this model is suitable for smaller original size of the raw material.
♦ See more detail of our wood crusher machine, Please Click.
|
| You may need other capacity: Wood pellet production line | |
|---|---|
|
Choose Your Capacity |
| 0.5-0.8 ton / hour | |
| 1.8-2 ton / hour | |
| 3 ton / hour | |
| 4 ton / hour | |
♦ We, Henan Richi Machinery Co., Ltd. was established in 1995, Has served Europe, North America, Africa, Middle East, Asia for ten years. Our products have been sold to many countries all over the world.
♦ The head office was located in Zhengzhou, Henan Province.
♦ As a professional wood pellet machine and complete wood pellet production line project solution supplier, Henan Richi can always meet different customers' requirement.
♦ We understand how important the quality is, and we also understand the importance of timely shipping.
♦ We know how to survive and develop, because we always focus on the long-term development.
♦ 2015 China Biomass Wood Fellet Making Industry Expo & Animal Feed Production Promotion was held at Nanjing International Expo Center.
♦ Many international copanies were take part in the exhibition, such as Muyang, DSM, Adisseo, Zhengchang, Buhler and CP Group.
To make sure the wood pellet production line delivery to you at the best condition, we adopt the considerate way to protect the equipment very well. We consider our products just as our children.
