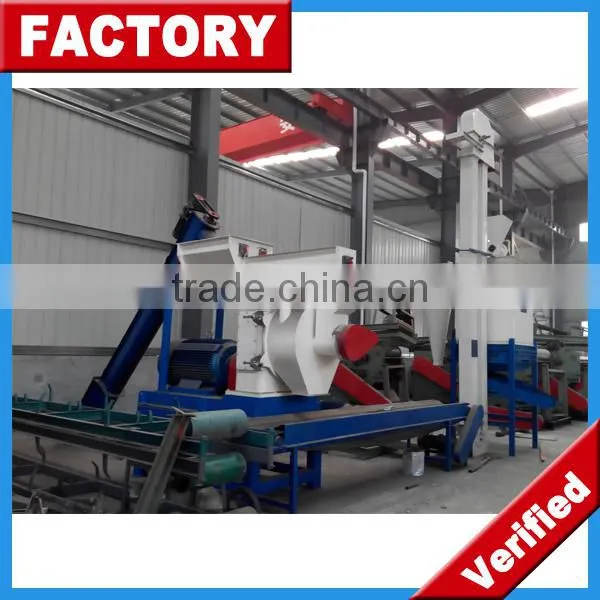

CE Approved 3 t/h Wood Pellet Mill Machine Line
| 1.5 T/H wood pellet production line flow chart (Reference) | |
|---|---|
| |
| Main Equipment | Main Specification |
|
1) Wood Crusher: W2-800 (Raw material diameter: less than 25cm) 2) wood dryer machine:1.2*12m (Moisture less than 45%) 3) wood pellet machine: MZLH420 4) Colling machine: 10m cooling mesh type belt conveyor 5) Automatic Packing Machine 6)electrical control system |
Main Auxiliary equipment:
screw conveyor, belt conveyor, stove, cyclone, mesh type belt conveyor ,bin, air lock, fan, pipe, ect |
|
For further detail information about the 1-1.5 t/h wood pellet mill machine line, please leave a message to us at the bottom to tell your detail requirement. we will send all the detail as soon as possible.
For targeted help, please tell us: 1) What are your main raw material? moisture? 2) what about the capacity you want to get? (how many ton per hour or day or year?)
| |

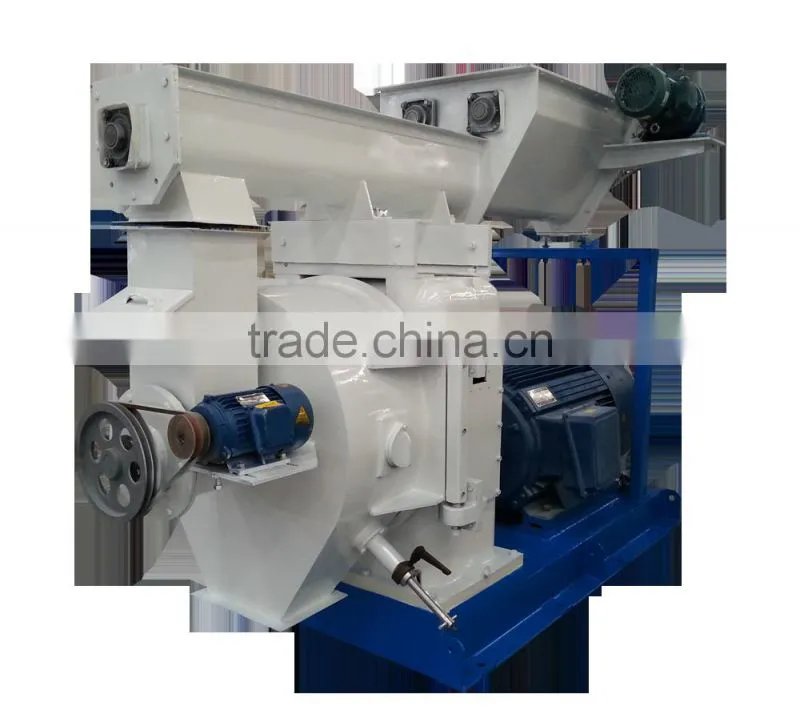

Model: 350, 420
Remarks:
1) two models widely used
2) the diameter of the final product pellet is Φ6-10 mm.
Model: 350
Capacity : 0.5-0.8 t/h
Power : 55 Kw
Weight : 2500
Dimension : 2200*1000*1500 mm
Model: 420
Capacity : 1.0-1.5 t/h
Power : 90 Kw
Weight (kg):3500 Kg
Dimension : 2500*1100*1600 mm
Model: W2-500
Capacity : 200-300 kg/h
Power: 15 KW
Weight: 300 kg
Dimension : 120*70*73 mm
Model: W2-600
Capacity : 300-1000 kg/h
Power: 18.5-22 KW
Weight :800 kg
Dimension : 130*98*73 mm
Model: W2-800
Capacity : 1000-2000 kg/h
Power: 37-45 KW
Weight: 1400 kg
Dimension : 200*100*130 mm
Model: W2-1000
Capacity : 2000-3000 kg/h
Power: 55-75 KW
Weight: 2200 kg
Dimension : 230*175*230 mm
1) this machine integrated the chipping machine and crushing machine in one.
2) it is suitable for the wood chip, branches, small logo, etc.
3) The largest wood log size this wood crusher can process is less than 25cm.

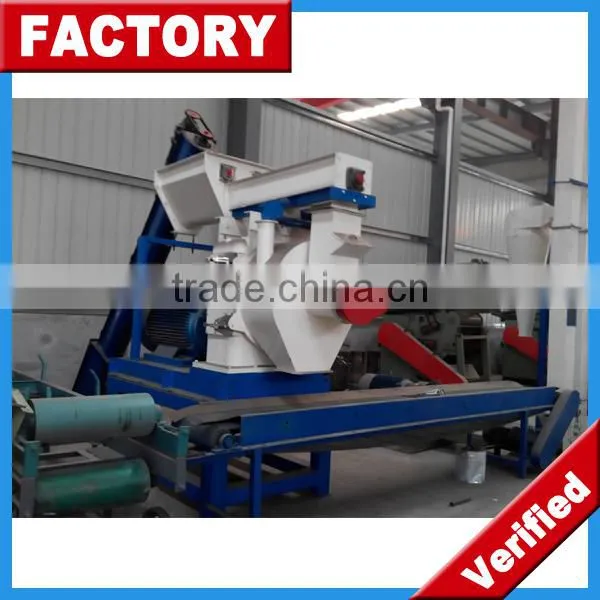

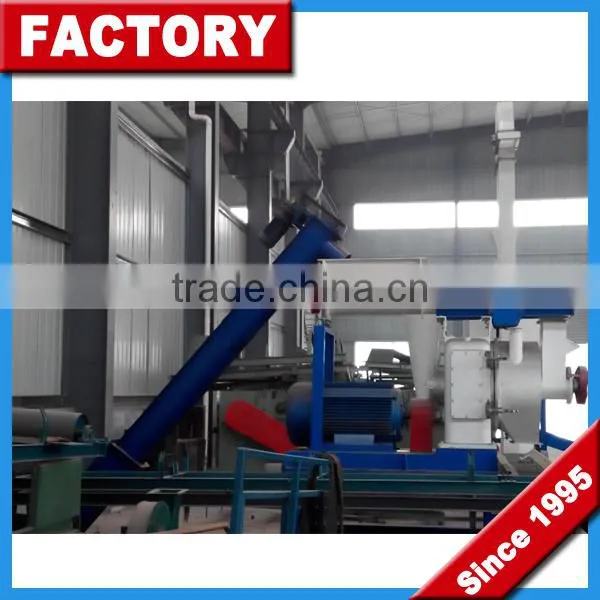

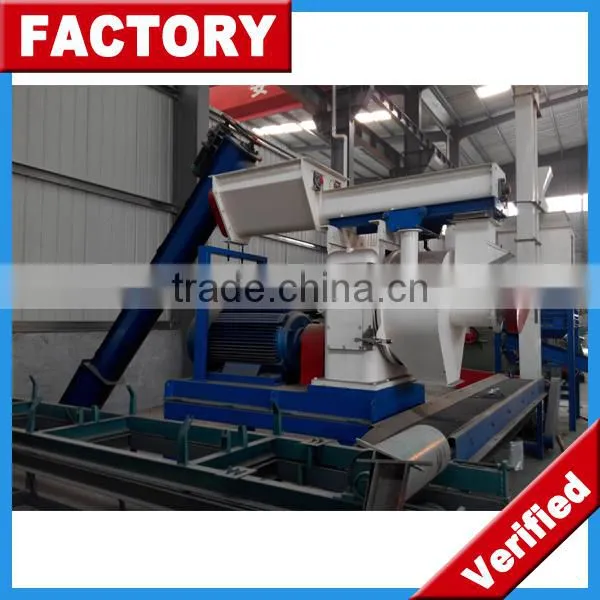

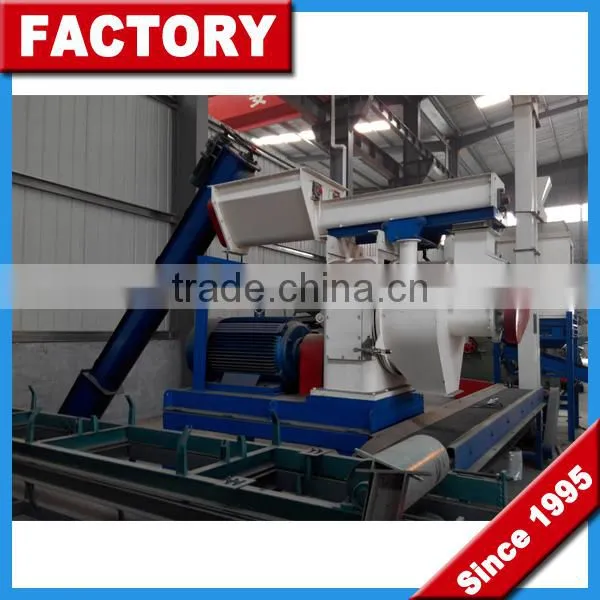

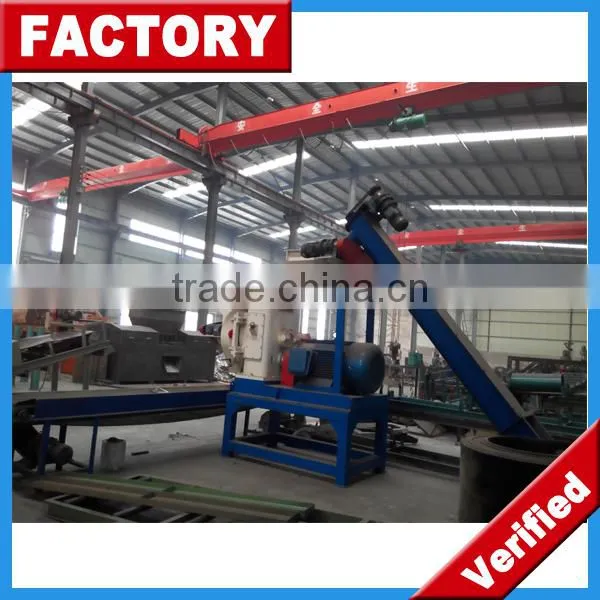

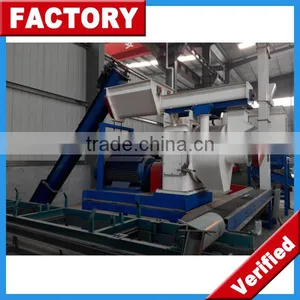

| Complete 1.5 t/h wood pellet production line | |
|---|---|
|
Model: 350, 420 Remarks: 1) two models widely used 2) the diameter of the final product pellet is Φ6-10 mm. |
|
0.5-0.8 t/h pellet line Capacity : 0.5-0.8 t/h Include: wood crusher pellet machine Cooling machine Packing machine Screw conveyor and cooling conveyor
| |
|
1.0-1.5 t/h pellet line wood crusher pellet machine Cooling machine Packing machine Screw conveyor and cooling conveyor | |
|
♦ If your raw materials are only sawdust, and the moisture is about 20% or less, there is no need of the wood crushing machine, and the wood drying machines, you can use this production line;
♦ It includes a 2m³ buffer bin, connected to the screw conveyor, a pellet machine, a mesh type conveyor, a bucket conveyor and a cooling system
| |
| HENAN RICHI MACHINERY CO., LTD | |
|---|---|
| |
|
♦ The raw material could be branches, wood chipper, coconut sheel, nut sheel, rice or wheet straw, bean stem, wood sawdust, etc.
♦ If we use the raw material hay, forage grass, alfalfa, alfalfa, moringa oleifera, etc. we will get the final product silage fodder.
|
| HENAN RICHI MACHINERY CO., LTD | |
|---|---|
| |
|
♦ We could produce wood pellet with different diameter by using different size of ring die mould. the range could be ø 6mm-10mm. ♦ The length of the wood pellet could be adjusted. there is a regulating device on the wood pellet machine. |
| HENAN RICHI MACHINERY CO., LTD | |
|---|---|
| |
|
♦ We, Henan Richi Machinery Co., Ltd. was established in 1995, Has served Europe, North America, Africa, Middle East, Asia for ten years. Our products have been sold to many countries all over the world.
♦ The head office was located in Zhengzhou, Henan Province.
♦ As a professional wood pellet making machine and complete plant project solution supplier, Henan Richi can always meet different customers' requirement.
♦ We understand how important the quality is, and we also understand the importance of timely shipping.
♦ We know how to survive and develop, because we always focus on the long-term development. |
| Professional and Advanced technology manufacturing machines | |
|---|---|
|
| Careful and thoughtful packing for single wood pellet processing machine | |
|---|---|
|
| Careful and thoughtful packing for single wood pellet processing machine | |
|---|---|
|
|
| Our friends from all over the world | |
|---|---|
|
| FAQ | |
|---|---|
|
1. What is our payment term? A: 30 % by TT in advance, 70% by TT before shippment; B: 100% Confirmed, Irrevocable, LC at sight
2. Can I operate this production line alone? No, we suggest two persons working on this production line. One person feeding the raw materials to the crusher, and one person at the end, to collect the pellets into bags.
3. Will you train me to do the maintanance of this production line? Yes, while our engineers guide you to install the production line, they will train you how to operate the production line, and how to maintain all the main machines.
That's the common questions my other customers asked me, If you still have questions, please send me email; If these solved all your questions, you can contact me for our cooperation beginning. Send email to me NOW!
|
