Help CenterCF198 Electric Motor Driving Wood Paper Hammer Mill Rabbit Food Hammer Mill
Related Products
-
CF198A 7.5hp Gasoline Engine Conconut Shell Bean Husk Hammer MillUS$ 330 - 1,200MOQ: 1 Set -
CF198A 7.5hp Gasoline Engine Conconut Shell Wood Sawdust Hammer MillUS$ 330 - 1,200MOQ: 1 Set
-
CF198A Diesel or Gasoline Engine 7.5hp Grinding Hammer MillUS$ 330 - 1,200MOQ: 1 Set
-
Chengda Factory Supply Directly 22kw 800-1100kg/h Output Hammer Mill Tree Branch CrusherUS$ 700 - 7,500MOQ: 1 Set
-
CF198A 7.5hp Gasoline Engine Conconut Shell Hammer MillUS$ 330 - 1,200MOQ: 1 Set
Specifications
Low Break DownCE certification

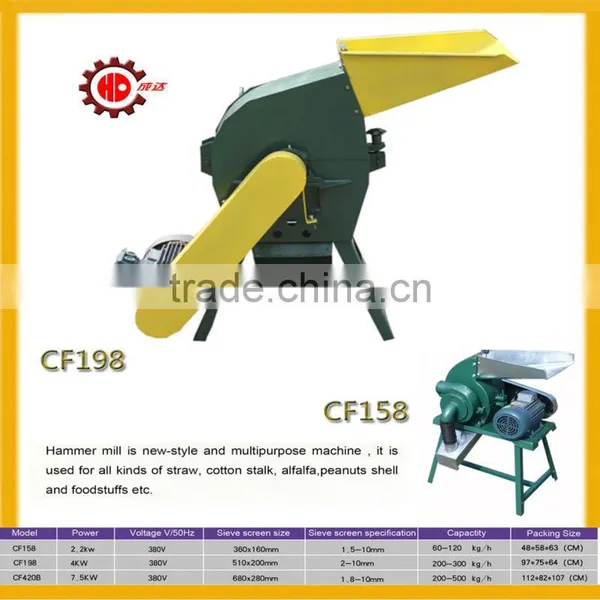

Hammer Mill CF198
| Model No. | Power Electric Engine 50HZ | Wood output(kg/h) | N/G weight(kg) | Sieve screen size | Sieve screen specification | Packing Size(cm) |
| CF158 | 1 phase 2.2kw | 60-120 | 75/95 | 360*160mm | 1.5-10mm | 48*58*63 |
| CF158 | 3 phase 2.2kw | 60-120 | 75/95 | 360*160mm | 1.5-10mm | 48*58*63 |
| CF198 | 3 phase 4kw | 200-300 | 120/140 | 510*200mm | 2-10mm | 90*58*102 |
| CF198 | 7.5HP gasoline engine | 200-300 | 120/140 | 510*200mm | 2-10mm | 96*62*105 |
| CF420B | 3 phase 7.5kw | 200-400 | 260/320 | 680*280mm | 1.8-10mm | 112*82*107 |
| CF420C | 3 phase 11kw | 200-500 | 320/360 | 680*280mm | 2-10mm | 112*82*107 |
| CF420A | 15HP Diesel engine | 300-500 | 330/360 | 680*280mm | 1.8-10mm | 147*73*109 |
| CF420A | 22HP Diesel engine | 300-500 | 350/390 | 680*280mm | 1.8-10mm | 147*74*111 |
| CF500A | 55HP Diesel engine | 800-1100 | 800/840 | 820*390mm | 2-10mm | 150*142*123 |
| CF500B | 3 phase 22kw | 800-1100 | 600/630 | 820*390mm | 2-10mm | 124*97*106 |
Specification
1. Driven by a diesel engine or a e-motor makes materials crushing possible especially in the rural area with shortage of electricity.
2.The core part -the hammers are made of high quality carbon alloy steel, which is durable and wear-resistant.
3. Available screen discharge area can be up to1904 square centimeter which allows for high throughput at a lower horse power.
4. We can equip air blower, the crushed material can be directly collected and transported to next machine for further processing.
5. You can change screening sieve according to different material grinding requirements.
7. We can customize the following sieve with screening hole diameter of 2mm-10mm.
Choose a reliable wood hammer mill manufacturer.
Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.
After-sale Service
After-sale service can ensure a smooth business once you buy a machine aboard. You can inevitably encounter some operation problems while making wood pellets. Amisy can offer you 12 months warranty for main parts to protect your interests and save your money.
