Home > Products > wood crusher > CF198A 7.5hp gasoline engine conconut shell wood sawdust hammer mill

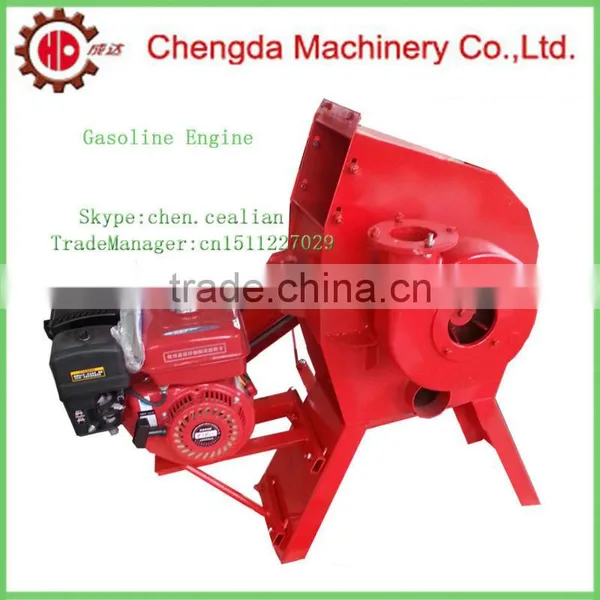

CF198A 7.5hp gasoline engine conconut shell wood sawdust hammer mill
- 800 Set / Sets per Month
- Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Chengda |
Model Number: | CF198 | Type: | Feed Pellet Machine | Voltage: | gasoline engine |
Power(W): | 7.5HP | Dimension(L*W*H): | 96*62*105 | Weight: | 140 kg |
Certification: | CE certification | Warranty: | 1 year | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
Low Break DownCE certification
Hammer Mill CF198
Functioning
The hammer mill is fixed with an engine with a power of RP-driven all kinds of different power. Its working principle is: after the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step-by-step. The sieve have the following size: 1.5mm, 2mm, 4mm and 6mm. Then the crushed materials will leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge, finally, the powder will be discharged down below, and the air will be discharged upper.
Knowing your machine
Model No. | Power Electric Engine 50HZ | Wood output(kg/h) | N/G weight(kg) | Sieve screen size | Sieve screen specification | Packing Size(cm) |
CF158 | 1 phase 2.2kw | 60-120 | 75/95 | 360*160mm | 1.5-10mm | 48*58*63 |
CF158 | 3 phase 2.2kw | 60-120 | 75/95 | 360*160mm | 1.5-10mm | 48*58*63 |
CF198 | 3 phase 4kw | 200-300 | 120/140 | 510*200mm | 2-10mm | 90*58*102 |
CF198 | 7.5HP gasoline engine | 200-300 | 120/140 | 510*200mm | 2-10mm | 96*62*105 |
CF420B | 3 phase 7.5kw | 200-400 | 260/320 | 680*280mm | 1.8-10mm | 112*82*107 |
CF420C | 3 phase 11kw | 200-500 | 320/360 | 680*280mm | 2-10mm | 112*82*107 |
CF420A | 15HP Diesel engine | 300-500 | 330/360 | 680*280mm | 1.8-10mm | 147*73*109 |
CF420A | 22HP Diesel engine | 300-500 | 350/390 | 680*280mm | 1.8-10mm | 147*74*111 |
CF500A | 55HP Diesel engine | 800-1100 | 800/840 | 820*390mm | 2-10mm | 150*142*123 |
CF500B | 3 phase 22kw | 800-1100 | 600/630 | 820*390mm | 2-10mm | 124*97*106 |
Specification
1. Driven by a diesel engine makes materials crushing possible especially in the rural area with shortage of electricity.
2.The core part -the hammers are made of high quality carbon alloy steel, which is durable and wear-resistant.
3. Available screen discharge area can be up to1904 square centimeter which allows for high throughput at a lower horse power.
4. We can equip air blower, the crushed material can be directly collected and transported to next machine for further processing.
5. You can change screening sieve according to different material grinding requirements.
7. We can customize the following sieve with screening hole diameter of 2mm-10mm.
Choose a reliable wood hammer mill manufacturer.
Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.
After-sale Service
After-sale service can ensure a smooth business once you buy a machine aboard. You can inevitably encounter some operation problems while making wood pellets. Amisy can offer you 12 months warranty for main parts to protect your interests and save your money.
