Help Center15HP Factory Supply Driven by Diesel Engine Powdered Carbon Crusher Cotton Stalk Hammer Mill
Related Products
-
CF420A Factory Supply 15HP Diesel Engine Grain Crusher for Corn Barley SoybeansUS$ 500 - 5,000MOQ: 1 Set -
15HP Factory Supply Driven by Diesel Engine Tree Branches Wood CrusherUS$ 500 - 5,000MOQ: 1 Set
-
CF198 Electric Motor Driving Wood Paper Hammer Mill Rabbit Food Hammer MillUS$ 330 - 1,200MOQ: 1 Set
-
CF198A 7.5hp Gasoline Engine Conconut Shell Bean Husk Hammer MillUS$ 330 - 1,200MOQ: 1 Set
-
CF198A 7.5hp Gasoline Engine Conconut Shell Wood Sawdust Hammer MillUS$ 330 - 1,200MOQ: 1 Set
Specifications
Low Break DownCE certification
Applications of CF500A Wood Hammer Mill
1. This CF500A wood hammer mill is driven by diesel engine, making it available in area short of electricity.
2. Equipped with hammers, this wood hammer mill is more suitable to crush soft agricultural crops such as wheat stalks, alfalfa, corn straws, switch grass, peanut soybean shell and bamboo.
| Model No. | Power Electric Engine 50HZ | Wood output(kg/h) | N/G weight(kg) | Sieve screen size | Sieve screen specification | Packing Size(cm) |
| CF158 | 1 phase 2.2kw | 60-120 | 75/95 | 360*160mm | 1.5-10mm | 48*58*63 |
| CF158 | 3 phase 2.2kw | 60-120 | 75/95 | 360*160mm | 1.5-10mm | 48*58*63 |
| CF198 | 3 phase 4kw | 200-300 | 120/140 | 510*200mm | 2-10mm | 90*58*102 |
| CF198 | 7.5HP gasoline engine | 200-300 | 120/140 | 510*200mm | 2-10mm | 96*62*105 |
| CF420B | 3 phase 7.5kw | 200-400 | 260/320 | 680*280mm | 1.8-10mm | 112*82*107 |
| CF420C | 3 phase 11kw | 200-500 | 320/360 | 680*280mm | 2-10mm | 112*82*107 |
| CF420A | 15HP Diesel engine | 300-500 | 330/360 | 680*280mm | 1.8-10mm | 147*73*109 |
| CF420A | 22HP Diesel engine | 300-500 | 350/390 | 680*280mm | 1.8-10mm | 147*74*111 |
| CF500A | 55HP Diesel engine | 800-1100 | 800/840 | 820*390mm | 2-10mm | 150*142*123 |
| CF500B | 3 phase 22kw | 800-1100 | 600/630 | 820*390mm | 2-10mm | 124*97*106 |

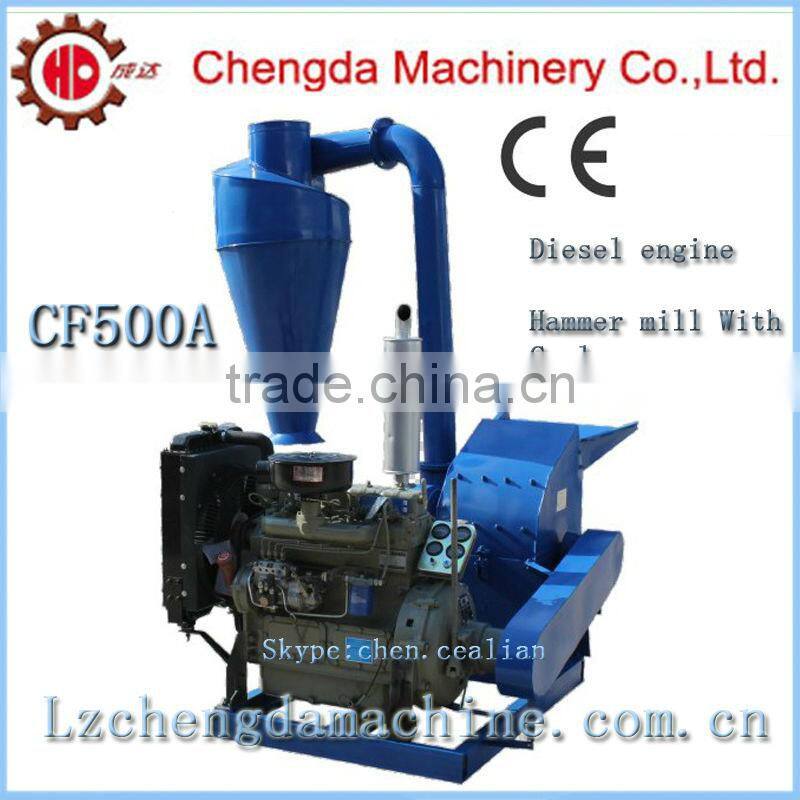

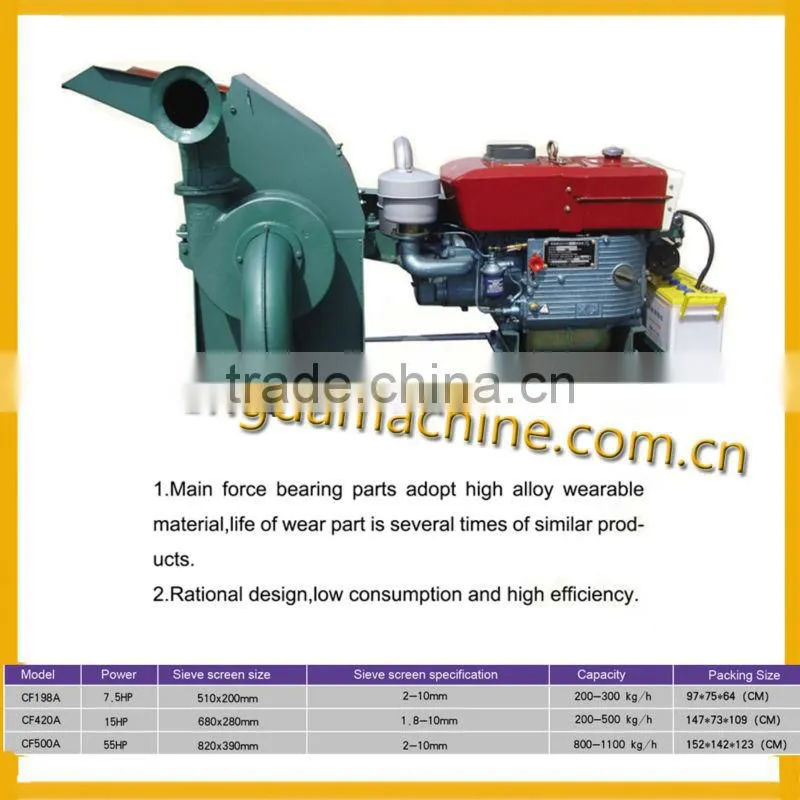

CF series hammer mill with diesel engine

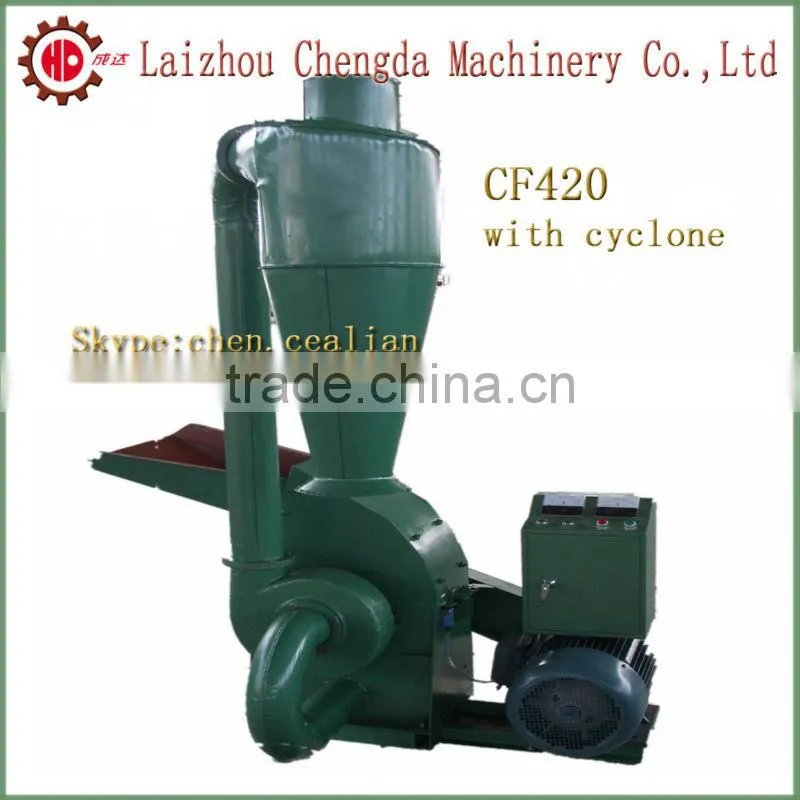

CF series hammer mill with e-motor

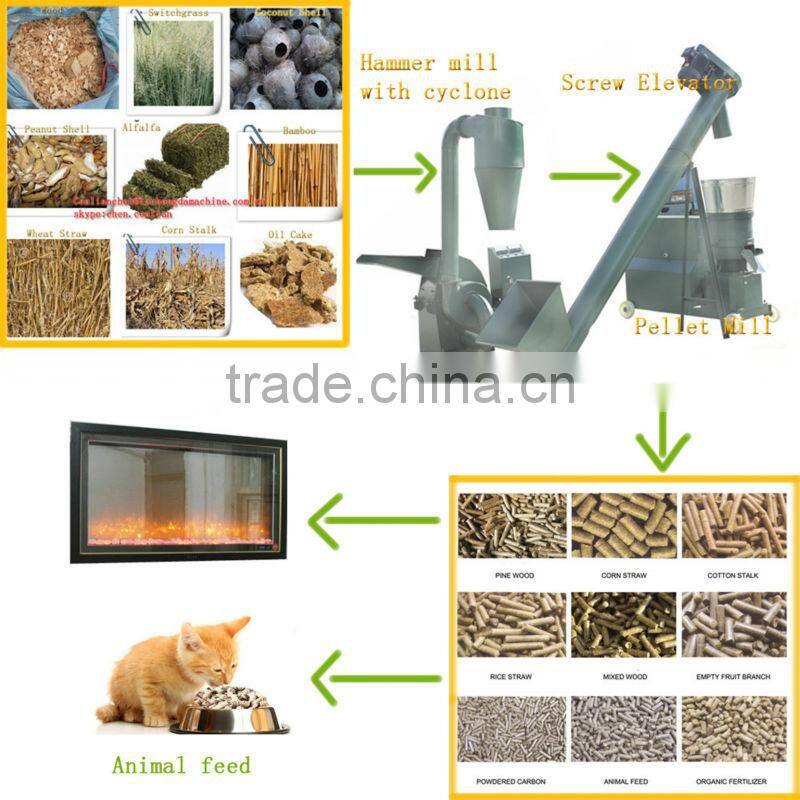

This wood hammer mill can be used in wood pellet production which can be used as animal bedding, heat fuel and fodder.
Wood hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the wood particle size. If the size is larger than screen, these material will be sent back to be grinded again until they can get though the screen. The size of the grinded material depend on the size of screen and the rotation speed .
The Hummer Mill Cutter and Sieve
Choose a reliable wood hammer mill manufacturer.
Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.
After-sale Service
After-sale service can ensure a smooth business once you buy a machine aboard. You can inevitably encounter some operation problems while making wood pellets. Amisy can offer you 12 months warranty for main parts to protect your interests and save your money.
