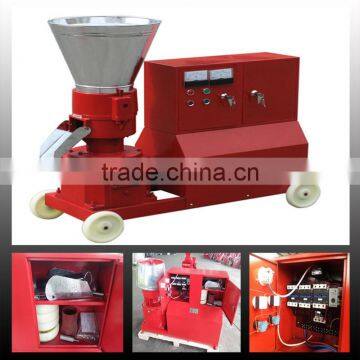

Electric powered pellet making machinery for making fodder pellets

Name: Electric powered pellet making machinery for making fodder pellets
Brand: Chengda Machinery
Availability: InStock

FOB Price

USD $1,000 - $1,600 / Set

1 Set(Min.Order)

Supply Ability 4800 Set / Sets per Month
Port Qingdao Port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Chengda Machinery	Model Number	KL series
Type	Feed Pellet Machine	Voltage	220V 380V
Power(W)	15kw	Dimension(LWH)	1358592 cm
Weight	190 kg	Certification	CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Certifications

Product Details

The pellet mill operates by “direct drive” power transmission. The unit has no belts, which means no slipping. This is one of the reasons why the unit can provide better power transmission. The entire drive assembly is contained inside an oil filled gearbox. The gearbox housing is constructed of cast iron.
The die and rollers are made of high quality, heat treated, alloy steel with a longer life span.

Raw material

Including but not limited to wood, leafs, grass, cornstalks, cardboard, switch grass, pinecones, hay, nut-shells, corn cobs, tobacco waste, straw, manure, paper for fuel, feed, or fertilizer applications.
Moisture of 8%~15% is prefered
Size less than 6mm is prefered

Technical Parameters

Type	Power Source	Die Diameter(mm)	Die Hole Specification(mm)	Capacity(Kg/H)		Pellet size(mm)	NW (Kg)	GW (Kg)	Packing size(cm)
Type	Power Source	Die Diameter(mm)	Die Hole Specification(mm)	Feed pellet	Wood pellet	Pellet size(mm)	NW (Kg)	GW (Kg)	L	H	W	CBM
KL120A	7.5HP/Gasoline Engine	120	2.5-10	60-100	40-60	10-50	80	100	76	43	71	0.23
KL120A	8HP/Diesel Engine	120	2.5-10	60-100	40-60	10-50	120	140	87	44	73	0.28
KL120B	2.2kw/one phase/220v 50hz	120	2.5-10	60-100	40-60	10-50	80	100	75	32	65	0.16
KL120B	3kw/3 phase/380v 50hz	120	2.5-10	60-100	40-60	10-50	80	100	75	32	65	0.16
KL120C	2.2kw/one phase/220v 50hz	120	2.5-10	60-100	40-60	10-50	80	100	80	35	74	0.21
KL120C	3kw/3 phase/380v 50hz	120	2.5-10	60-100	40-60	10-50	80	100	80	35	74	0.21
KL120P	PTO Shaft	120	2.5-10	60-100	40-60	10-50	70	90	76	42	57	0.18
KL120L	1.5kw/one phase/220v 50hz	120	2.5-10	60-100	40-60	10-50	80	100	75	32	65	0.16
KL120L	2.2kw/one phase/220v 50hz	120	2.5-10	60-100	40-60	10-50	80	100	75	32	65	0.16
KL150A	7.5HP/Gasoline Engine	150	2.5-10	90-120	50-90	10-50	95	115	76	43	71	0.23
KL150A	13HP/Gasoline Engine	150	2.5-10	90-120	50-90	10-50	95	115	76	43	71	0.23
KL150A	8HP/Diesel Engine	150	2.5-10	90-120	50-90	10-50	120	140	87	46	73	0.29
KL150B	4kw/3 phase/380v 50hz	150	2.5-10	90-120	50-90	10-50	95	115	75	35	65	0.17
KL150C	4kw/3 phase/380v 50hz	150	2.5-10	90-120	50-90	10-50	95	115	75	35	65	0.17
KL150P	PTO Shaft	150	2.5-10	90-120	50-90	10-50	90	100	76	44	57	0.19
KL150L	4kw/3 phase/380v 50hz	150	2.5-10	90-120	50-90	10-50	90	100	75	35	60	0.16
KL200A	15HP/Diesel Engine	200	2.5-10	200-300	110-140	10-50	280	310	118	56	95	0.63
KL200B	7.5kw/3 phase/380v 50hz	200	2.5-10	200-300	110-140	10-50	200	230	100	43	95	0.41
KL200C	7.5kw/3 phase/380v 50hz	200	2.5-10	200-300	110-140	10-50	200	160	100	46	90	0.41
KL200P	PTO Shaft	200	2.5-10	200-300	110-140	10-50	140	310	102	56	77	0.44
KL230A	22HP/Diesel Engine	230	2.5-10	300-400	150-190	10-50	280	320	118	56	95	0.63
KL230B	11kw/3 phase/380v 50hz	230	2.5-10	300-400	150-190	10-50	290	320	114	47	97	0.52
KL230C	11kw/3 phase/380v 50hz	230	2.5-10	300-400	150-190	10-50	290	320	114	54	93	0.57
KL230P	PTO Shaft	230	2.5-10	300-400	150-190	10-50	150	180	102	56	77	0.44
KL260A	35HP/Diesel Engine	260	2.5-10	400-600	220-280	10-50	450	480	184	70	116	1.49
KL260B	15kw/3 phase/380v 50hz	260	2.5-10	400-600	220-280	10-50	330	360	120	52	107	0.67
KL260C	15kw/3 phase/380v 50hz	260	2.5-10	400-600	220-280	10-50	330	360	122	53	107	0.69
KL260P	PTO Shaft	260	2.5-10	400-600	220-280	10-50	200	230	115	56	77	0.5
KL300A	55HP/Diesel Engine	300	2.5-10	600-800	280-320	10-50	520	560	220	60	123	1.62
KL300B	22kw/3 phase/380v 50hz	300	2.5-10	600-800	280-320	10-50	410	450	127	52	107	0.71
KL300C	22kw/3 phase/380v 50hz	300	2.5-10	600-800	280-320	10-50	410	450	128	58	105	0.78
KL300P	PTO Shaft	300	2.5-10	600-800	280-320	10-50	260	290	116	77	80	0.71
KL360A	55HP/Diesel Engine	360	2.5-10	700-900	300-380	10-50	600	620	227	62	126	1.77
KL360C	22kw/3 phase/380v 50hz	360	2.5-10	700-900	300-380	10-50	470	500	134	58	106	0.82
KL360P	PTO Shaft	360	2.5-10	700-900	300-380	10-50	300	330	116	77	85	0.76
KL400A	55HP/Diesel Engine	400	2.5-10	900-1100	400-550	10-50	750	780	227	62	126	1.77
KL400C	30kw/3 phase/380v 50hz	400	2.5-10	900-1100	400-550	10-50	630	660	145	62	115	1.03
KL400P	PTO Shaft	400	2.5-10	900-1100	400-550	10-50	400	420	116	77	85	0.76

Delivery

It can take 15 to 45 days before our pellet mills are delivered. It depends on the time of year that the machine is ordered and the current workload. Each unit is built to order and contains purchased parts.
Shipping price: Please contact us for a more accurate estimate.

Factory

Laizhou Chengda Machinery Co., Ltd. is one of the most earliest manufacturer of wood /feed machinery in China.

With a wide range, good quality, favorable prices and stylish designs, our products are extensively used in agriculture andother industries.

Please feel free to visit our production facility in LaizhouShandong,we sincerely welcome tours!
