Feed Pig,cow,sheep Chicken Pellet Machine

Feed Pig,cow,sheep Chicken Pellet Machine photo-1
US$ 400 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
chengda machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name chengda machine
Model Number KL series 120,150,200,230,260,300,360,400
Voltage 380v
Power(W) 2.2kw to 30kw
Dimension(L*W*H) 75*32*61 to145*62*115
Weight 100kgs to 660kgs
Certification CE
Warranty 12 monthes
After-sales Service Provided Overseas service center available

Specifications

animal feed pellet mill
1.can make wood pellet and feed pellet
2.pellet diameter:2.5-10mm
3.pellet length:6-8cm
4.MOQ 1set

Specifications

wood and feed  pellet mill

1.CE certificate
2.pellet size: 2.5mm,to 10mm
3.pellet length:60-80cm
4.warranty period :1  years



The advantages of finished pellets:

1.as biomass fuels :(Dia4-10mm,or bigger)

Without dust ,smokeless, Cleanliness.no CO, pollution-free.

High density and heat value, easy burn ,low cost ,convenient use.

2.for animal feed :(dia 2.5 -6mm,or bigger)Taste good ,high-usage



Usage of the machine:



It is used to produce pellet feed for pig, cattle, sheep, rabbit, chicken, duck, fish,etc; or  To make inorganic fertilizer granule

it is also used to produce the wood pellet for fuel.



feed pig,cow,sheep chicken pellet machine

feed pig,cow,sheep chicken pellet machine



feed pig,cow,sheep chicken pellet machine



The requirement of raw material:



  below 6mm powder, if your raw material is straw, wood branch , corn husk and so on, you should grind them into powder at first, and then you can directly use the machine.





feed pig,cow,sheep chicken pellet machine

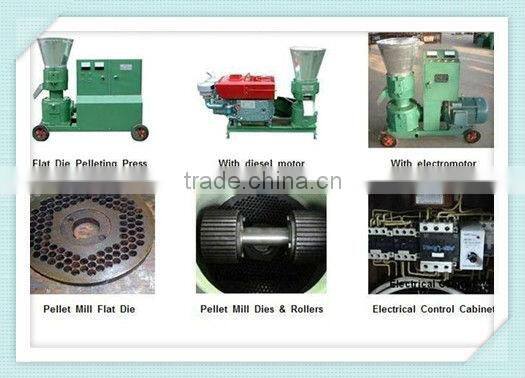

Products description:




1. Pellet press can make all kinds of bio-mass material to be solid pellets which is for burning fuel or animal feed.



2. We have new improved models for wood pellet making. Specially design and improved machines according to European standard, with closed house to cover motor, CE electrical parts & insolated protective plate for the electrical panel.



3. Our pellet mill also can process all kinds of sawdust. Paddy Straw, Sunflower Stalk, Forestry Wastes, Wood Chips, Chemical And Many Other Wastes Or Solid Powder Material.



4. Our pellet mill have CE certificate, Which all parts can meet EU standard.






Technical parameter:

Version A are gasoline or diesel engine driven.

Version B are driven by e-motor, without extra cabinet and cover on the motor.

Version C are the first improved models with extra cabinet and closed house on the motor.



As for the die size, you can choose from 2.5mm to 10mm according to your needs.

MODEL NO.

OUTPUT

(kg/h)

POWER

(HP or KW)

SIZE

(cm)

NW/GW

(kg)

Qty/20’FCLRemak

KL120A

90-120

7.5hp

76*43*71

80/100

90

gasoline engine

KL120A100-1308hp87*44*73120/14090diesel engine
KL120B

75-100

2.2kw/220V

75*32*61

80/100

168

CE motor

KL120B75-1003kw/380V75*32*6180/100168CE motor

KL150A

110-210

7.5hp

76*43*71

95/115

84

gasoline engine

KL150A120-2208hp87*46*73120/14084diesel engine

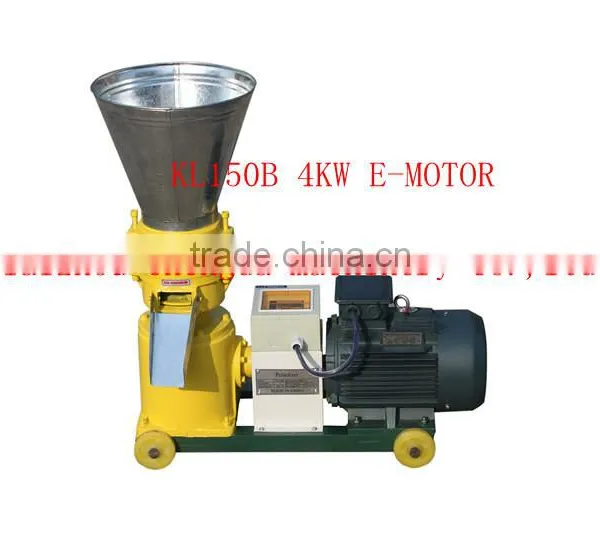

KL150B

150-200

4kw/380V

75*35*65

95/115

126

CE motor

KL200A

250-350

15hp

118*56*95

280/310

40

diesel engine

KL200B

200-300

7.5kw/380V

100*43*95

200/230

60

CE motor

KL200C

200-300

7.5kw/380V

100*46*90

200/230

60

CE motor

KL230A

350-500

22hp

118*56*95

280/310

40

diesel engine

KL230B

350-450

11kw/380V

114*47*97

290/320

45

CE motor

KL230C

350-450

11kw/380V

114*54*93

290/320

45

CE motor

KL260A

300-500

30hp

184*70*116

450/480

16

diesel engine

KL260B400-60015kw/380V120*52*107330/36040CE motor
KL260C400-60015kw/380V122*53*107330/36040CE motor
KL300A600-85055hp200*60*123520/56016diesel engine
KL300B700-80022kw/380V127*52*107410/45030CE motor
KL300C700-80022kw/380V128*58*105410/45030CE motor
KL360A700-95055hp227*62*126600/62016diesel engine
KL360C700-95022hp/380V134*58*106470/50030CE motor
KL400A800-110055hp227*62*126750/78016diesel engine
KL400C800-110030kw/380V145*62*115630/66025

CE motor



First ,thanks for you are interested in our pellet mill .If my TM isn't online ,please send email .We are the reliable supplier,if you want to get good price and quality,please contact us.


feed pig,cow,sheep chicken pellet machinefeed pig,cow,sheep chicken pellet machine
feed pig,cow,sheep chicken pellet machine

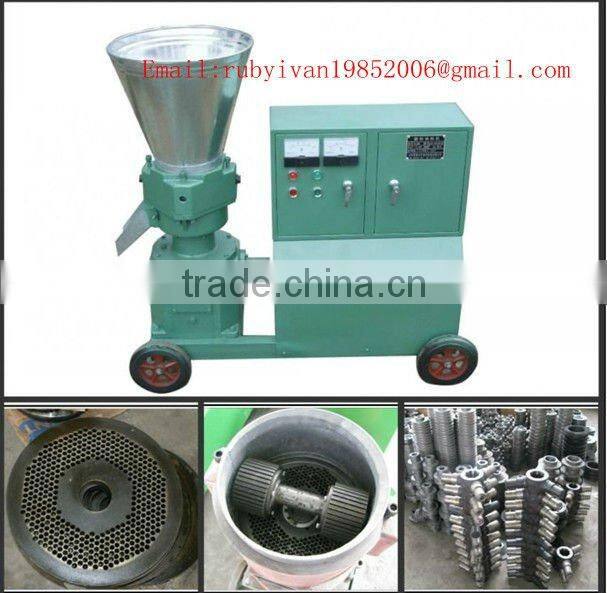

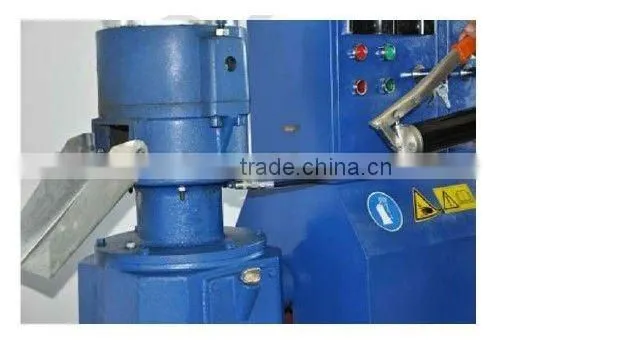

 Machine specification in details


 feed pig,cow,sheep chicken pellet machine






feed pig,cow,sheep chicken pellet machine



feed pig,cow,sheep chicken pellet machine



feed pig,cow,sheep chicken pellet machine

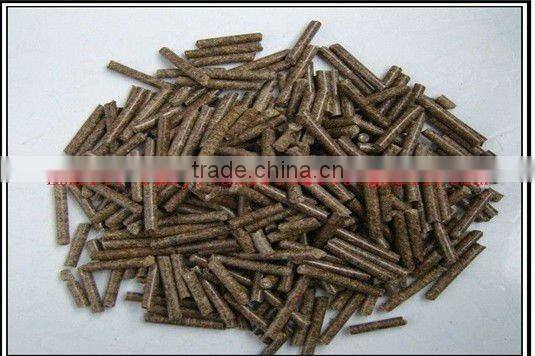

Final pellet packed in the bags for sell.

feed pig,cow,sheep chicken pellet machine

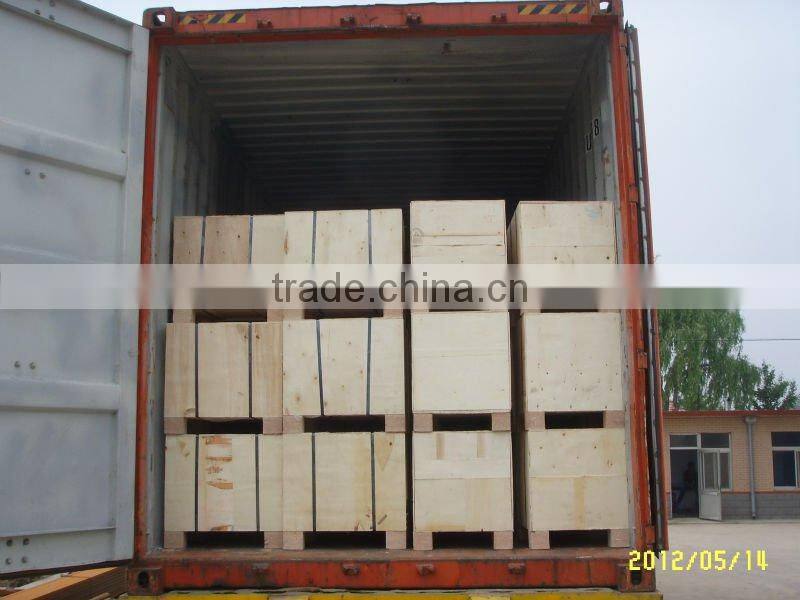

Load to the container:





 feed pig,cow,sheep chicken pellet machine




Pellet press machine (pellet mill) are our mainly products. We have exported them to many countries around the world many years.
















Factory basic information:



Laizhou chengda machinery co.,ltd was found in 1992 years, mainly produce the flat die feed pellet mill and wood pellet mill.



all the product 90% are export to EU ,USA, AFRICA, And so on.



at the same time , we provide the product for more than  50 trading company in China.

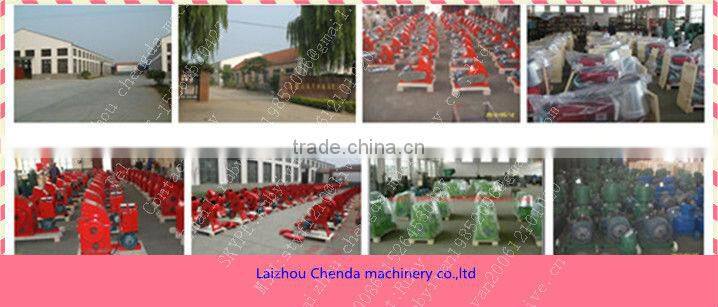

Over view of our factory





feed pig,cow,sheep chicken pellet machine





Quality Certification :







feed pig,cow,sheep chicken pellet machine
