Home Use KL200C 7.5kw Small Animal Feed Pellet Mill for Sale

Home Use KL200C 7.5kw Small Animal Feed Pellet Mill for Sale photo-1
Home Use KL200C 7.5kw Small Animal Feed Pellet Mill for Sale photo-2
Home Use KL200C 7.5kw Small Animal Feed Pellet Mill for Sale photo-3
Home Use KL200C 7.5kw Small Animal Feed Pellet Mill for Sale photo-4
Home Use KL200C 7.5kw Small Animal Feed Pellet Mill for Sale photo-5
Home Use KL200C 7.5kw Small Animal Feed Pellet Mill for Sale photo-6
US$ 700 - 900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Chengda Machinery
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name Chengda Machinery
Model Number KL200C
Type Feed Pellet Machine
Voltage 380V
Power(W) 7.5kw
Dimension(L*W*H) 100*46*90cm
Weight 230 kg
Certification CE ISO
Warranty One Year
After-sales Service Provided No overseas service provided
Product Description

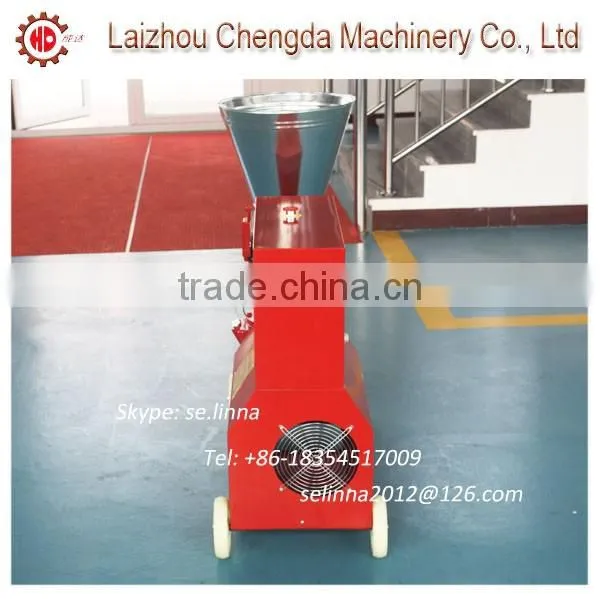

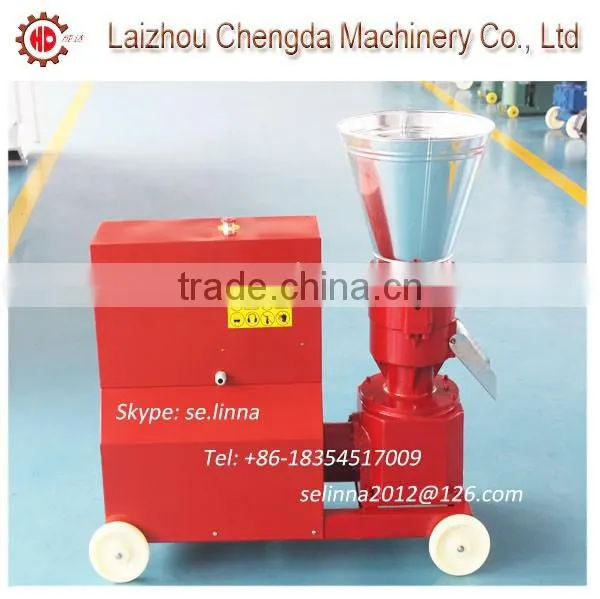

Small animal feed pellet mill for sale
Our flat die pellet mills are devided into two series, the KL series pellet mills and the MKL series pellet mills. The KL series pellet mills can both press animal feed pellets and wood sawdust pellets, but the capacity of making wood pellets is lower than that of making feed pellets. The MKL series pellet mills have the special design for making wood sawdust pellets.
If this model is not suitable for you, don't worry, leave a message at the bottom, to tell me your detail requirements, such as the raw materials, your capacity demands, which animals you feed and etc. I will try best to assistant you the most suitable model for your choose. Believe me, you must could get the right one from us.


KL200C small animal feed pellet mill for sale---7.5kw, 380V, 50Hz, Three Phase

1. This machine is driven by 7.5kw, 380V, 50Hz, three phase electrical motor.
2. This machine can both make animal feed pellets and wood sawdust pellets
3. The die hole size can be adjustable, there are 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm and 10mm for your choose.
4. The length of the final pellets can be adjustable, too.
5. Feed Capacity: 200-300kg/h
    Sawdust Capacity: 110-140kg/h

Technical Parameters of KL-C Series Small animal feed pellet mill for sale

Model
Power
Voltage V/50Hz
Die Diameter
Die Hole Specification
Saw Dust Capacity
Feed Capacity
KL120C
3KW
380V
120mm
2.5-10mm
40-60kg/h
60-100kg/h
KL150C
4KW
380V
150mm
2.5-10mm
50-90kg/h
90-120kg/h
KL200C
7.5KW
380V
200mm
2.5-10mm
110-140kg/h
200-300kg/h
KL230C
11KW
380V
230mm
2.5-10mm
150-190kg/h
300-400kg/h
KL260C
15KW
380V
260mm
2.5-10mm
220-280kg/h
400-600kg/h
KL300C
22KW
380V
300mm
2.5-10mm
300-360kg/h
600-800kg/h
KL360C
22KW
380V
360mm
2.5-10mm
300-380kg/h
700-900kg/h
KL400C
30KW
380V
400mm
2.5-10mm
400-550kg/h
900-1100kg/h

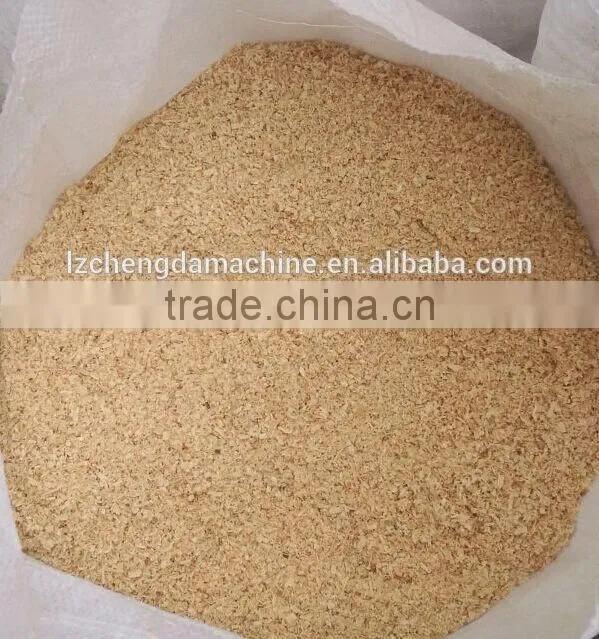

Raw material size before pelletizing

The maximum size of the materials cannot exceed the diameter of the pelletizing hole. For example, if the diameter of the hole is 6mm, the length of the raw material cannot be more than 6mm. Please ensure the proper size of raw material according to the diameter of the hole. The pellet size can be 2.5-10mm, if you want to make animal feed pellets, 2.5mm and 4mm are ok, if you want to make the wood pellets, 6mm and 8mm are better.


Moisture content before pelletizing


a)The requirement of moisture depends on different kinds of raw materials.
b) The moisture content of sawdust for the KL series die-driving pellet mill is specified to 10%-18%;
and MKL series roller-driving pellet mill  is 10%-20%. The materials should be mixed evenly.

Working principle of the small animal feed pellet mill for sale

a) It can process the oil cake and other mixed waste material to granule at one time. And it is columned granule feed and have slippery firm.
b) During the process of producing granule, the temperature can almost reach 70 to 80 centigrade. It can make flour into paste. The inner granule is cooked and fully penetrated, so that not easy to go moldy and degenerative. Then it can be stored for a long time and improve poultry dainty and assimilation function.

Kinds of  Raw Materials

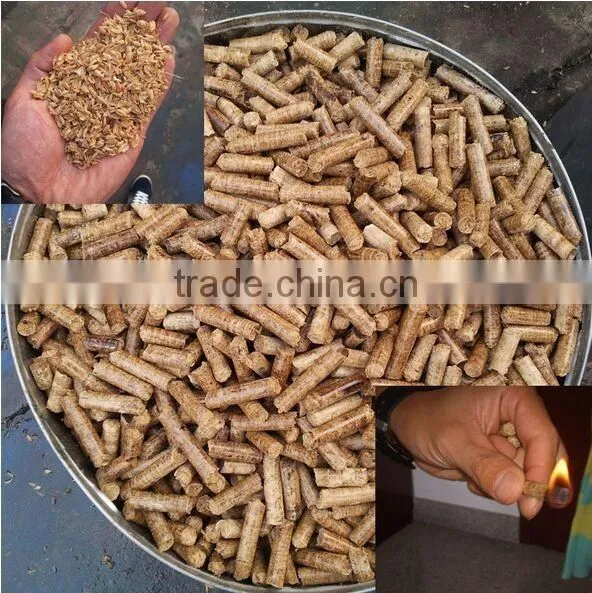

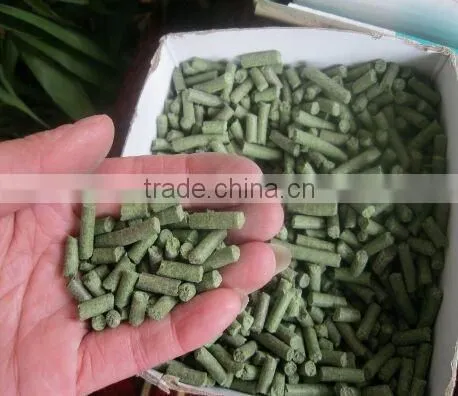

Pellets as Animal Feed

Raw Materials: soybean meal, corn, straw, green fodder, meat and bone meal, whey powder, fish meal, alfalfa, straw, grass, leaves, etc.

Pellets as Stove Fuel

Raw Materials: straw, alfalfa, wood waste, cornstalks, cardboard, grass, leaves, clippings,rice husks, branches, wood shavings, sawdust,etc.

KL Series Spare Part

We have all of the spare parts for pellet machines,  the roller and the die are just suitable for Laizhou Chengda Machinery Co., Ltd pellet machins, if you want to buy the spare parts for the used machine you bought from other suppliers, please contact me about the details before you place an order.

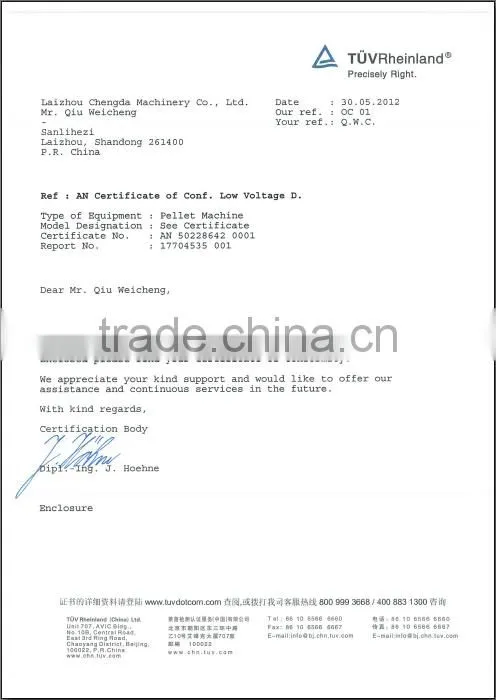

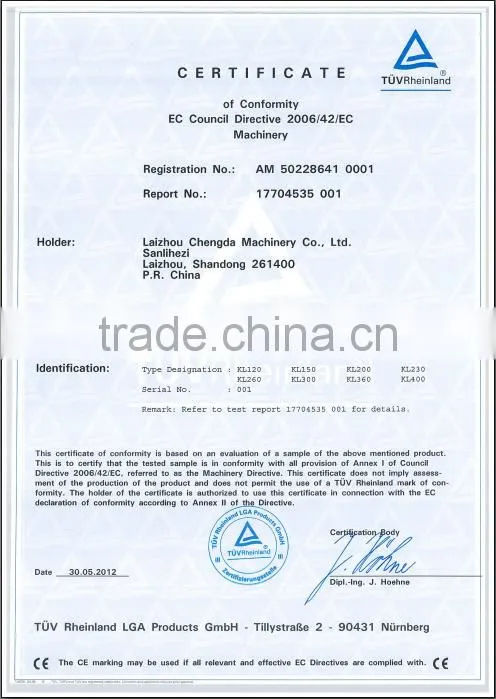

Certifications
Our Service

1. 1 year guaranteed time with life-time service.
2. Free training, Guidance Installation and Debugging.If needed, engineers can be sent to your factory for installation and commissioning, training.
3. English manual and video for installation & operation.
4. Any problem in operation or others about the machine, you can contact with us we will give solution in 24-48 hours.




.

Packing & Delivery
Packaging
Size
100*46*90cm
Weight
200/230kg



Packaging Details
Strong plywood case as exported standard, if your order is big we suggest shipping by container, we will calculate the total volume of your order and saving shipping cost for you.

Shipping: By sea, By air; Express (DHL/FedEx; Railway; Highway)
Our Company

Laizhou Chengda Machinery Co., Ltd

Laizhou Chengda Machinery Co., Ltd was founded in 1992, which is a high tech that enterprise integrates new product design, development, manufecturing and international trade business.
Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler . Please free free to contact us if you have any inquiries and we will try our best to meet your demands.
