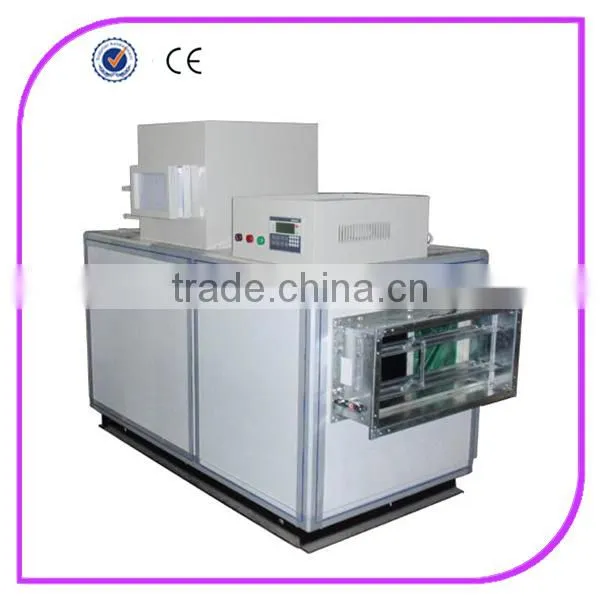

Low cost rotary dehumidifier price
Process flow diagram:
Technical parameters:
Model |
GZB-2500 |
GZB-3500 |
GZB-6000 |
GZB-10000 |
GZB25000 |
||
Air volume |
m³/h |
2100-2700 |
3000-4000 |
4500-6500 |
8500-10000 |
20000-25000 |
|
Standard air volume |
m³/h |
2500 |
3500 |
6000 |
10000 |
25000 |
|
Standard regeneration air volume |
m³/h |
850 |
1180 |
2000 |
3400 |
8400 |
|
Standard dehumidification |
Kg/h |
19.8 |
27.8 |
47.8 |
81.6 |
200 |
|
Regeneration energy consumption |
Steam |
Kg/h |
45 |
65 |
108 |
180 |
450 |
0.4Mpa |
Diameter |
DN20 |
DN20 |
DN20 |
DN25 |
DN32 |
|
Electric energy |
KW |
22 |
30 |
50 |
84 |
210 |
|
Processing power of fan |
|
KW |
2.2 |
3 |
4 |
7.5 |
18.5 |
Regeneration blower power |
|
KW |
0.75 |
0.75 |
1.1 |
3 |
7.5 |
Wheel drive power |
|
KW |
0.1 |
0.1 |
0.1 |
0.2 |
0.2 |
Installed power |
Steam regeneration |
KW |
3.05 |
3.85 |
5.2 |
10.7 |
26.2 |
Energy regeneration |
KW |
25.05 |
33.85 |
55.2 |
94.7 |
236.2 |
|
Cross sectional area |
W*H |
mm |
1000*1680 |
1100*1780 |
1300*1980 |
1500*2280 |
2100*2950 |
Frozen water |
t/h |
7 |
12 |
20 |
30 |
75 |
|
T≤7℃ |
Diameter |
DN32 |
DN50 |
DN50 |
DN65 |
DN100 |
|
Note: 1.listed in this performance based on conditions: into the wind, the wind inlet parameters of regeneration of 28 DEG C, relative humidity 60%RH, regeneration temperature of 120 DEG C, air density 1.2kg/m3.
2.regeneration heating can use electric heating, steam heating, heat conducting oil heating in three ways.
3.reserves the right to change the technology or design power, non-standard requirements or special specifications can be customized.
Application:
1:Industry: drying soft capsules, colloid, powder manufacturing, storage and packaging, bottling process such as coating and drugs.
2: Electronic Industry: widely used in lithium battery dry, optical fiber, PCB board, semiconductor, transformer manufacturing and other electrical and electronic fields.
3: the food processing industry: applied to dehydrated vegetables, wine, chocolate, chewing gum manufacture and flour processing technology.
4: Research: Applied Physics, chemical analysis room, room simulation environment, maintain the cultural relics preservation room and other constant temperature and humidity environment.
5: industrial coating: coating technology has been widely used in sandblasting shipyards and chemical plant of large equipment.
6: dry storage: application to steel, seeds, paper, rubber, wood, furniture, precision electronic machinery spare parts and other multi moisture-proof warehouse storage.
7: National Defense military: used for aircraft and tanks and other weapons maintenance, bullets and other materials storage, spacecraft manufacturing field.
Product features:
1.High performance super silica gel wheel.
2.The G4/F6 filter 2 air inlet can be built conveniently cleaning (optional).
3 high strength aluminum alloy frame.
4 basic type automatic control, ECS control (optional).
5 regeneration heating (electricity / steam optional).
6 optional high voltage low noise blower.
Our Factory:
Certification:
Any question about rotary dehumidifier ,please feel free to let us know.
