Humidifier industrial humidifier
Scope of Application:
Textile industry, Paper industry, Computer room, Electronic industry, Spraying industry, Gunpowder industry, Laboratory, Tobacco industry, HVAC industry, Preservation storage, Planting industry and so on.

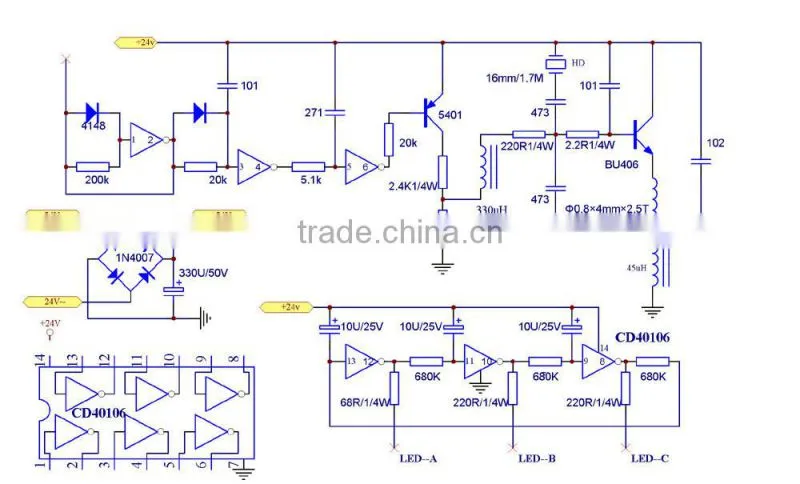

Principle of ultrasonic humidifier:
It consists of power conversion, transducers, humidity sensors ,ultrasonic generator and IC with automatic humidity function. Close switch s1,direct light H light, fan running, power transformer T turn voltage from 220V to 480V.Transducer is piezoelectric ceramic TD, which determine the ultrasonic oscillation frequency and load of oscillation circuit.
Working principle:
Technical Parameters:
Model |
GZ-G300Z |
Spray rate |
≥30Kg/h |
Method of control |
Humidity automatic control |
Voltage |
220V/50Hz |
Consumption |
3000W |
Applying range |
700-900CBM |
Diameter of outlet |
110mmx4 |
RH Scope |
10%-95% |
N.W |
68Kg |
Dimension |
1050x700x600mm |
Features:
1.Ultrasonic industrial humidifier machines adopt electronic overclocking shock(vibration frequency of 1.7MHz,over range of human hearing, no harm to human and animals).
2.High-frequency resonant of atomizing film turn water into spray out of the surface of the water.
3.Don't need heat and chemical medicine to produce 1-10μ water particles flowing in the air to achieve the humid effects.

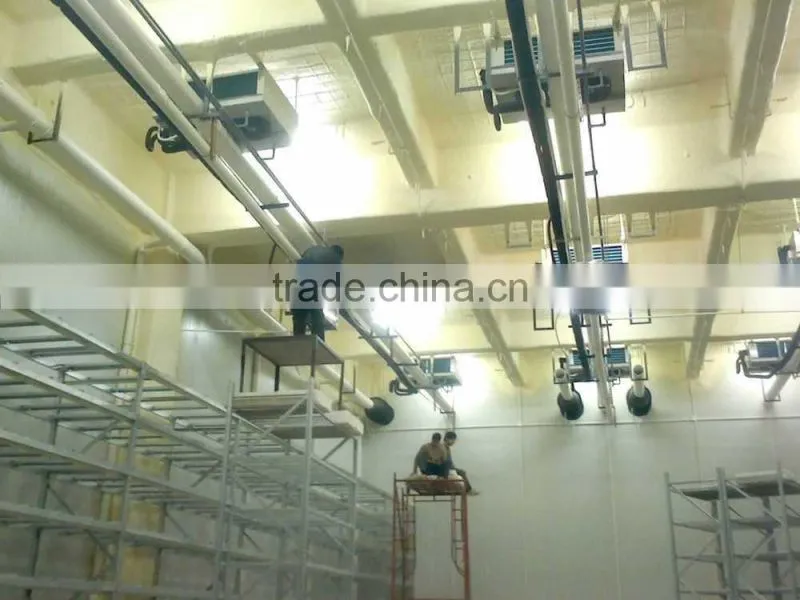

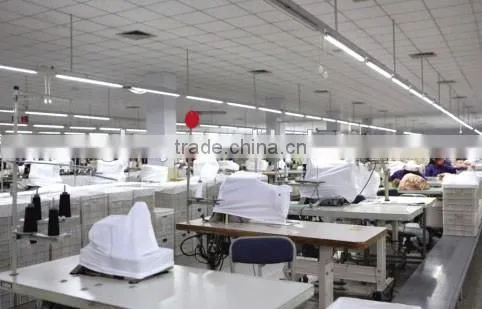

Application case:
Certification:
