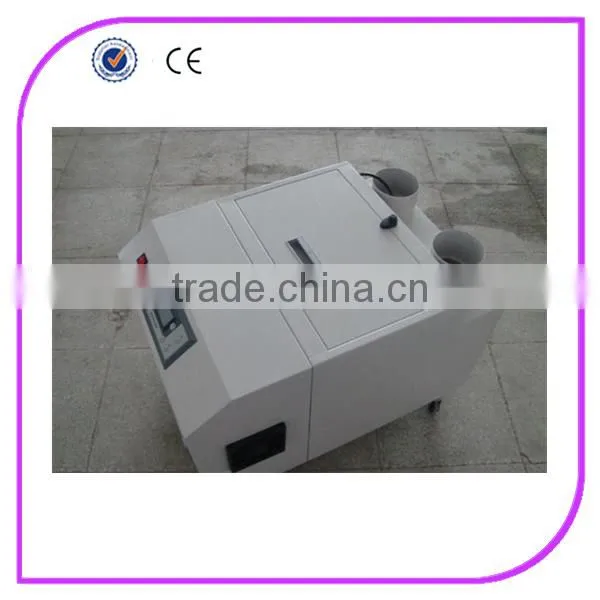

Industrial ultrasonic humidifier industrial humidifier automatic humidifier
Principle of ultrasonic humidifier:
It consists of power conversion, transducers, humidity sensors ,ultrasonic generator and IC with automatic humidity function. Close switch s1,direct light H light, fan running, power transformer T turn voltage from 220V to 480V.Transducer is piezoelectric ceramic TD, which determine the ultrasonic oscillation frequency and load of oscillation circuit.
Working principle:
Scope of Application:
Textile industry, Paper industry, Computer room, Electronic industry, Spraying industry, Gunpowder industry, Laboratory, Tobacco industry, HVAC industry, Preservation storage, Planting industry and so on.
Technical Parameters:
Model |
GZ-G030Z |
GZ-G060Z |
GZ-G090Z |
GZ-G120Z |
GZ-G180Z |
GZ-G300Z |
Spray rate |
≥3Kg/h |
≥6Kg/h |
≥9Kg/h |
≥12Kg/h |
≥18Kg/h |
≥30Kg/h |
Voltage |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
Consumption |
300W |
600W |
900W |
1200W |
1800W |
3000W |
Applying range |
30-90CBM |
100-150CBM |
150-200CBM |
200-400CBM |
400-500CBM |
700-900CBM |
Diameter of outlet |
110mm |
110mm |
110mmx2 |
110mmx2 |
110mmx3 |
110mmx4 |
RH Scope |
10%-95% |
10%-95% |
10%-95% |
10%-95% |
10%-95% |
10%-95% |
N.W |
23Kg |
25Kg |
29Kg |
32Kg |
50Kg |
68Kg |
Dimension |
450x380x550mm |
450x380x550mm |
680x4000x550mm |
680x4000x550mm |
550x380x550mm |
1050x700x600mm |
Features:
1.Ultrasonic industrial humidifier machines adopt electronic overclocking shock(vibration frequency of 1.7MHz,over range of human hearing, no harm to human and animals).
2.High-frequency resonant of atomizing film turn water into spray out of the surface of the water.
3.Don't need heat and chemical medicine to produce 1-10μ water particles flowing in the air to achieve the humid effects.
Application case:
Certification:
Any question about humidifier ,please feel free to let us know.
