Specifications
screw rolling machine:1. process straight thread
2. Cutting tools adopt automatic opening-closing device
screw rolling machine for construction machinery for rebar
1. screw rolling machine specification:
Name |
screw rolling machine |
Model |
YGS-40B |
Rebar diameter |
φ12-φ40mm |
Power |
4KW |
Voltage |
3N 380V/50HZ |
Main shaft speed |
40-62r/min |
Max rolling length |
100mm |
Overall size |
1100*480*1040mm |
Net weight |
420kg |
Types of Rollers |
Big |
Middle |
Small |
Diameter of Rebar Processing |
14-22 |
25-32 |
36-40 |
Thread Pitch |
2.5 |
3.0 |
3.5 |
2. screw rolling machine details:
3. screw rolling machine features:
a. This screw rolling machine has high dimensional accuracy, high mechanical strength.
b. It can process grade HRB335 and HRB400 steel bar range of 16-40 mm in diameter.
c. Left-handed and Right-handed threa can be processed when using screw rolling machine.
d. The screw rolling machine is mainly used for building the thread rolling ribbed steel wire head, which is the realization of the key equipment of reinforced connection.

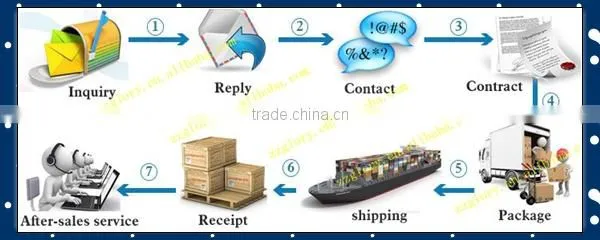

4. How to get this screw rolling machine:
5. Any question about the screw rolling machine, please ask us at any time.
