Large Capacity Paper Pulp Linear Vibrating Separator

Large Capacity Paper Pulp Linear Vibrating Separator photo-1
US$ 2,500 - 7,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Linear
Application:
Other, paper pulp linear vibrating separator
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai tianjin qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Linear
Application Other, paper pulp linear vibrating separator
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1020-1S
Voltage 220v,380v or as your requirement
Power(W) 0.55kw
Dimension(L*W*H) 2230x1390x1640mm
Weight 810kg
Certification ISO9001:2008, CE, BV
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

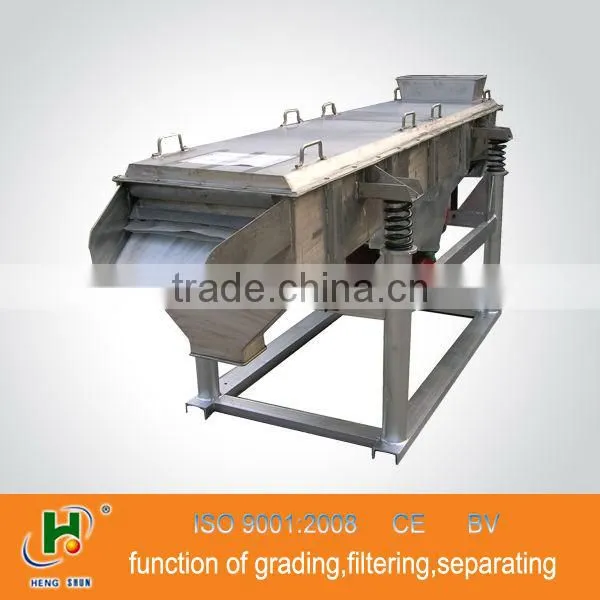

Large capacity paper pulp linear vibrating separator





Summary description

Large capacity paper pulp linear vibrating separator

Large capacity paper pulp linear vibrating separator

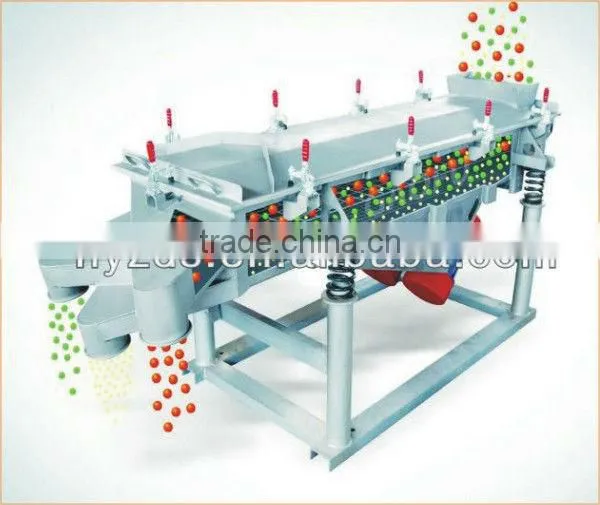

Large capacity paper pulp linear vibrating separator uses motor as the

vibration source, making materials be tossed and

move forward in astraight line on the screen.

There are several balls on the bottom of screen

frame hit each otherwhen vibrating, which can

clear screen and avoid blocking effectively.



What features vibrating separator owns ?

Large capacity paper pulp linear vibrating separator

1) Continuous production, single or multi-layer auto-classification filtering

2) Good sealing performance, no dust overflow.

3) Energy-saving and low noise with vibration motor.

4) Start fast and stop smoothly

5) Simple installation, easy operation and maintenance

6) High utilization rate of screen, large unit area, not easy to block, but easy replacement of screen.

7) High-precision screening reach to 96% or above, large processing capacity.



Technical parameters

Large capacity paper pulp linear vibrating separator

Model

HY-520

HY-525

HY-1020

HY-1025

HY-1030

Appearance Dimension

500×2000

500×2500

1000×2000

1000×2500

1000×3000

Material  Granularity

0.074-10

0.074-10

0.074-10

0.074-10

0.074-10

Angle

-7°

-7°

-7°

-7°

-7°

Amplitude

3-4.5

3-4.5

3-4.5

3-4.5

3-4.5

Layer

1-6

1-6

1-6

1-6

1-6

Power

2× (0.37-0.75)

(0.37-0.75)

2× (0.55-1.1)

2× (0.55-1.1)

2× (0.55-1.1)



Note: We can design linear vibrating separator with special specifications according to the technical

information such as technical data and size of the equipment provided by customers.

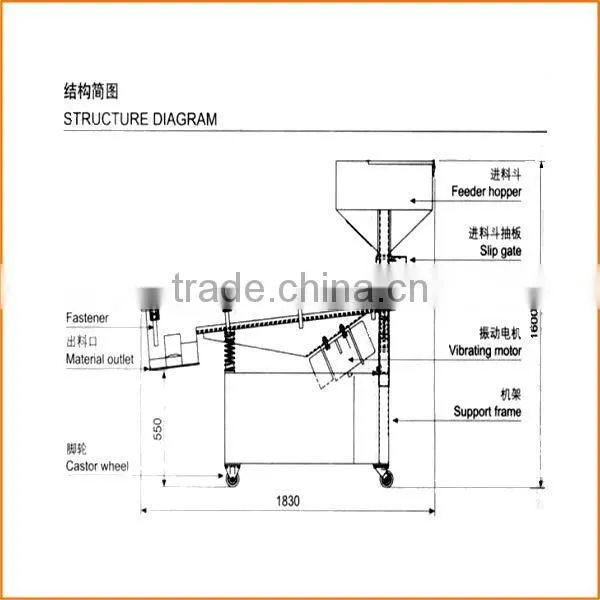

Structure of linear vibrating separator

Large capacity paper pulp linear vibrating separator

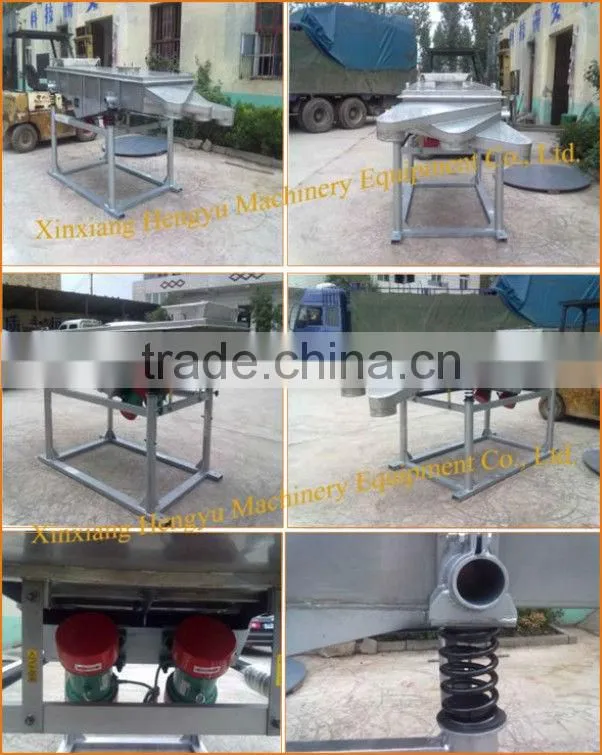

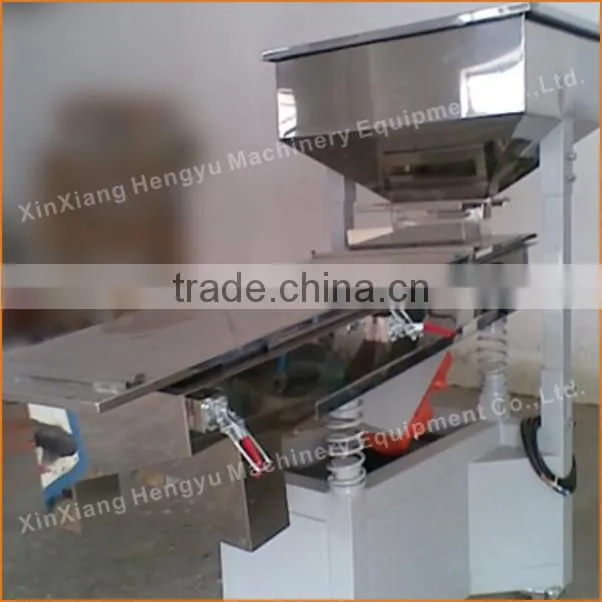

Pictures of linear vibrating separator

Large capacity paper pulp linear vibrating separator

Large capacity paper pulp linear vibrating separator



Our after-sales service

Large capacity paper pulp linear vibrating separator

In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: Wearing parts do not include.)

Large capacity paper pulp linear vibrating separator



Write an e-mail to tell us your detailed requirements now, suitable linear vibrating separator will be chosen for you!
