Specifications
1.CE & ISO9001:20002.1-9 layers/decks
3.For grain analysis
4.Stainless steel 304
5.Low consumption and low noise

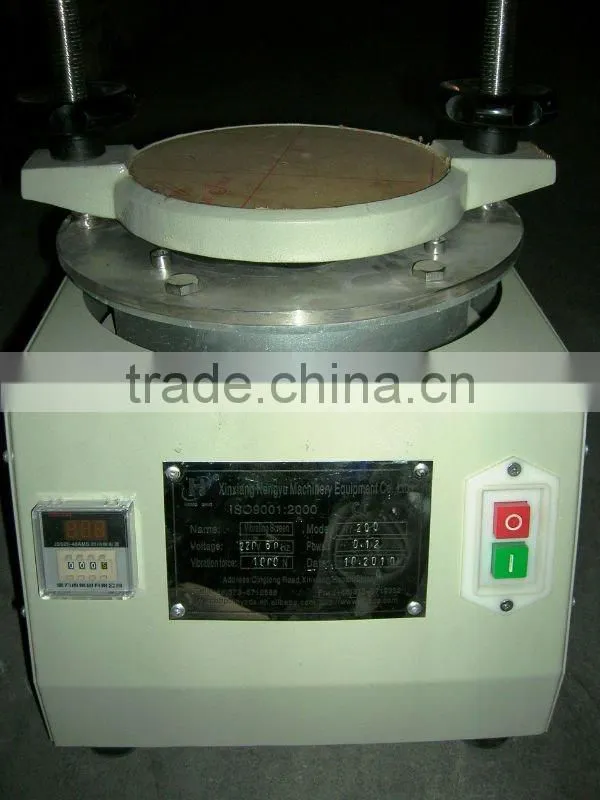

Hengyu Brand Standard Pharmaceutical Test Sieve Shaker
let us know more about the product :
Function
The Pharmaceutical test sieve shaker of the series HY 200 are used in research & development, quality control of raw materials, interim and finished products as well as in production monitoring. Sharp fractions are obtained even after short sieving times.
Application Examples
cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, plastics, sand, seeds, soils, washing powder, ...
Product Advantages:
· Suitable for dry and wet sieving
· Excellent separation efficiency even with short sieving times
· Sieve stack up to 450 mm height
· Free adjustment of all process parameters(time, amplitude)
· Patented electromagnetic drive with 3D motion
· Silent operation, ergonomic design
· Comfort clamp available
3. Technical data
No. |
Item |
Unit |
Data |
|
1 |
Sieves |
Layer |
8 |
|
2 |
Diameter |
Mm |
200 |
|
3 |
Material size |
Mm |
0.038 – 3 |
|
4 |
Noise |
Db |
Less than 50 |
|
5 |
Vibration amplitude |
Mm |
3 – 5 |
|
6 |
Vibration motor |
Voltage |
V |
220 – 240 |
Rotate speed |
Rpm |
1400 |
||
Power |
KW |
0.12 |
||
7 |
Overall dimension ( length*width*height ) |
Mm |
370x350x650 |
|
8 |
Net weight |
kg |
37 |
|
Function principle
All test sieve shaker of the series HY 200 work with an vibration motor drive. This drive produces a 3D throwing motion that moves the product to be sieved equally over the whole sieving surface. The advantage: high stress capacity, extremely smooth operation and short sieving times with high separation efficiency.
Product components show

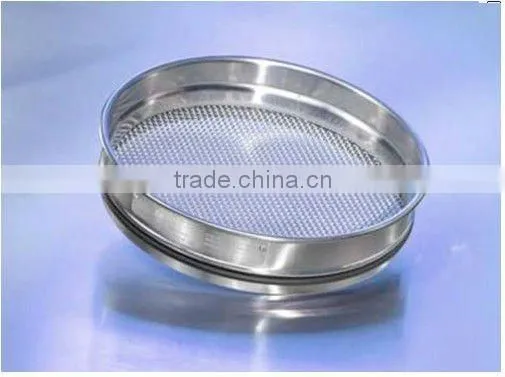

Picture of sieve
Picture of vibrating motor
Picture of machine base
