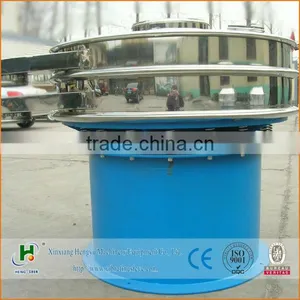

China High Frequency Electric Sieve Vibrator

China High Frequency Electric Sieve Vibrator photo-1
US$ 500 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, sieving/screening/filtering machine
Application:
Food Processing
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, sieving/screening/filtering machine
Application Food Processing
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1000-1S
Voltage 220V to 415V
Power(W) 0.55kw
Dimension(L*W*H) 1160X1160X810mm
Weight 150KG
Certification CE, BV and ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

            China high frequency electric sieve vibrator



                                    It is a good helper For ParticlePowder and Liquid.





What can we do for you?

China high frequency electric sieve vibrator

1. Improves your product quality

2. Increases your productivity

3. Reduces your costs

4. Operator friendly



More Features

China high frequency electric sieve vibrator

A.  Mature technology, stable structure, high performance at a good price.

B.  Stainless steel 304 sieves with long service life.

C.  The thickness of our plate is up to the international standard

D.  Quickly change the screen in less than 5 minutes.

E.  Three functions of our machine, such as grading particles into different levels, remove the impurity from

powder, separate solid from liquid.

F.  Sort material into muti-levels at one operation.

G.  IP55 protection level motor and higher or lubrication free motor as request.



Main function of the model

China high frequency electric sieve vibrator

1. Size classification: separation of particles into groups of comparable size from the materials.
2. Gravity filtering: removal of solids from liquids and slurries.
3. Product reclamation: removal of the solids from waste product or clarification of waste liquid for further use.
4. Screening: separation of a few oversize particles from a quantity of materials.
5. Liquid cleaning: cleaning of wastewater or removing the solids from recalculating liquid.



Technical Parameters

China high frequency electric sieve vibrator



 Model



 Diameter

     Screen surface



Screen opening



 Power



Deck

  Diameter

  Area

(mm)

(mm)

(m2)

(kw)

HY-400

400

360

0.1017









      5-500mesh

0.18

1-4

 HY-600

 600

560

0.2461

0.25-0.55

1-4

 HY-800

800

760

0.4534

0.55-0.75

1-4

 HY-1000

1000

930

0.6789

0.75-1.5

1-4

 HY-1200

1200

1130

1.0023

1.10-1.75

1-4

 HY-1500

1500

1430

1.6052

1.50-2.20

1-4

 HY-1800

1800

1730

2.3494

2.20-3.0

1-4









































You can choose the models with two ways

China high frequency electric sieve vibrator

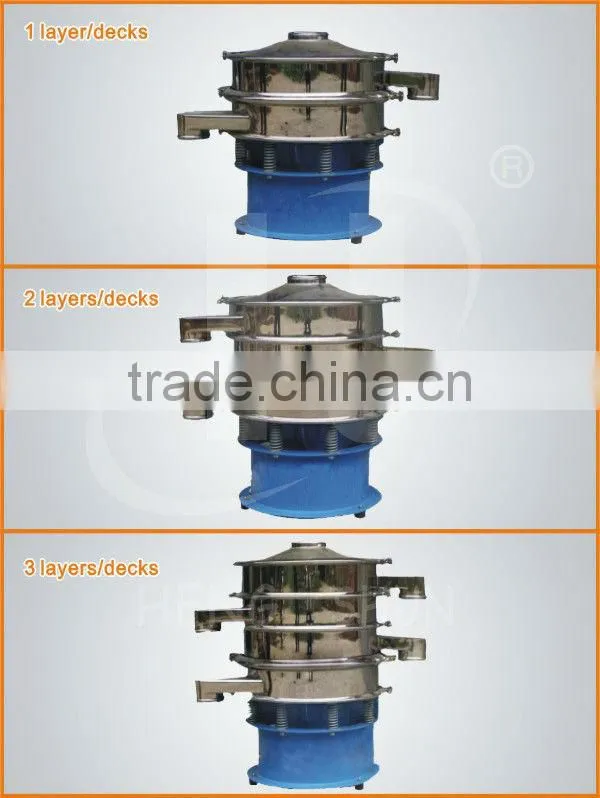

1. Option on deck number, depend on your aim also:

China high frequency electric sieve vibrator

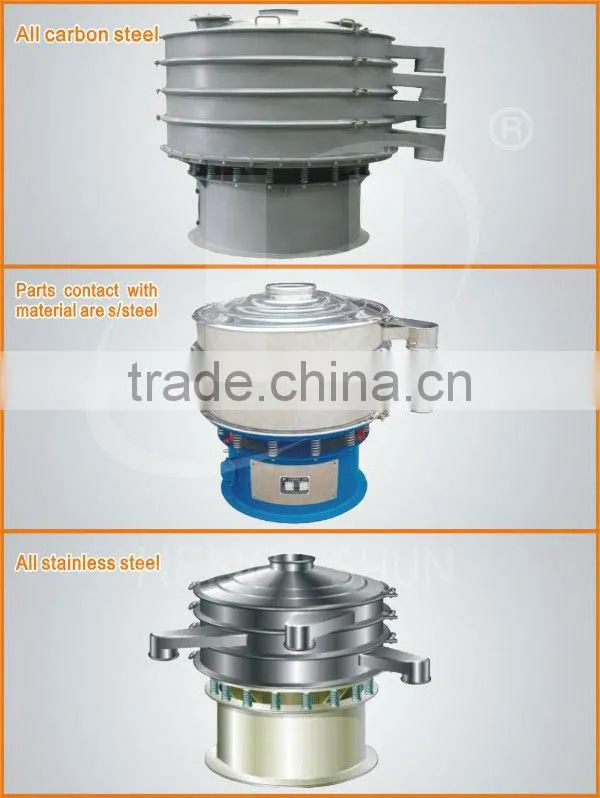

2. Option on material, depend on your processing materials

China high frequency electric sieve vibrator

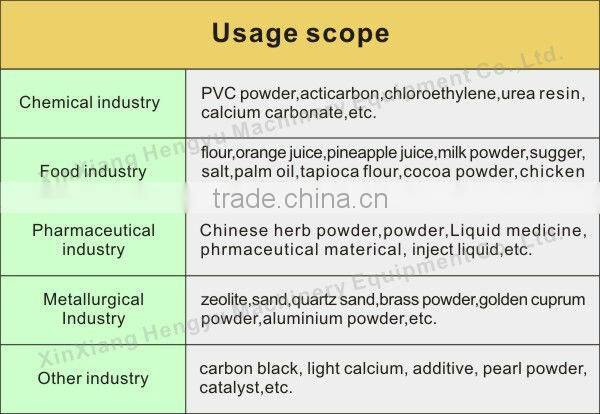

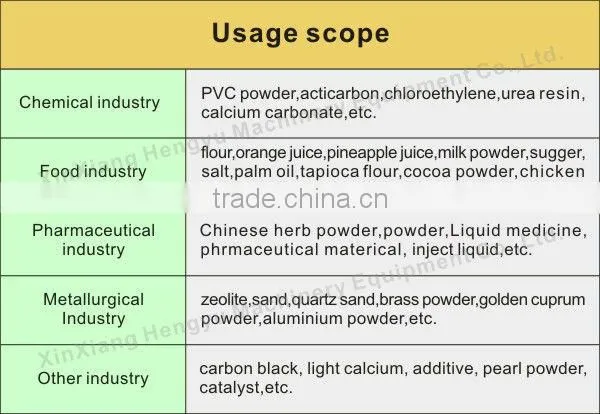

Application

China high frequency electric sieve vibrator

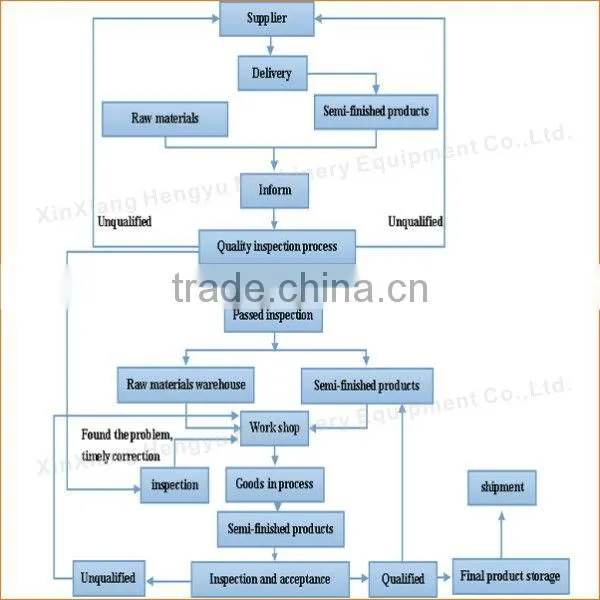

Product's process

China high frequency electric sieve vibrator



Ready for your order

China high frequency electric sieve vibrator
By using the given specifications, we can complete initial design or matching products recommended in only 24 hours.

For your volume demands, we can produce up to 100 units each month. Call or email us today for additional information.

China high frequency electric sieve vibrator



Tell us three questions, the suitable models offered for you:
1. The specific name of your raw material?
2. The wire screen mesh sizes you needed?
3. The production capacity per hour you asked?



If you are interested in our ultrasonic rotary vibrating screen, pls email or call us.
