China Xinxiang Factory Wholesale Fine and Cheaper Feeder for Soy Bean

China Xinxiang Factory Wholesale Fine and Cheaper Feeder for Soy Bean thumbnail-1
China Xinxiang Factory Wholesale Fine and Cheaper Feeder for Soy Bean photo-1
US$ 500 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Vibrating feeder can feed lump or granulated materials to other device
Power Type:
Other, Vibrating motor
Contact Supplier Request Quote Chat Now
Xinxiang Hengyu Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Vibrating feeder can feed lump or granulated materials to other device
Power Type Other, Vibrating motor
Capacity(t/h) 25-1000 tons per hour
Place of Origin Henan, China
Brand Name HENG SHU
Model Number ZG-750
Power(W) 2*0.75 KW
Dimension(L*W*H) subject to the model
Weight 1300 KGS
Certification ISO 9001:2008, CE, BV Reports
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

                Xinxiang Factory wholesale fine and cheaper feeder for soy bean


 -------------------------------------------fine and cheaper feeder information-------------------------------------------------



Features

1. Easy to install and simple maintenance.

2. Vibrating motor as excitation source.

3. Two electromechanical motors are used to generate linear motion.

4. Simple structure and stable work.

5. Wide range of materials to be feeded.

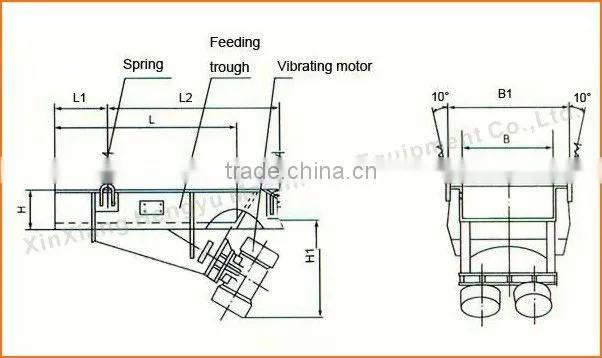

Structure

China Xinxiang Factory wholesale fine and cheaper feeder for soy bean



Technical parameters

China Xinxiang Factory wholesale fine and cheaper feeder for soy bean

Model

Max granular
size(mm)

Capacity
(t/h)

Motor

model

Power

(KW)

Shaker
frequency
(r/m)

Double
amplitude
(mm)

Exciting
force
(KN)

ZG-25

60

25

YZS-2.5-4

0.25×2

1500

2~3

5

ZG-30

60

30

YZS-2.5-4

0.25×2

1500

2~3

5

ZG-60

90

60

YZS-5-4

0.4×2

1500

2~4

10

ZG-80

160

80

YZS-5-4

0.4×2

1500

2~4

10

ZG-100

210

100

YZS-8-4

0.75×2

1500

2~5

16

ZG-200

270

200

YZS-8-4

0.75×2

1500

2~5

16

ZG-300

300

300

YZS-17-4

0.75×2

1500

2~5

34

ZG-400

300

400

YZS-17-4

0.75×2

1500

3~5

34

ZG-500

300

500

YZS-17-4

0.75×2

1500

3~5

34

ZG-750

400

750

YZS-30-6

2.5×2

1000

4~6

60

ZG-1200

400

1200

YZS-30-6

2.5×2

1000

4~6

60

ZG-1800

420

1800

YZS-75-6

5.5×2

1000

5~8

150

ZG-2000

420

2000

YZS-75-6

5.5×2

1000

5~8

150

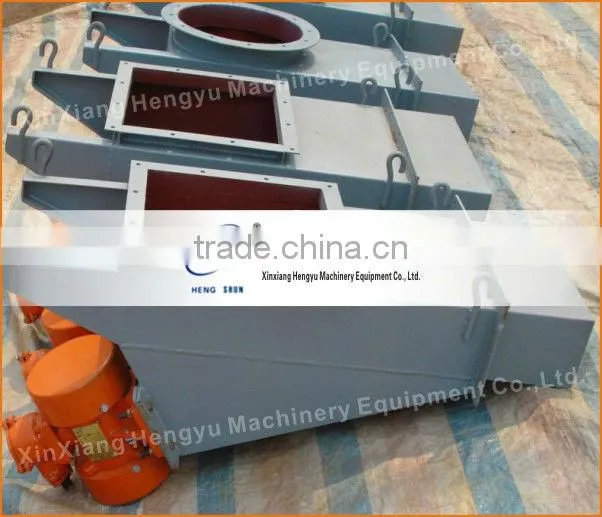

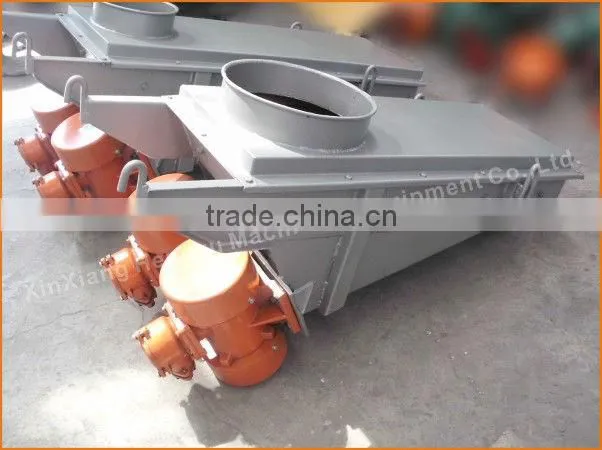

Fine and cheaper feeder photos show

China Xinxiang Factory wholesale fine and cheaper feeder for soy bean

China Xinxiang Factory wholesale fine and cheaper feeder for soy bean



Maintenance and operation

1. Before you use the machine, test whether the machine is normal operation, please.
2. If it has any abnormal phenomenon, maintenance in time.
3. After using, clean equipment.



Our fine and cheaper feeder machine has 12 Months' Warranty period.



-----------------------------------------------------our company information--------------------------------------------------------



Best service will be offered

China Xinxiang Factory wholesale fine and cheaper feeder for soy bean

Tell us three questions, the suitable models fine and cheaper feeder will be

offered to you,



1. The specific name of your feeding material?
2. The material feeding sizes you needed?
3. The production capacity per hour you asked?



Write an e-mail to tell us your detailed requirements now, suitable

fine and cheaper feeder machine will be chosen for you!

China Xinxiang Factory wholesale fine and cheaper feeder for soy bean
