Home > Manufacturing & Processing Machinery > Sorting Machine > Vibrating Screen > Small Capacity 450mm Oil Vibrating Filter Sieve

Small Capacity 450mm Oil Vibrating Filter Sieve

Small Capacity 450mm Oil Vibrating Filter Sieve photo-1
US$ 500 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, oil vibrating filter sieve, granule, powder, mucus
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Other, oil vibrating filter sieve, granule, powder, mucus
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-450-1S
Voltage 220v, 380v,415v or as your local power
Power(W) 0.18kw
Dimension(L*W*H) 460*550*665mm
Weight 52kgs
Certification ISO9001:2008, CE, BV certificate
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Oil vibrating filter sieve
2.Rapidly replace the screen
3.Easy to move and operate
4.Compact structure, low consumption





--------------------------------oil vibrating filter sieve--------------------------



Small capacity 450mm oil vibrating filter sieve



Summary desription

Small capacity 450mm oil vibrating filter sieve

Xinxiang Hengyu oil vibrating filter sieve with high efficiency for sieving and filtration, suitable for any granule, powder and mucilage.

Screen mesh never clog, no powder fly up, the minimum size for sieving is 300 mesh. Small appearance, light weight, move at random ,less room to occupy.



What advantage vibrating filter sieve will bring?

Small capacity 450mm oil vibrating filter sieve

1: High efficiency, retained design, any powders and mucilage are suitable for using.

2: Small volume, low noise, easy to operate and move, design with movable wheel.

3: Supplied with many kinds of screen frame design. Easy to change and clean.

4: Handing flour up to about 700kg/h with 30 mesh screen.

5: Special apparatus for not blocking of mesh screen
6: Automatic discharge of impurities and coarse materials, and operation can be automated
7: According with ISO9001:2008 and CE, BV Certification.



Technical parameters

Small capacity 450mm oil vibrating filter sieve

Product Name

oil vibrating filter sieve

Model

HY-450

Sieve

1 layer

Sieve Size

0.038-3 mm

Effective Screen Surface Diameter

400mm

Frequency

1460 R/min

Power

0.18KW

Voltage

380V

Material

Stainless steel (304) or Carbon steel

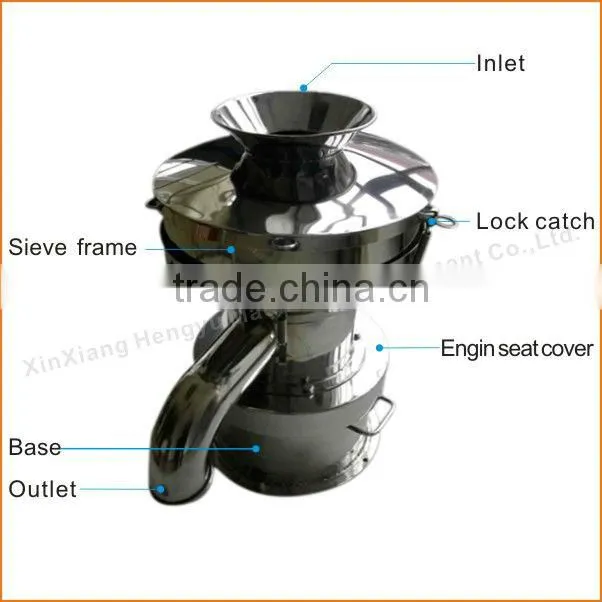

Structure of vibrating filter sieve

Small capacity 450mm oil vibrating filter sieve

Small capacity 450mm oil vibrating filter sieve



450mm vibrating filter sieve applied in

Small capacity 450mm oil vibrating filter sieve

1.Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder

2.Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup

3.Metallurgy, Mine industry: aluminum powder, copper powder, ore alloy powder, welding rod powder,

4.Medicinal industry: all kinds of medicine

5.Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.

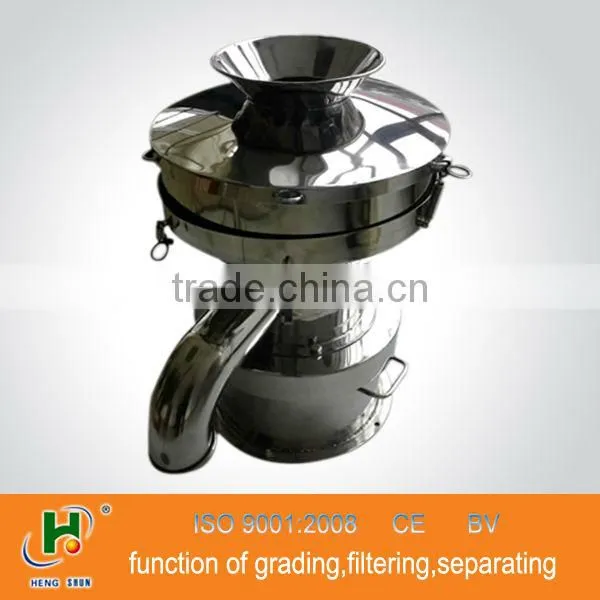

Picture of vibrating filter sieve

Small capacity 450mm oil vibrating filter sieve

Small capacity 450mm oil vibrating filter sieve



----------------------------Hengyu Culture and Service----------------------



1. Our company have over 9 years' experience in vibrating screen line

2. Our product can be designed according to your requirements

3. Our price is also competitive



Small capacity 450mm oil vibrating filter sieve

Small capacity 450mm oil vibrating filter sieve

Small capacity 450mm oil vibrating filter sieve

Small capacity 450mm oil vibrating filter sieve



-----------------------------------Selection guidelines--------------------------



Before selecting the right model of oil vibrating filter sieve, please inform us the following information:
1. Material’s name, the density, water content (%)?
2. The necessary capacity you required (per hour)?
3. The wire screen mesh sizes you need?
4. Machine material. Pls choose from the following 3 options:
    A. Carbon steel
    B. The contacting part is SUS304, the other parts is carbon steel.
    C. Full SUS304 or SUS316.



Your inquiry will be answered within 24 hours. Please feel free to contact us. Small capacity 450mm oil vibrating filter sieve
