High Precision Round Coal Screening Equipment

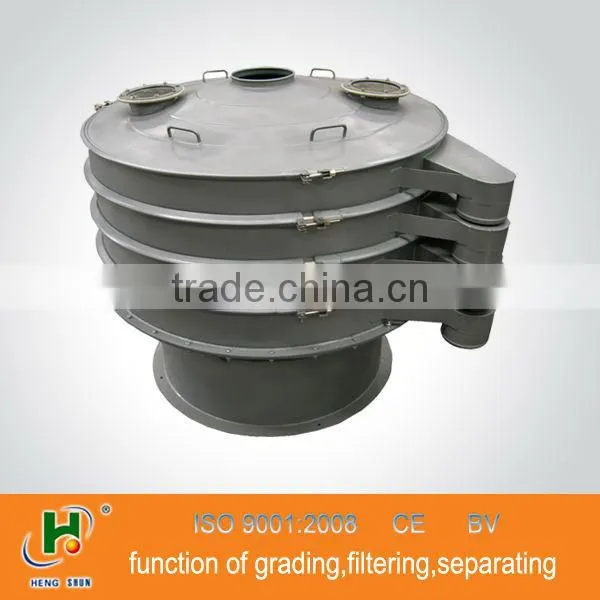

High Precision Round Coal Screening Equipment photo-1
US$ 1,000 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, screening machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Other, screening machine
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1500
Voltage 110V - 415V
Power(W) 2.20 KW
Dimension(L*W*H) 1360X1360X885mm
Weight 640 kg
Certification BV, CE & ISO9001:2008
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Special for sand,coal screening
2.Common steel with anti-corrsion paint
3.Multi-layer, such as 2,3,4 layer
4.CE, ISO, BV

Welcome you to our website, Let's know the more details of our



Coal Screening Equipment





Product's Function

 high precision round coal screening equipment



 high precision round coal screening equipment





1. Grading
The Multi—layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.


2. Remove the impurity
The coal screening eqipment quickly separate a few oversize or undersized particles from a quantity of materials.



3. Solid-liquid separation

The mixture of solid and liquid can be separated effectively by single or multi—layer type into different

 grade materials.





Product features

high precision round coal screening equipment



1. Fully closed, no dust flying that will help to improve working conditions.

2. High screening efficiency- do not mesh plug and powder fly, screen up to 500 meshes (0.028mm).

3. Discharging coarse and fine material can grade automatically and reach automatic operation.

4. Up to four screen surfaces can be mounted on one unit

5. Outlet can be adjustable in the range of 360 °, which is convenient to arrange.

6.IP55 protection level motor and higher or lubrication free motor as request.



Technical Parameter

high precision round coal screening equipment





Model



Diameter

Screen surface



Screen opening

Power



Deck

Diameter

Area

(mm)

(mm)

(m2)

(kw)

 HY-400

400

360

0.1017









5-500mesh

0.18

1-4

 HY-600

600

560

0.2461

0.25-0.55

1-4

 HY-800

800

760

0.4534

0.55-0.75

1-4

 HY-1000

1000

930

0.6789

0.75-1.5

1-4

 HY-1200

1200

1130

1.0023

1.10-1.75

1-4

 HY-1500

1500

1430

1.6052

1.50-2.20

1-4

 HY-1800

1800

1730

2.3494

2.20-3.0

1-4





Product procedure

 high precision round coal screening equipment



 high precision round coal screening equipment





How to choose the suitable model?

high precision round coal screening equipment



Please provide the detailed information as follows, so that we can supply you the suitable product:
1. Processing raw materials: name, particle size?
2. Handling capacity:  eg: Kg/hour?
3. Mesh size:  eg: mesh or mm?
4. Materials of machine: carbon steel, parts contact with material are stainless steel or full stainless steel?







 Believe in us, best quality of vibration sand screener will be offered to you; here please send us your e-mails now!
