HY linear type power vibration sieve machine
HY Brand linear powder vibration sieve is a high efficient coarse screening equipment. It has two driving modes,
dual vibration motor driving(light-duty) and dual vibration exciter driving (heavy-duty).
Features,
1. Linear motion trail and large processing capacity.
2. Simple structure, low power consumption, easy maintenance,
3. All closed structure with the absence of dust disperse, adjustable screen surface inclination.
4. ISO9001:2008, CE certification, BV report.
Operating Principle,
HY Brand linear powder vibration sieve uses motor as the vibration source, making materials be tossed and
move forward in a straight line on the screen. There are several balls on the bottom of screen frame
hit each other when vibrating, which can clear screen and avoid blocking effectively.
Applications Scope,
1) For screening&grading of dry powder, fine particle and fine powder.
2) Widely used in abrasive, building material, ceramic, chemical, fertilizer, food, plastic, pharmaceutical,
metallurgy industries, etc.
Technical parameters,
Model |
HY-520 |
HY-525 |
HY-1020 |
HY-1025 |
HY-1030 |
Appearance Dimension |
500×2000 |
500×2500 |
1000×2000 |
1000×2500 |
1000×3000 |
Material Granularity |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
Angle |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
Amplitude |
3-5 |
3-5 |
3-5 |
3-5 |
3-5 |
Layer |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
Power |
2× (0.37-0.75) |
2×(0.37-0.75) |
2× (0.55-1.1) |
2× (0.55-1.1) |
2× (0.55-1.1) |
The above metioned is our standard model size, we are able to design for you according to your working
site, production capacity, your aim and materials features, just feel free to contact us today, let’s sovel
screening problems to together!

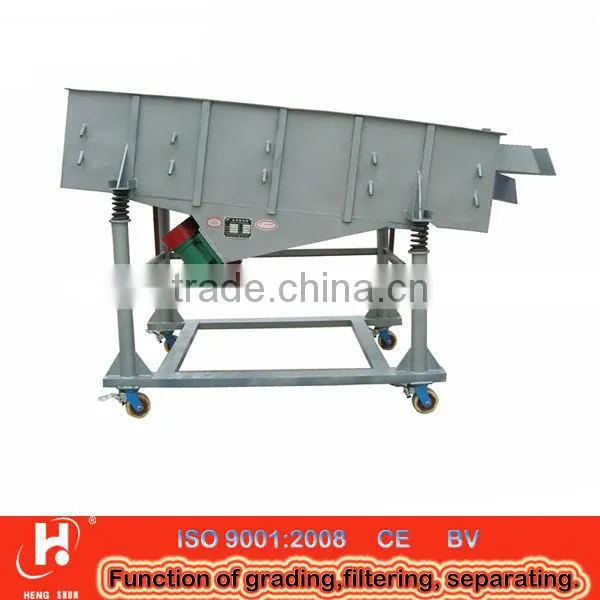

Machine pictures show,
Hengyu company have many skilled workers and professional technology team to provide customers with
prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulatedperiod. Waiting for your inquiry.
Before selecting the right model, you can inform us the following information:
1. Material to be processed ?
2 .Granule size of the materials(Mesh size) ?
3. Moisture content, density ?
4. Granule size proportion if possible to get, the number of lays ?
5. Capacity (tons or kg per hour ) ?
6. Local power supply (voltage and frequency) ?
Special customization is accepted, contact us Now!
