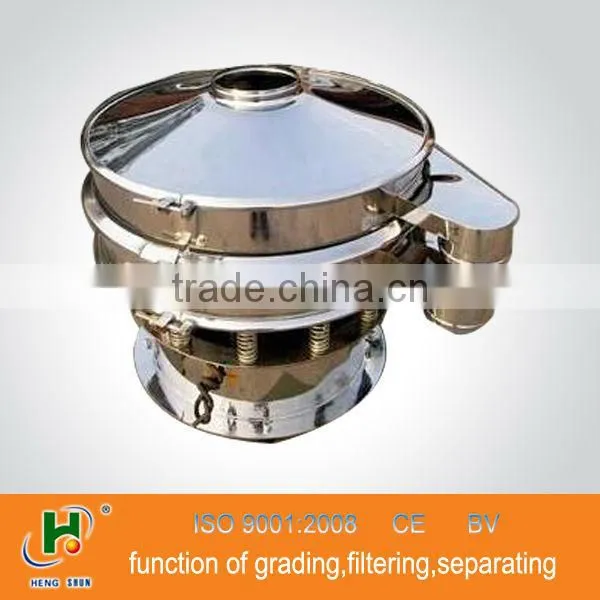

Help CenterIndustrial Round Vibrating Powder Sifter With Dust Cover
Related Products
-
SUS304 Round Vibratory Separators for WheatmealUS$ 1,000 - 6,500MOQ: 1 Set -
HY1000mm Round Granule SeparatorUS$ 1,000 - 6,500MOQ: 1 Set
-
2013 Particle Size Grading Rotary Vibratory SievesUS$ 1,000 - 6,500MOQ: 1 Set
-
China One Layer Linear Type Powder Vibration SieveUS$ 1,000 - 7,500MOQ: 1 Set
-
Low Consumption HY800 Vibrating Sifter MachineUS$ 500 - 5,600MOQ: 1 Set
Specifications
1.Powder sifter machinery2.Stainless steel 304 material
3.Green product with dust cover
4.ISO9001:2008 & CEcertificate
Welcome you to check our page, For get more information of our
Vibrating Powder Sifter

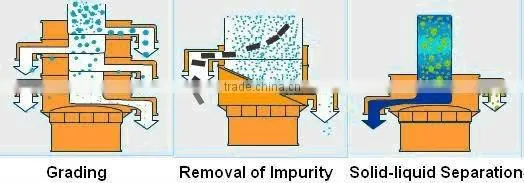

Product's Function
1. Grading
The Multi—layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Remove the impurity
The round powder sifter can quickly separate a few oversize or undersized particles from a quantity of materials.
3. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi—layer type into different grade materials.
Product features
1. All- closed design, no dust pollution.
2. Any particle, powder, slurry can be filtered screening
3. Special screen design, easy to change; long screen life, easy to clean.
4. Outlet can be adjustable in the range of 360 °, which is convenient to arrange.
5. IP55 protection level motor and higher or lubrication free motor as request.
6. Can be connected with soft connection, it is convenient for the production line operation.
Technical Parameter
|
Model |
Diameter |
Screen surface |
Screen opening |
Power |
Deck |
|
Diameter |
Area |
|||||
(mm) |
(mm) |
(m2) |
(kw) |
|||
HY-400 |
400 |
360 |
0.1017 |
5-500mesh |
0.18 |
1-4 |
HY-600 |
600 |
560 |
0.2461 |
0.25-0.55 |
1-4 |
|
HY-800 |
800 |
760 |
0.4534 |
0.55-0.75 |
1-4 |
|
HY-1000 |
1000 |
930 |
0.6789 |
0.75-1.5 |
1-4 |
|
HY-1200 |
1200 |
1130 |
1.0023 |
1.10-1.75 |
1-4 |
|
HY-1500 |
1500 |
1430 |
1.6052 |
1.50-2.20 |
1-4 |
|
HY-1800 |
1800 |
1730 |
2.3494 |
2.20-3.0 |
1-4 |
|
Simple Structure
Quality assurance
How to choose the suitable model?
Please provide the detailed information as follows, so that we can supply you the suitable product:
1. Processing raw materials: name, particle size?
2. Handling capacity: eg: Kg/hour?
3. Mesh size: eg: mesh or mm?
4. Materials of machine: carbon steel, parts contact with material are stainless steel or full stainless steel?
Your special customization is accepted; choose us, good sieving result for you!
