Mineral Industrial Bucket Elevators for Cement

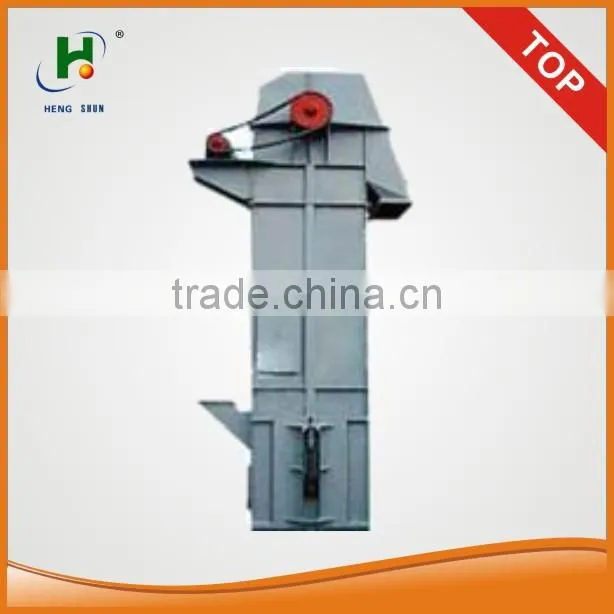

Mineral Industrial Bucket Elevators for Cement photo-1
US$ 999 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Bucket Conveyor
Material:
Other, mineral industrial bucket elevators for cement
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Bucket Conveyor
Material Other, mineral industrial bucket elevators for cement
Material Feature Heat Resistant
Structure Conveyor System
Load Capacity vary from diffrent models
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number TD
Voltage 220V,380,415V
Power(W) 3-22kw
Dimension(L*W*H) vary from different models
Certification ISO,CE, ISO9001:2008
After-sales Service Provided Engineers available to service machinery overseas

mineral industrial bucket elevators for cement



RELATED PRODUCT

mineral industrial bucket elevators for cement

mineral industrial bucket elevators for cement mineral industrial bucket elevators for cement mineral industrial bucket elevators for cement mineral industrial bucket elevators for cement





PRODUCT INTRODUACTION

mineral industrial bucket elevators for cement

mineral industrial bucket elevators for cement is made up of a series of hopper fixed by uniform traction in unprovoked, materials be conveyed in vertical state. mineral bucket elevator with throughput, and enhance the high degree of high, stable and reliable operation, long life and other significant advantages, the equipment is suitable for conveying powder, granular and non-small-block mill and grinding of small materials, such as: coal, cement, stones, sand, clay, ore and so on. Our company can design and manufacture special models based on your needs.

Type

TD160

TD250

TD315

TD400

hopper type

Q

H

Zd

Sd

Q

H

Zd

Sd

Q

H

Zd

Sd

Q

H

Zd

Sd

throughput(m3)

5

10

10

16

12

22

23

35

17

30

25

40

24

46

41

66

hopper width(mm)

160

250

315

400

hopper capacity(L)

1

1

1

2

1

2

3

5

2

4

4

6

3

6

5.9

9

hopper distance(mm)

280

350

360

450

400

500

480

560

chain width(mm)

200

300

400

500

hopper speed(m/s)

1.4

1.6

1.6

1.8

max block of material(mm)

25

35

45

55





FEATURES

mineral industrial bucket elevators for cement

1. Heat resistant up to 250° Celsius
2. Homogeneous conveyed material flow with minimal spillage thanks to close bucket arrangement
3. Simple, reliable bucket fixing for maximum lifespan
4. Forged chains with greased labyrinth seal and maximum chain link surface pressure of 30N/mm2
5. Silo and mill feeding
6. Abrasive, hot, coarse and fine material

5. mineral industrial bucket elevators for cement





APPLICATION

mineral industrial bucket elevators for cement
1.Metallic and Non-Metallic ores (Bauxite ,Coal, Sand ,Gravel Cement,Gypsum,Limestone )
2.Food products (Sugar,Flour,Coffee,Salt )
3.Chemical Processing products (Fertilizers,Phosphates,Agricultural Lime,Soda Ash)
4.Pulp and Paper products (Wood Chips )





WORKING PRINCIPLE

mineral industrial bucket elevators for cement

industry bucket elevator is composed of machine head, main frame,Maintenance cylinder,Ventilators,dustpan,dustpan belt and machine base.
The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.





PICTURE SHOW

mineral industrial bucket elevators for cement

mineral bucket elevator

mineral industrial bucket elevators for cement

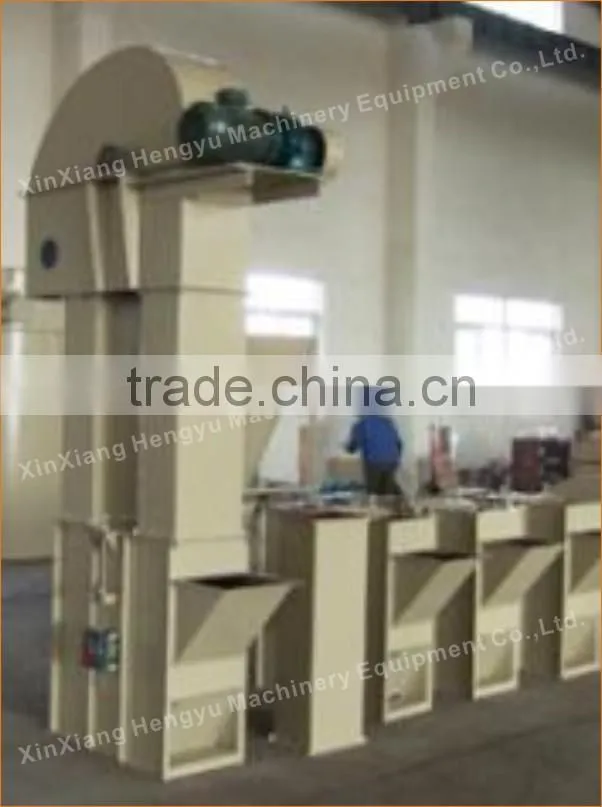

part of bucket elevator for cement mineral industrial bucket elevators for cement

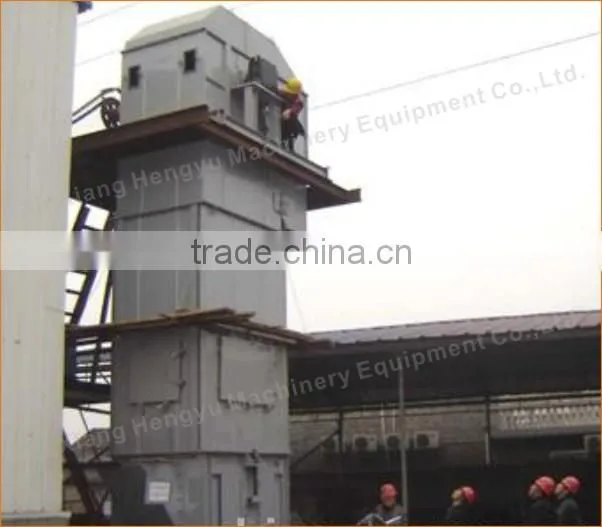

mining industry bucket elevator in practice

mineral industrial bucket elevators for cement



To partner with a supplier who’s recognized domestically and abroad for offering quality products at reasonable prices and timely deliveries, contact us today.



For more detail, please Contact us !

mineral industrial bucket elevators for cement
